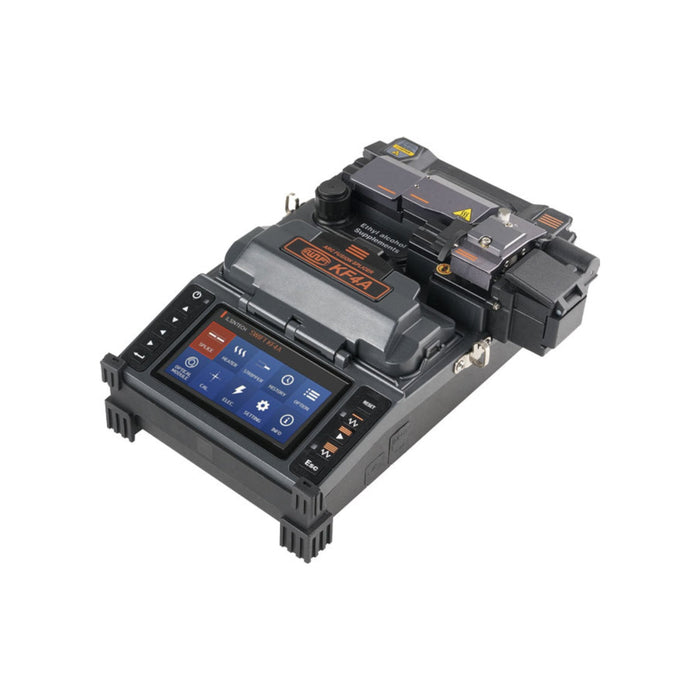

    UCL Swift KF4A Active Cladding Alignment, All-In-One Fusion Splicer

    KF4A by UCL Swift
    Sold out
    $5,500.00 - $5,500.00
    $5,500.00
    $5,500.00 - $5,500.00
    $5,500.00
    Extend Product Protection

    UCL Swift KF4A is the highly advanced and accurate ACTIVE cladding alignment fusion splicer, which has been designed to perform the major 5 multifunctional features systematically : stripping, cleaning, cleaving, splicing and sleeving. (ALLINONE) The UCL Swift KF4A is best fit for fusion splicing and fusion Splice-On Connector(SOC) of FTTx network applications, which eliminates fatal issues with conventional mechanical connectors.(low quality, weak durability and high maintenance cost). UCL Swift KF4A + fusion Splice-On-Connector gives our customer the best ROI.


    Product Features:

    • No scratches from heated stripping
    • Stripping time : 1.5sec
    • Over 5kg/f Tensile Strength of fiber after stripping
    • One-touch pump
    • Easy to refill cleaning alcohol
    • Single-action cleaving
    • Fiber chip collector attached


    Product Specifications:
    • Fiber alignment IPAAS Active V-Groove Alignment
    • Applicable type of fibers 0.25mm, 0.9mm, 2.0mm, 3.0mm Indoor cable
    • Fiber count Single fiber
    • Applicable fiber dimensions Cladding diameter : 125µm, Coating diameter : 150µm~3mm
    • Fiber setting and cleaved length 5mm to 16mm
    • Splicing modes Splice mode: 300, Heater mode: 100
    • Typical Splice Loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
    • Return loss > 60dB
    • Splicing time Typical 7sec (with SM)
    • Splice loss estimate Available
    • Sleeve heating time Typical 13sec with IS-60 mode, IS-20 sleeve
    • Applicable protection sleeve 40mm, 60mm and Micro sleeve
    • Storage of splice result The last 5000 results to be stored in the internal memory.
    • Tension test 1.96N to 2.25N
    • Operating condition Altitude: 0~5000 m above sea level, Temperature: 14°F to 122°F (-10°C to +50°C), Humidity: 0~95%, Wind: 15 m/s, non-condensing, dust proof, water proof, shock proof
    • Storage condition Temperature: -40°F to 176 (-40°C to +80°C), Humidity: 0~95%
    • Dimension 132(W)ｘ212(L)ｘ73(H)mm
    • Weight 1.5kg(Including battery)
    • Viewing method and display 2AXIS Two CMOS cameras and 4.3-inch color LCD monitor
    • Fiber view and magnification X/Y : 130X, Max : 260X
    • Power supply DC Lithium polymer battery(DC 14.8V, 1650mAhｘ2), 100 ~ 240V AC Adapter
    • Number of splice cycles with battery Typical 200 cycles
    • Electrode life More than 3000 times
    • Terminals USB


    Product Includes:


    (1) Fusion Splicer

    (1) AC Charger

    (1) Spare Electrode (pair)

    (1) Cooling Tray (40mm)

    (1) User Guide CD

    (1) Carrying Case

    (1) Battery

    (1) Screw Driver
