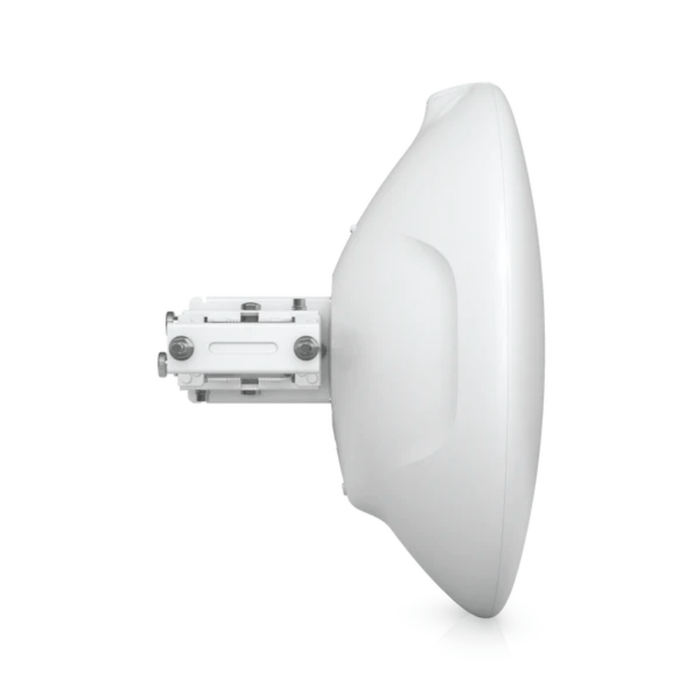

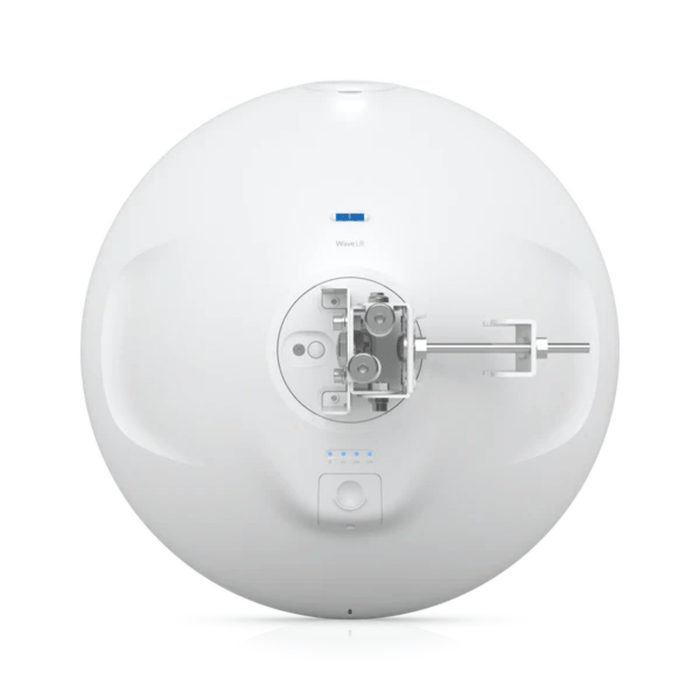

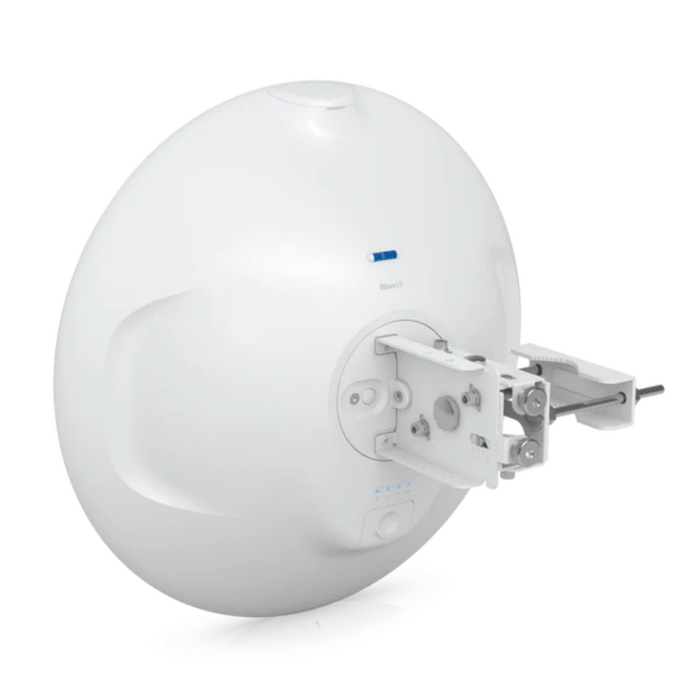

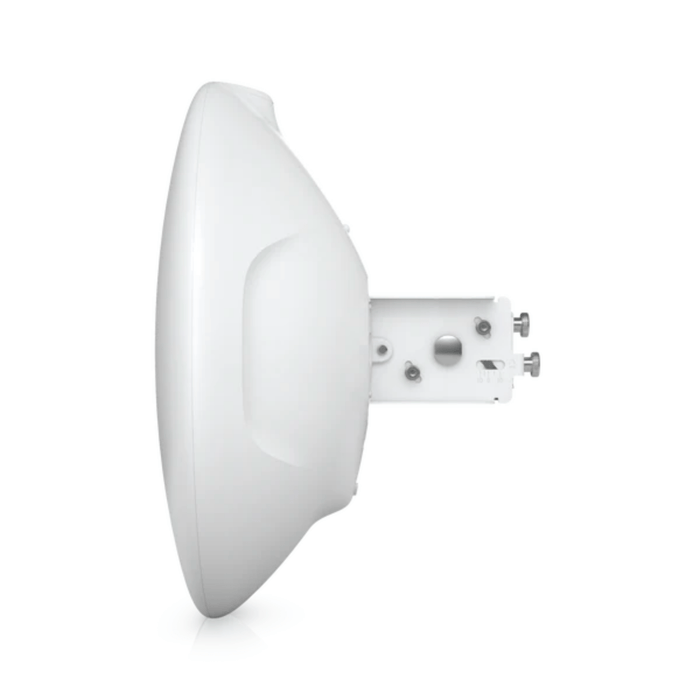

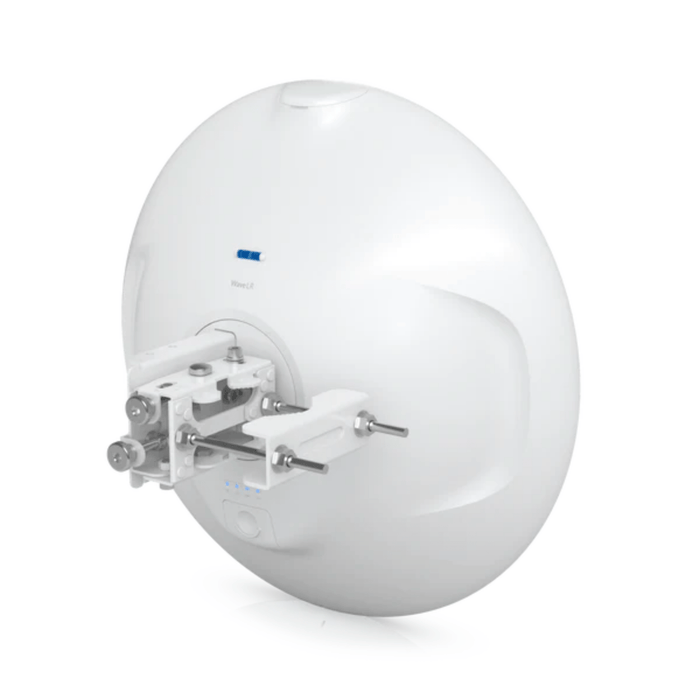

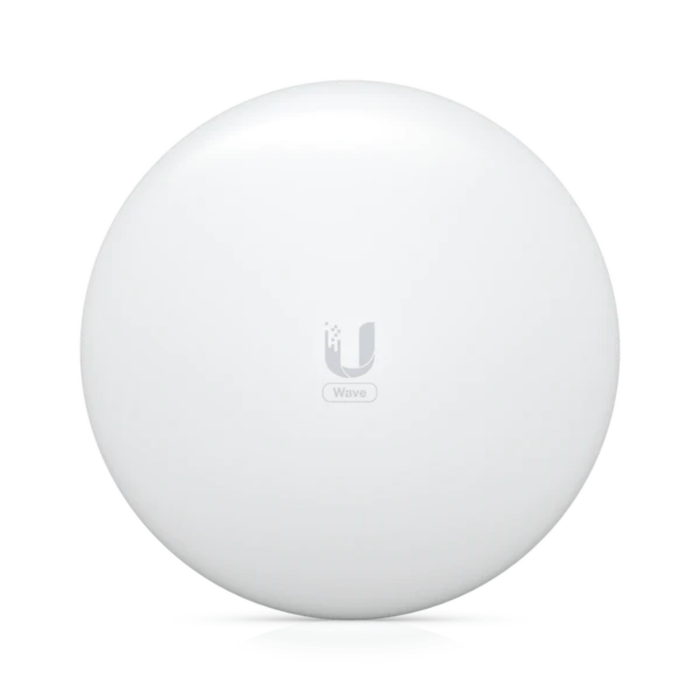

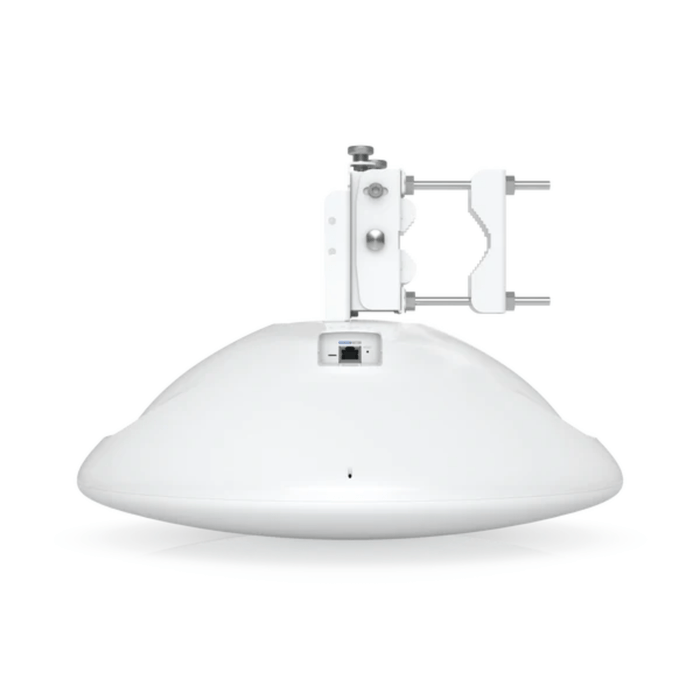

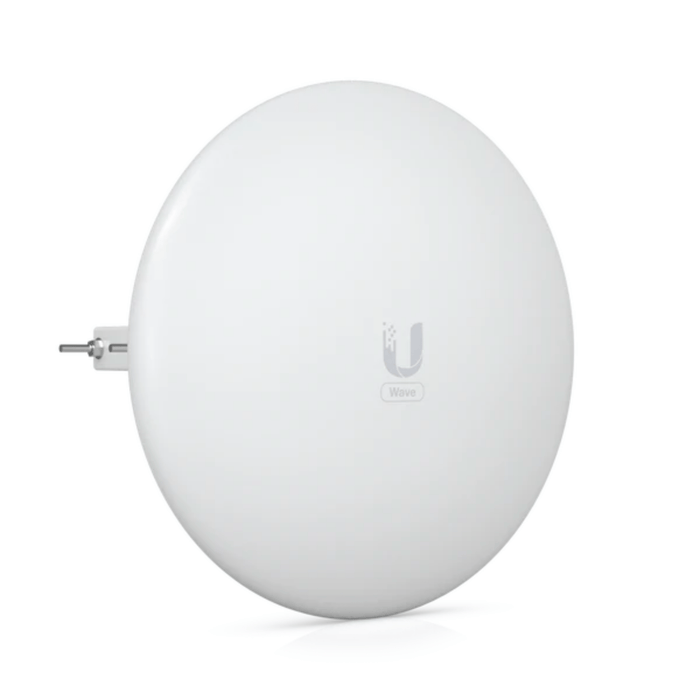

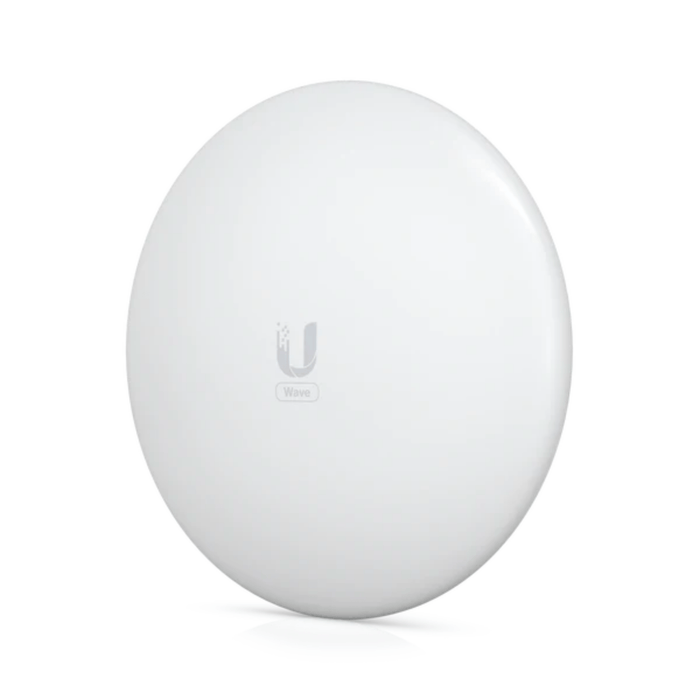

    Ubiquiti Wave Long-Range US Version [Wave-LR-US]

    Wave-LR-US by Ubiquiti
    Ubiquiti Wave-LR-US Datasheet
    $284.95 - $284.95
    $284.95
    $284.95 - $284.95
    $284.95
    Extend Product Protection

    60 GHz PtMP station powered by Wave Technology.

    Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Long-Range is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.

    Product Features:
    • 5 GHz backup radio
    • Link range: up to 8 km
    • Router mode support
    • Integrated GPS antenna
    • Link planning support via ISP Design Center
    Managed with UISP application: Version 1.4.5 and later


    Product Specifications:
    Mechanical

    • Dimensions: Ø424.4 x 166.2 mm (Ø16.7 x 6.5")
    • Weight:
      • Without mount: 2.59 kg (5.7 lb)
      • With mount: 3.79 kg (8.4 lb)
    • Enclosure material: UV stabilized plastic
    • Mount material: Galvanized steel
    • Pole mount diameter: 25 to 76.2 mm (1 to 3") on pipe outer diameter
    • Wind loading: 286 N at 200 km/h (64.3 lbf at 125 mph)
    • Weatherproofing: IPX6

    Hardware

    • Processor: Dual ARM® Cortex®-A53 cores at 1 GHz
    • Memory: DDR3L 512 MB
    • Networking interface: (1) GbE RJ45 port
    • Max. power consumption: 18W
    • Power method
      • 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
      • 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
    • Power supply:
    • 48V DC, 0.65A gigabit PoE adapter (included)
    • Can be powered by a UISP Router or UISP Switch
    • GPS: Yes
    • Button: Factory reset
    • LEDs: Power, Ethernet, GPS, link
    • Operating temperature: -40 to 60° C (-40 to 140° F)
    • Operating humidity: 5 to 95% noncondensing
    • CertificationsP: FCC, IC, CE

    Software

    • OS: airOS®
    • Operating mode: PtMP station
    • Ubiquiti specific features: Wave AI, discovery protocol
    • Services UISP, ping watchdog, NTP client, SNMP
    • Tools: Antenna alignment, discovery utility, ping, trace route, speed test
    • Network: Bridge/Router mode
    • Software management: Bluetooth management for easy setup over UISP app WEB UI
    • Minimum software requirements: Any modern web browser/iOS™ or Android™ based smartphone

    System

    • Total throughput: 2 Gbps (1 Gbps duplex)
    • Maximum range: 8+ km
