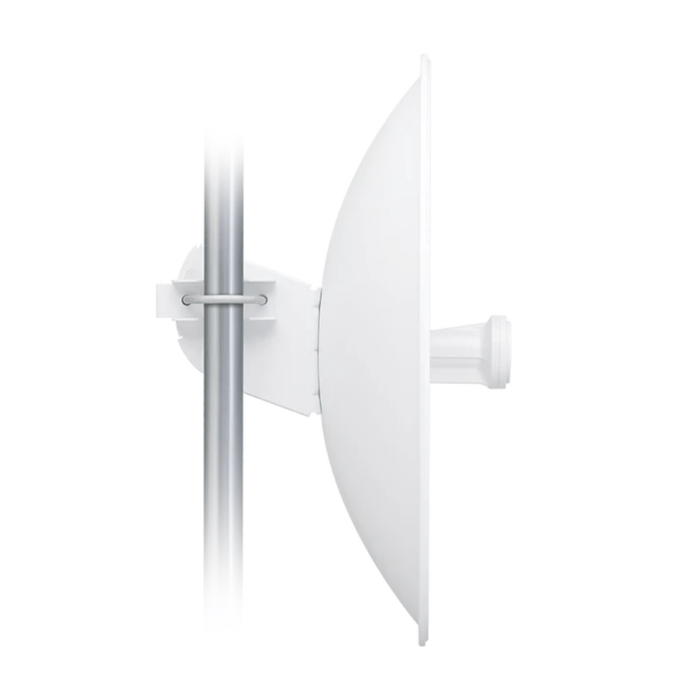

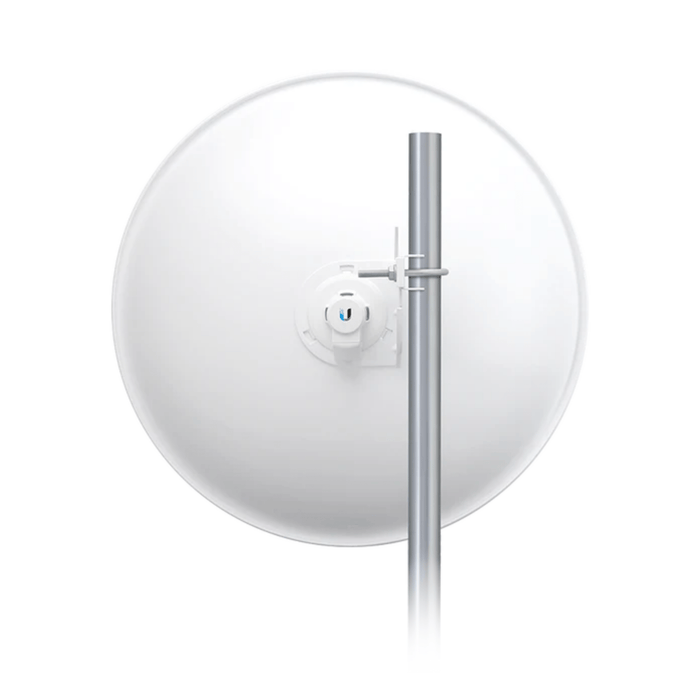

    Ubiquiti UISP airMAX PowerBeam AC 5GHz 27dBi 500mm Bridge (with radome) US 2-Pack (PBE-5AC-500-US)

    PBE-5AC-500-US 2-Pack by Ubiquiti
    Ubiquiti PBE-5AC-500-US 2-Pack Datasheet
    Sold out
    $318.00
    $318.00 - $318.00
    $318.00
    $279.95
    $279.95 - $279.95
    $279.95
    Extend Product Protection

    US and Canada version: operating frequency 5725-5850Mhz. International version with additional operating frequency within Mhz is also available, SKU# PBE-5AC-500-US


    Using airMAX 802.11ac technology, this kit supports up to 450+ Mbps throughput in a small form factor. It launches with PtP functionality, however client mode feature can be added with a firmware upgrade from Ubiquiti. The radio includes a protective radome cover to shield it from the environmental elements.


    Product Specifications:
    • Processor: Atheros MIPS 74Kc, 720MHz
    • Memory: 128MB DDR2, 8 MB flash
    • Networking interface: (1) 10/100/1000 Ethernet port
    • Operating Frequency: 5725-5850Mhz
    • Channel size: 10/20/30/40/50/60/80MHz (PtP) / 10/20/30/40MHz (PtMP)
    • Protocol: 802.11AC
    • Polarization: Dual linear
    • Gain: 27dBi
    • ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
    • Operating Temperature -40 to 70° C (-40 to 158° F)
    • Operating Humidity 5 to 95% Non-Condensing
    • Power Supply 24V, 0.5A Gigabit PoE
    • Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)• Max. Power Consumption 8.5W
    Product Includes:

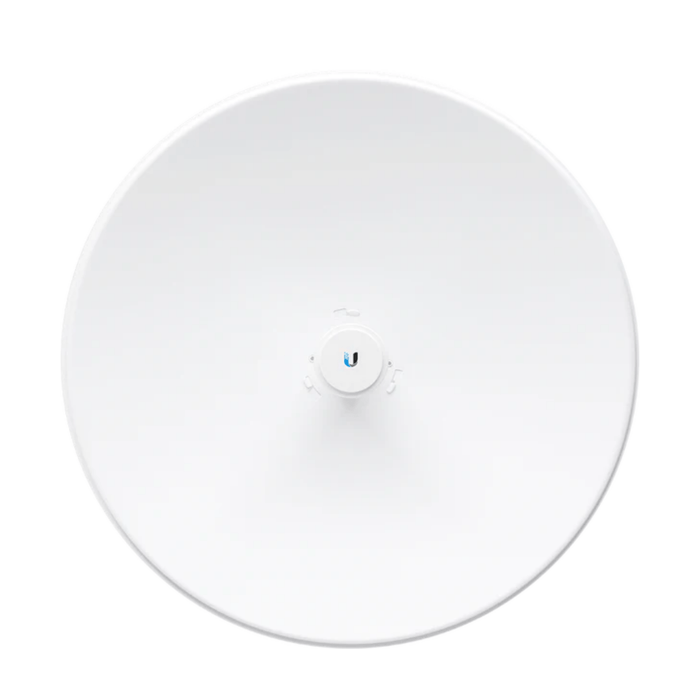

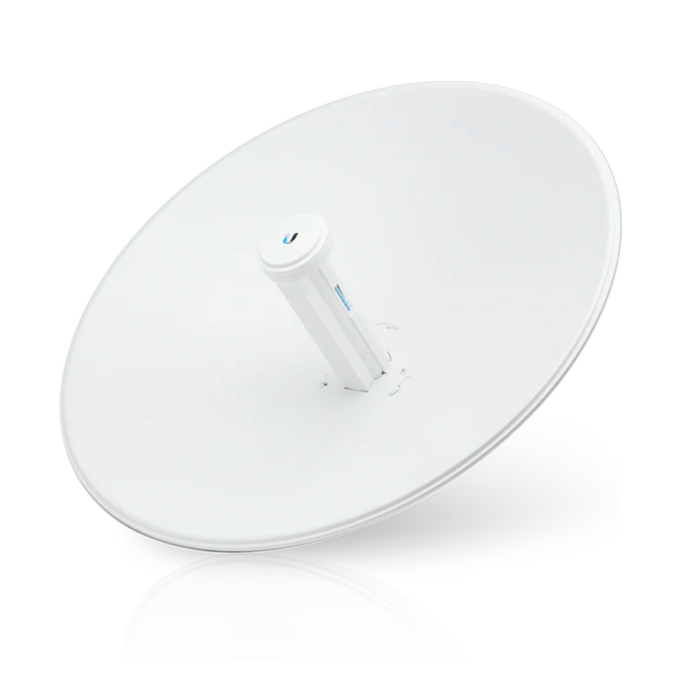

    (2) Dish reflector (500mm)

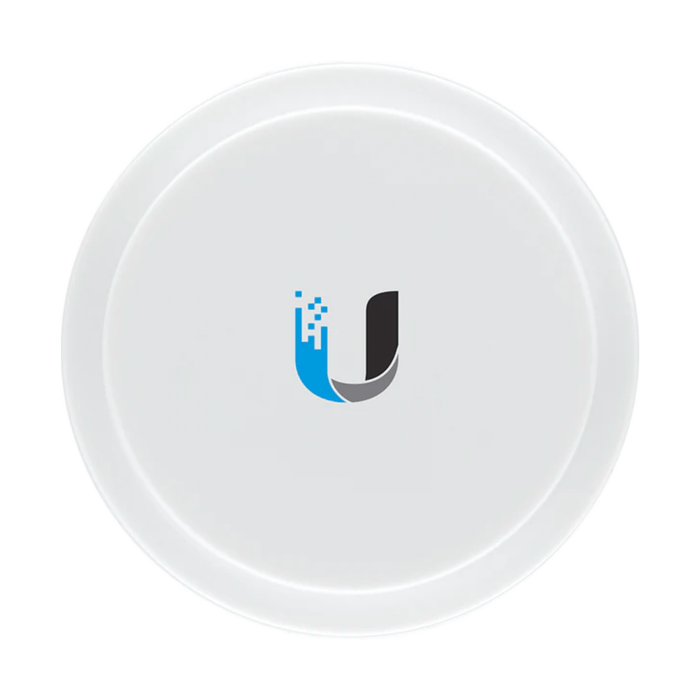

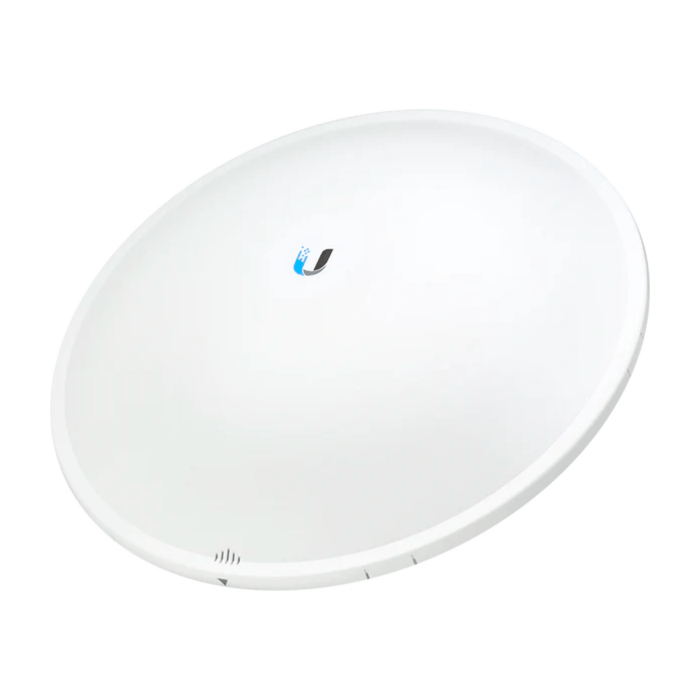

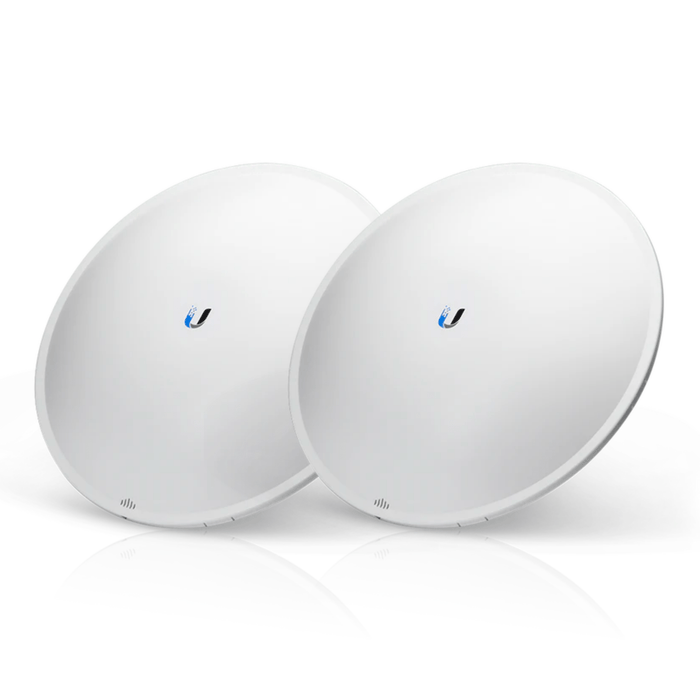

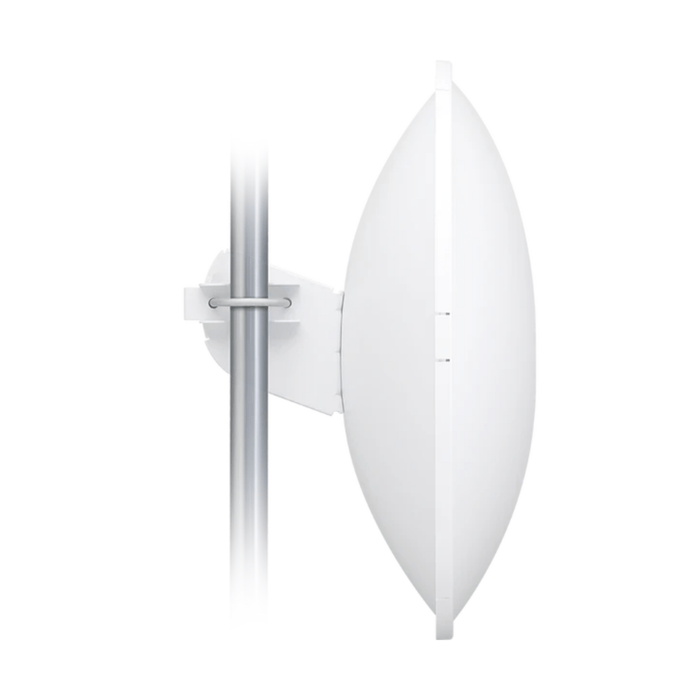

    (2) Radome

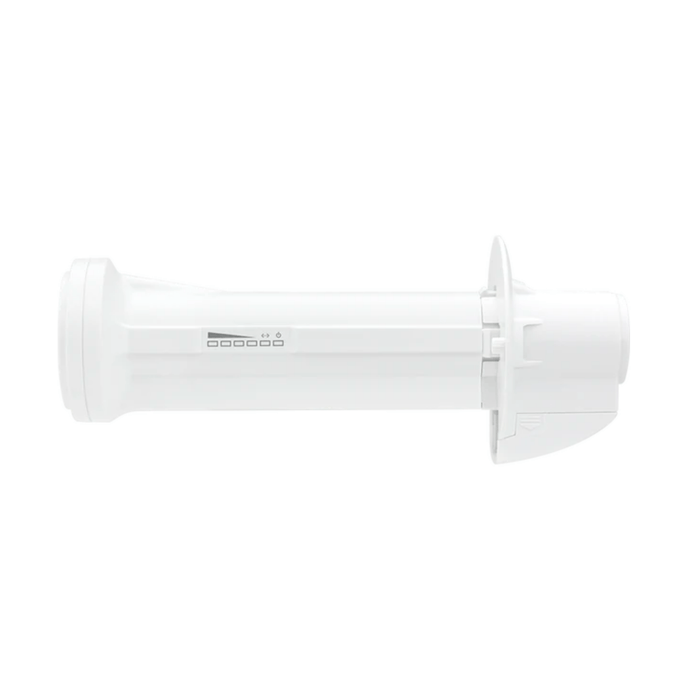

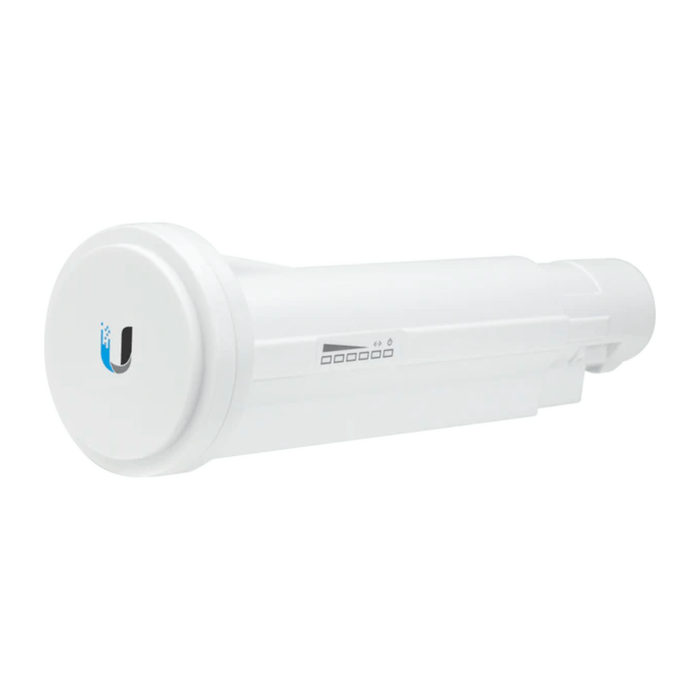

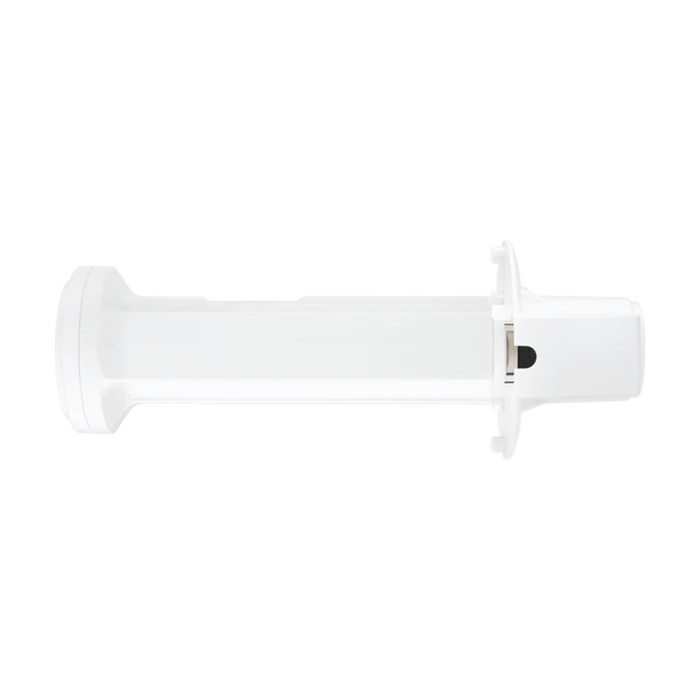

    (2) Antenna feed

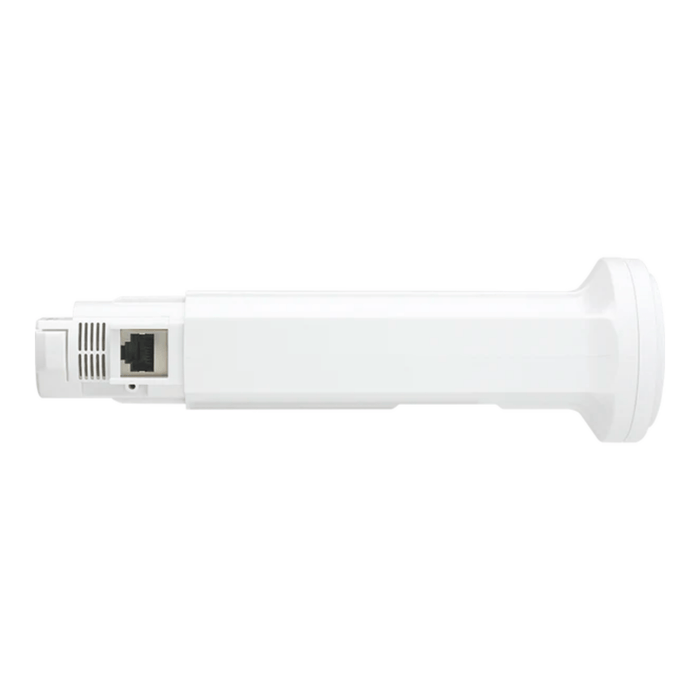

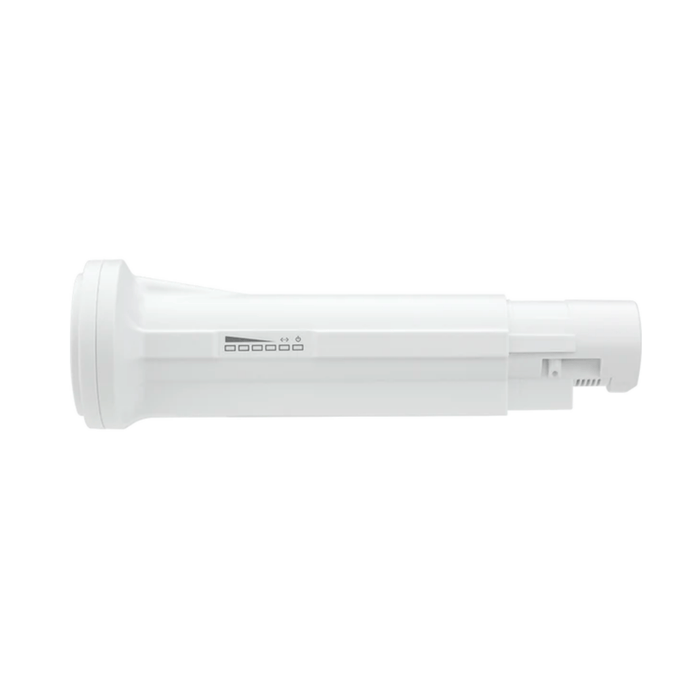

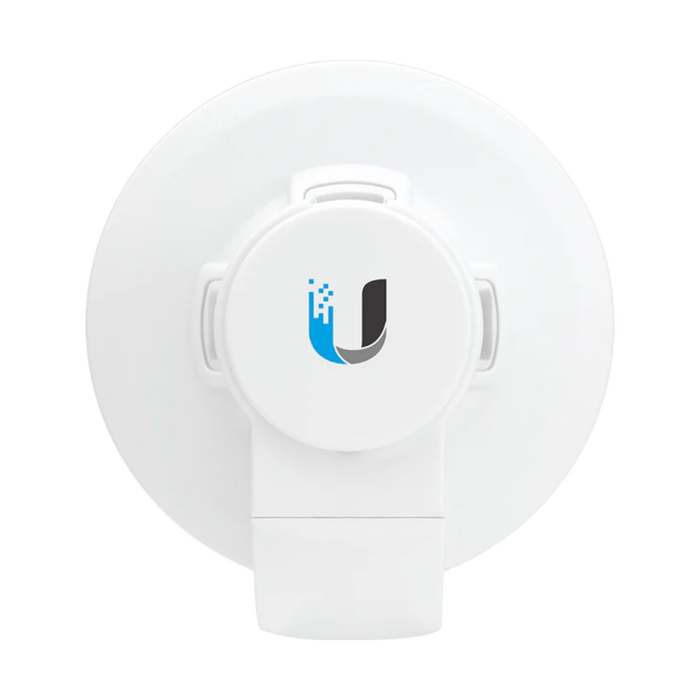

    (2) Rear housing
    (2) Dish bracket

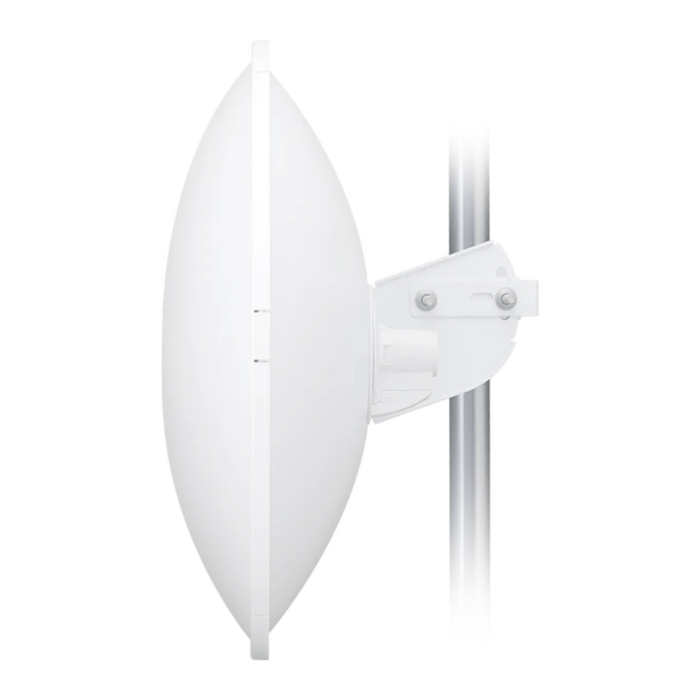

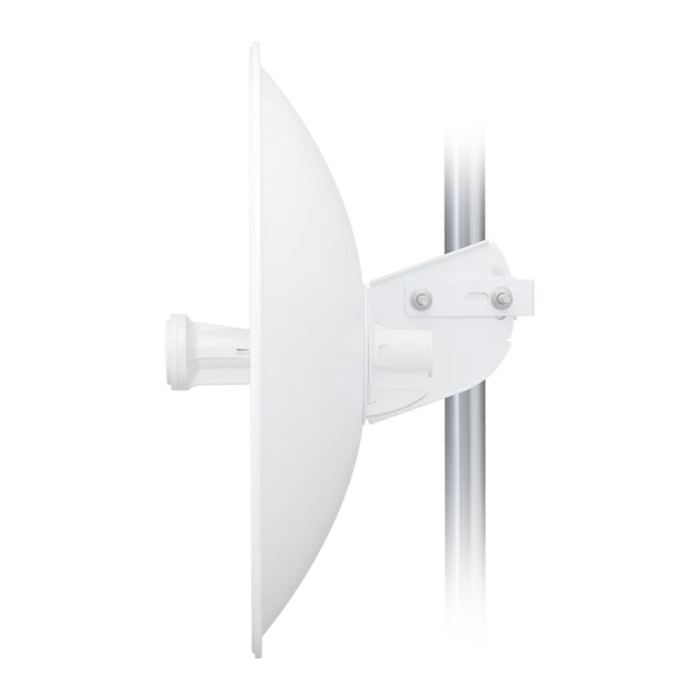

    (2) Pole clamp
    (2) U-Bolt
    (4) M8 flange nuts
    (2) Gigabit PoE Adapter (24V, 0.5A)
    (2) Power Cord
    (2) Quick Start Guide
