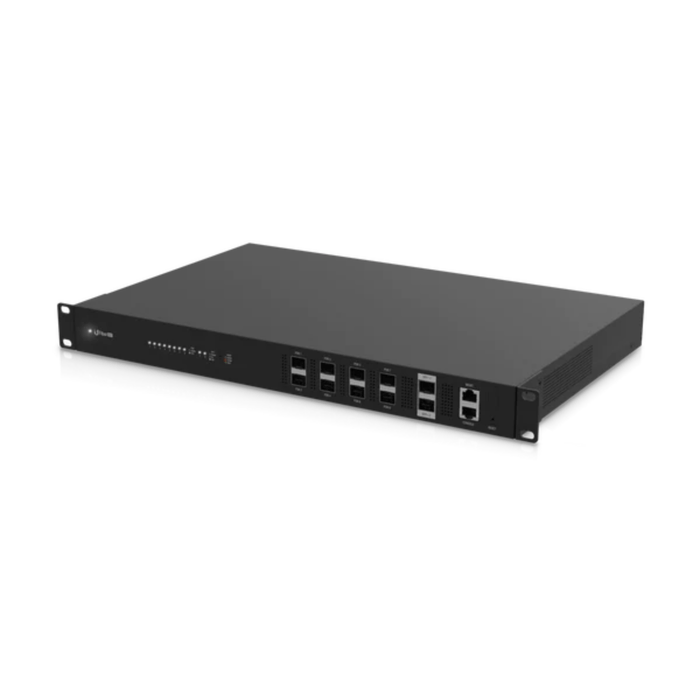

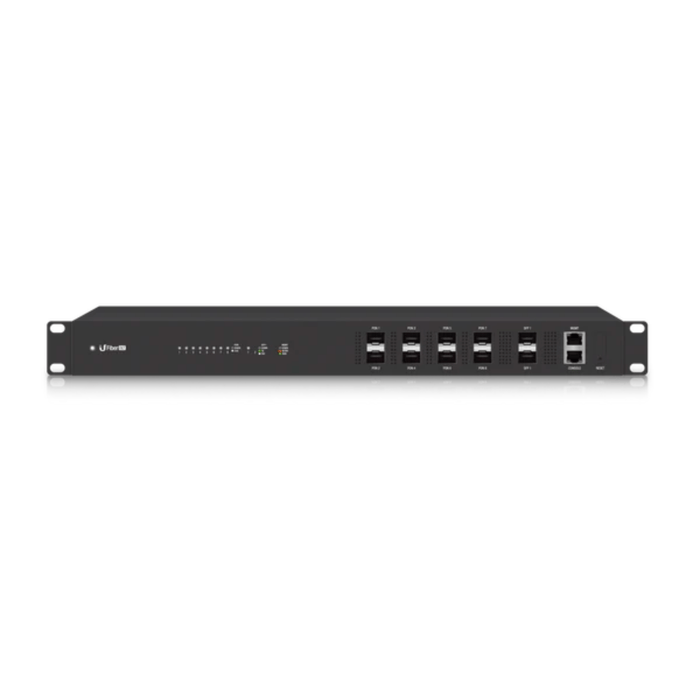

Ubiquiti UFiber 8-Port GPON Optical Line Terminal w/ 2 SFP+ Ports

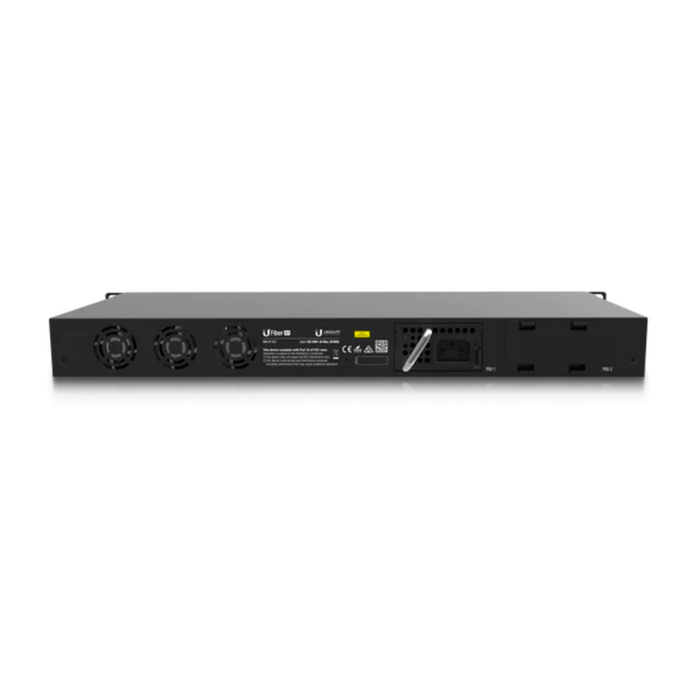

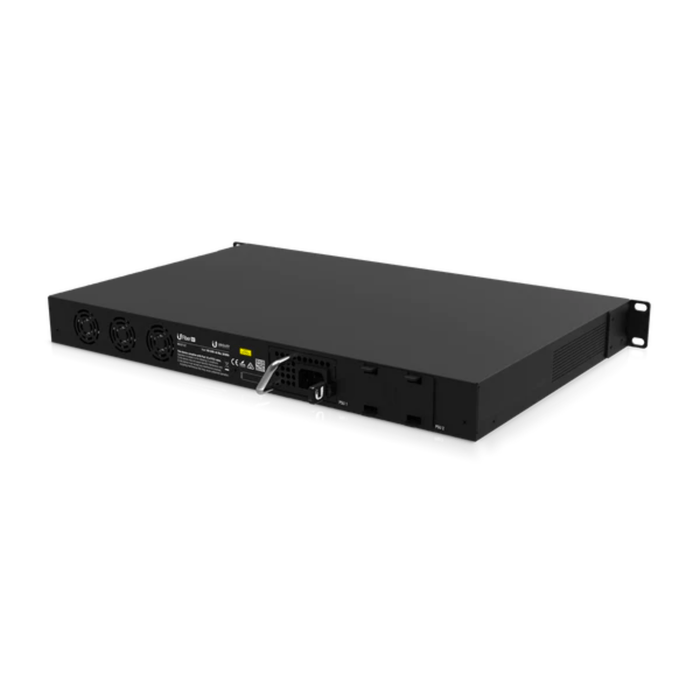

Ubiquiti Networks UFiber OLT has (8) GPON ports and can support up to 1024 concurrent clients with 20km physical links. Two SFP+ ports provide 10G uplink connectivity. UF-OLT features two modular power adapter bays for flexible power options. One DC/DC power module is includes, and the second power bay houses a backup power module, or an AC/DC module for AC powering.

Product Specifications:

• Dimensions: 442.4mm x 285.6mm x 43.7mm (17.42" x 11.24" x 1.72")
• Weight: Without Mount Brackets: 4.40kg (9.7lbs), With Mount Brackets: 4.495kg (9.1lbs)
• Networking Interfaces: (8) GPON OLT SFP, (2) 1G/10G SFP+
• Concurrent Clients: 1024 Registered ONUs/ONTs (128 per GPON Port)
• Management Interfaces: (1) Ethernet Out-of-Band Management, (1) Ethernet In-Band Management, (1) RJ45 Serial Console Port, (1) Bluetooth
• GPON Speeds: 2.488Gbps Upstream (TX), 1.244Gbps Downstream (RX)
• Operating Wavelengths: 1490nm TX, 1310nm RX
• Normal Optical Power Range: TX (Class B+): 1.5dBm to 5dBm, RX: -8dBm to -28dBm
• Range: Physical Reach: 20km, Logical Reach: 60km, Max. Differential Fiber Distance: 20km (B+) / 40km (C+)
• Power Supply: (2) DC/DC or AC/DC PSU Module Bays, (1) 54V 150W DC/DC PSU Module Included
• Max. Power Consumption: 40W (Excluding SFP modules)
• Operating Mode: OLT 2/3 Ethernet Switch and GPON Core
• Advanced QoS: Support 8 Priority Queues per User Port and Traffic Classification
• Processor Specs: MIPS 1004kc 880MHz Dual-Core
• Memory Information: 256MB DDR3, 256MB NAND
• Operating Temperature: 14°F to 113°F (-10°C to 45°C)
• Operating Humidity: 10 to 90% non-condensing
• Certifications: CE, FCC, IC

(1) Ubiquiti UFiber OLT

(2) Mounting Brackets

(8) Bracket Screws

(4) Mounting Screws

(4) Cage Nuts

(1) SC/UPC GPON SFP Transceiver (UF-GP-B+)

(1) Power Cord

(4) Rubber Feet

(1) Quick Start Guide
