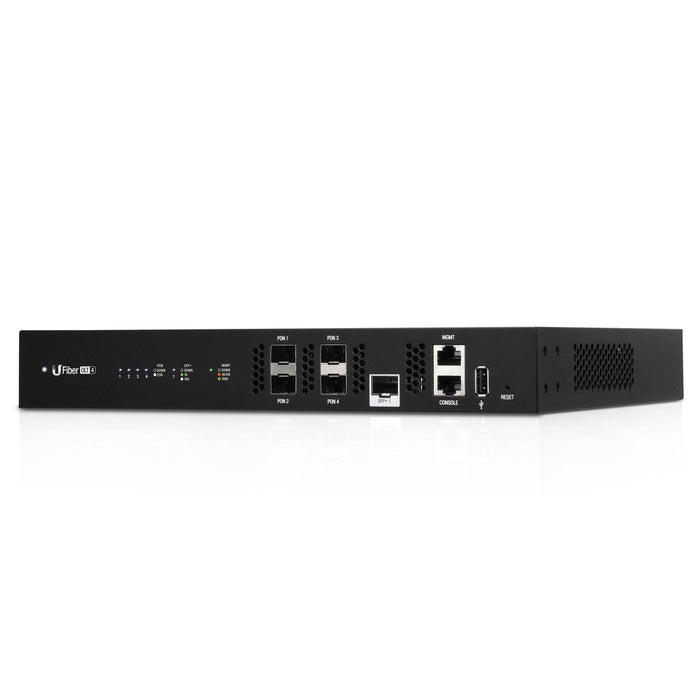

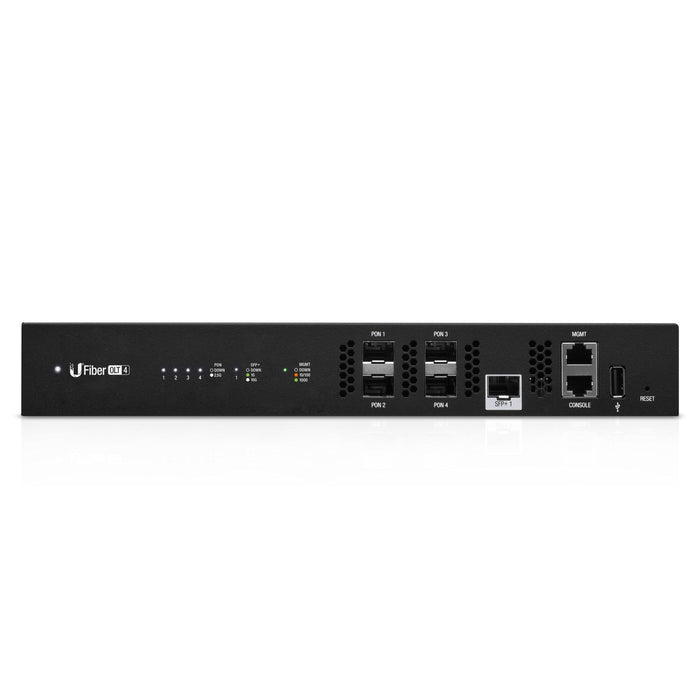

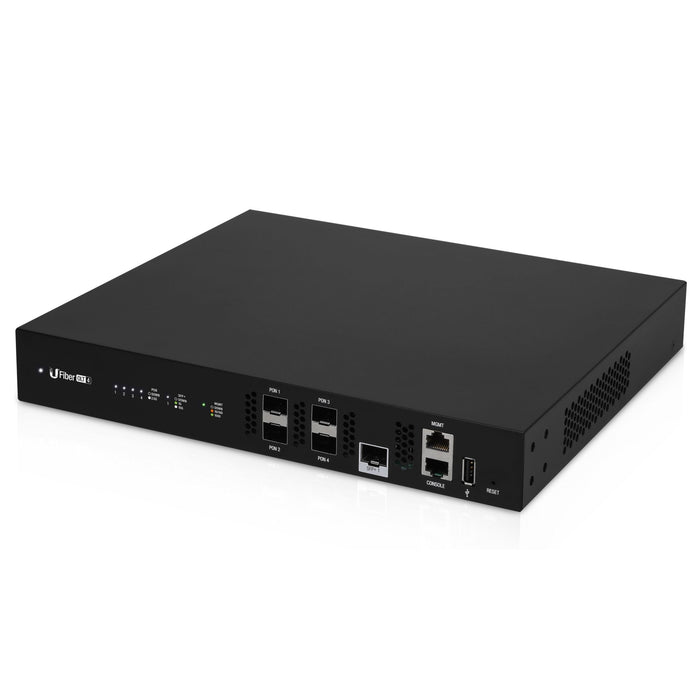

    Ubiquiti U-Fiber 4-Port GPON Optical Line Terminal OLT

    UF-OLT-4 by Ubiquiti
    Ubiquiti UF-OLT-4 Datasheet
    Sold out
    $1,189.00
    $1,189.00 - $1,189.00
    $1,189.00
    $799.95
    $799.95 - $799.95
    $799.95
    Extend Product Protection

    The Ubiquiti U-Fiber 4 Optical Line Terminal (OLT) offers internet and telecom service providers a cost‑effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488Gbps downstream and 1.244Gbps upstream. The Ubiquiti U-Fiber 4 OLT also boasts flexible layer 2/3 management features and one 1G/10G SFP+ Ethernet port.


    The Ubiquiti UFiber network is intelligently managed using the included UISP application. Ubiquiti UFiber devices consist of either the UFiber OLT or OLT-4 (deployed at the provider premises) and the UFiber Nano G, loco, or UF-WiFi clients, which function as ONU CPEs (Customer Premises Equipment).


    Product Features:

    • 4-Port GPON Optical Line Terminal
    • 4 Gigabit Passive Optical Network Ports
    • Supports up to 512 Clients (128 per PON Port)
    • Up to 2.488Gbps TX and 1.244Gbps RX
    • One 1G/10G SFP+ Ethernet Ports
    • Ethernet port for management
    • Flexible Layer 2/3 Management Features
    • Console serial port for management
    • 24V DC Input Option (Redundant or Stand-Alone)
    Product Specifications:
    • Dimensions: 299.80mm x 258.95mm x 42.55mm (11.80" x 10.19" x 1.68")
    • Weight: 1.93kg (4.25lb)
    • Weight with Mount Bracket: 2.13kg (4.70lbs)
    • Networking Interfaces:
        (4) GPON OLT SFP
        (1) 1G/10G SFP+
    • Concurrent Clients: 512 Registered ONUs/ONTs (128 per GPON Port)
    • Management Interfaces:
        (1) Ethernet for Out-of-Band Management
        (1) RJ45 Serial Console Port
    • GPON Speeds:
        2.488Gbps Upstream (TX)
        1.244Gbps Downstream (RX)
    • Operating Wavelengths:
        1490nm TX
        1310nm RX
    • Normal Optical Power Range:
        TX (Class B+): 1.5dBm to 5dBm
        RX: -28dBm to -8dBm
    • Range:
        Physical Reach: 20km
        Logical Reach: 60km
        Maximum Differential Fiber Distance: 20km (B+) /40 km (C+)

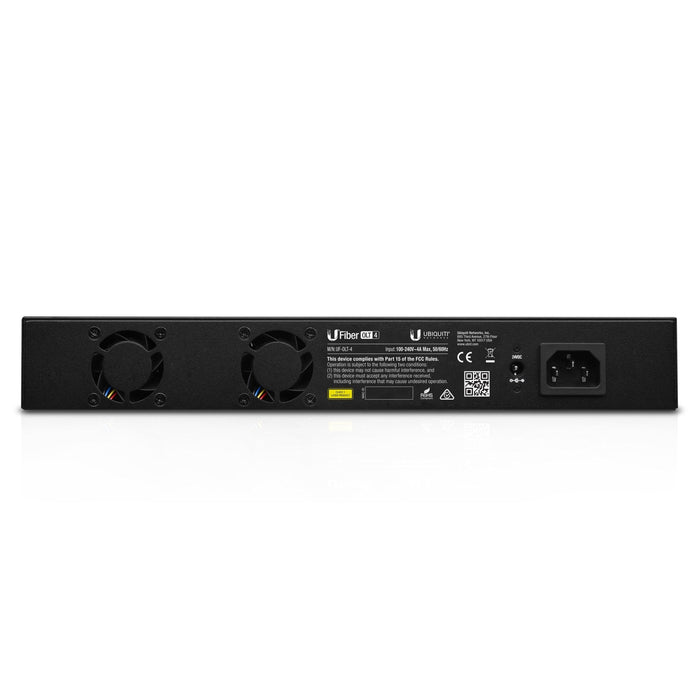

    • Power Method: 100-240VAC/50-60 Hz, Universal Input
    • Power Supply: AC/DC Internal 56W DC
    • Maximum Power Consumption: 35W (Excluding SFP Modules)
    • Operating Mode: OLT 2/3 Ethernet Switch and GPON Core
    • Advanced QoS: Supports 8 Priority Queues per User Port and Traffic Classification
    • Processor Specs: MIPS 1004kc, 880MHz Dual Core
    • Memory Information: 512MB DDR3, 512MB NAND
    • Operating Temperature: -10°C to 45°C (14°F to 113°F)
    • Operating Humidity: 10% to 90% Noncondensing
    • Certifications: CE, FCC, IC
    Product Includes:
    (1) Ubiquiti UFiber 4-Port GPON Optical Line Terminal OLT

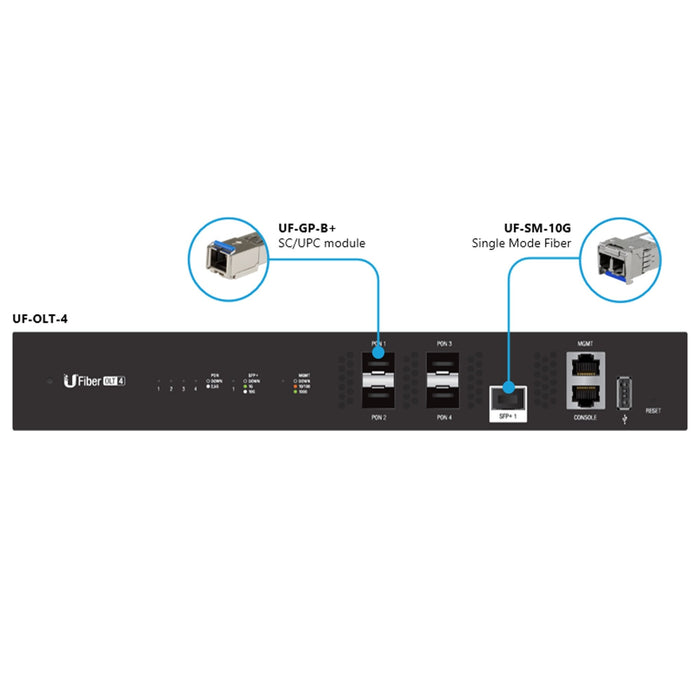

    (1) SC/UPC GPON SFP Transceiver (UF‑GP‑B+)

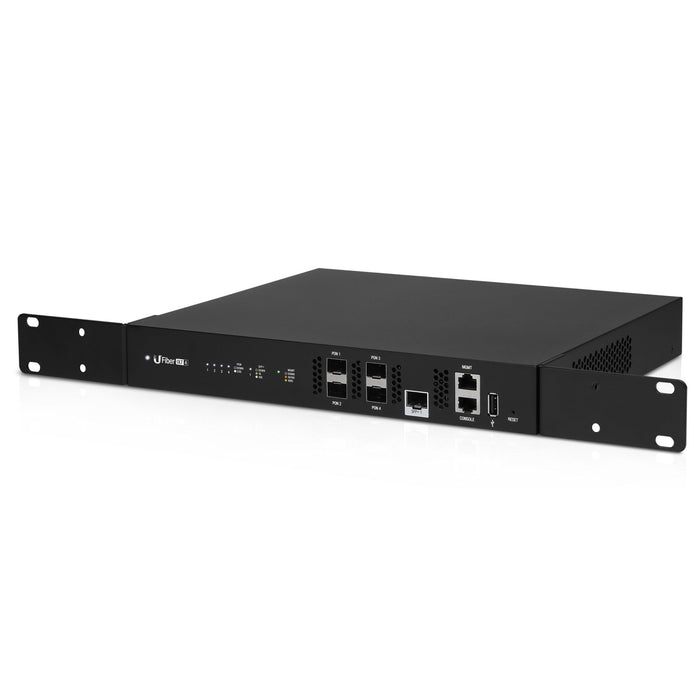

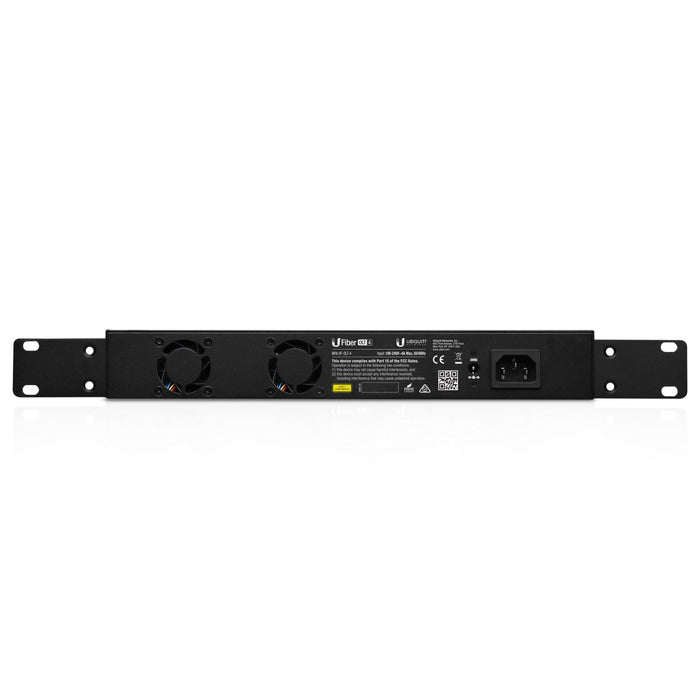

    (1) Mounting Brackets
    (8) Bracket Screws
    (4) Mounting Screws
    (4) Cage Nuts
    (1) Power Cord
    (4) Rubber Feet
