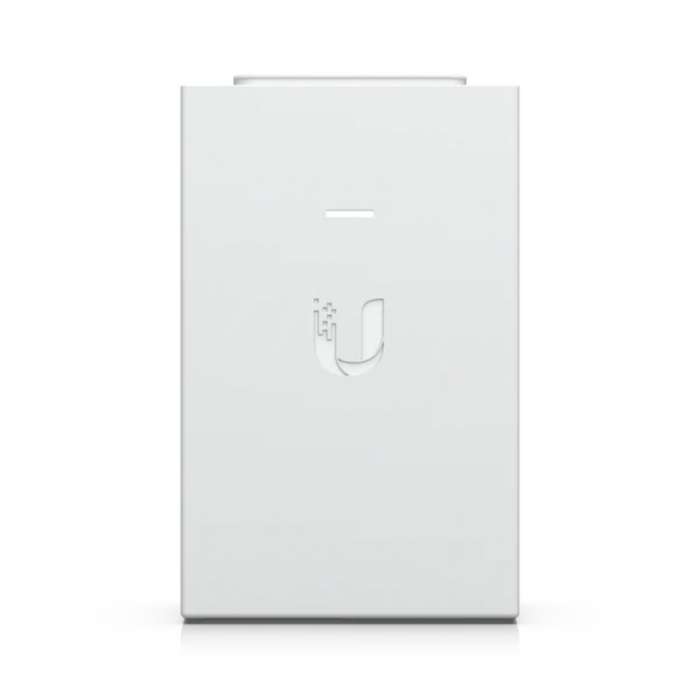

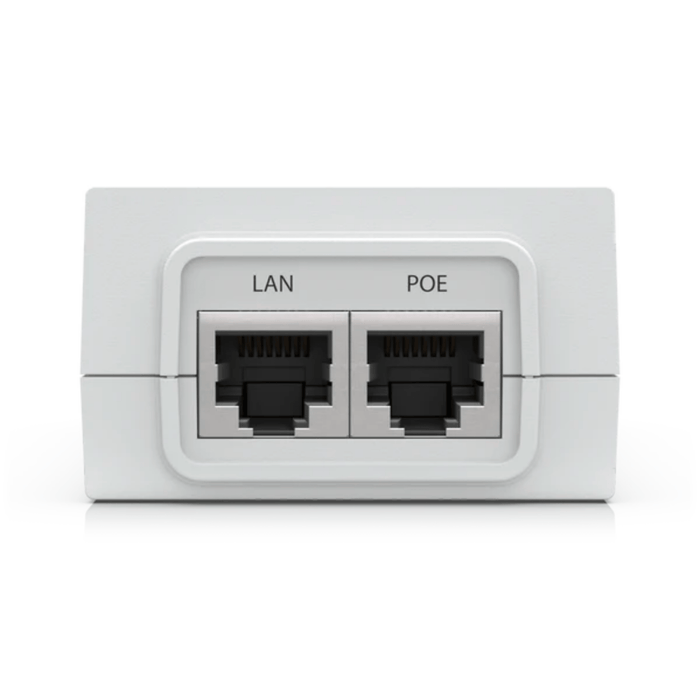

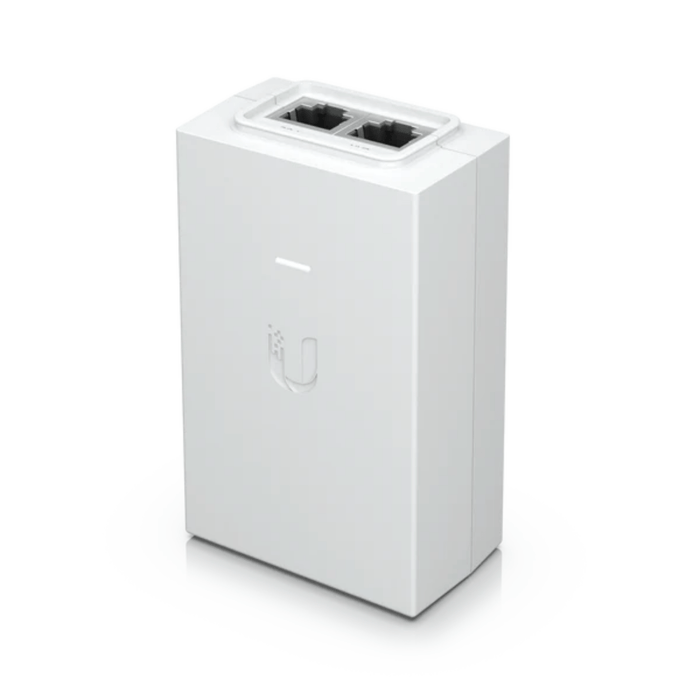

    Ubiquiti PoE Injector, 24VDC, 30W, Gbit [POE-24-30W-G-WH]

    POE-24-30W-G-WH by Ubiquiti
    Ubiquiti POE-24-30W-G-WH Datasheet
    $16.00 - $16.00
    $16.00
    $16.00 - $16.00
    $16.00
    Extend Product Protection
    Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
    • Surge protection
    • Clamping protection
    • Maximum surge discharge
    • Peak pulse current
    • AC cable with earth ground
    Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.

    Product Specifications:
    • Model: POE-24-30W-G-WH
    • Dimensions: 94 × 60 × 33mm (3.70 x 2.36 x 1.30")
    • Weight: 156 g (5.5 oz)
    • Output Voltage: 25VDC @ 1.25A
    • LAN Activity Indicator: No
    • Gigabit LAN Port: Yes
    • Remote Reset Capability: No
    • Reset Button: No
    • Rated Voltage: 100-240VAC @ 50/60Hz
    • Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
    • Inrush Current: <60A Peak @ 120VAC, <120A Peak @ 230VAC
    • Efficiency: 83+%
    • Output Ripple: 1% Max.
    • Switching Frequency: 65kHz
    • Line Regulation: ≤ 3%
    • Load Regulation: ≤ 5%
    • 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
    • 4-Pair Powering: -
    • Operating Temperature: 0 to 40° C (32 to 104° F)
    • Storage Temperature: -30 to 70° C (-22 to 158° F)
    • Operating Humidity: 35 to 95% Noncondensing
    • AC Connector: IEC-320 C6
    • Data IN / PoE: RJ45 Shielded Socket
    • Surge Protection: Difference and Common Mode
    • Clamping Protection: 11V Data, 60V Power
    • Max. Surge Discharge: 1500A (8/20 μs) Power
    • Peak Pulse Current: 36A (10/1000 μs) Data
    • Shunt Capacitance: <5 pF data
    • Response Time: <1 ns
    • Certifications: CE, FCC, IC, UL
