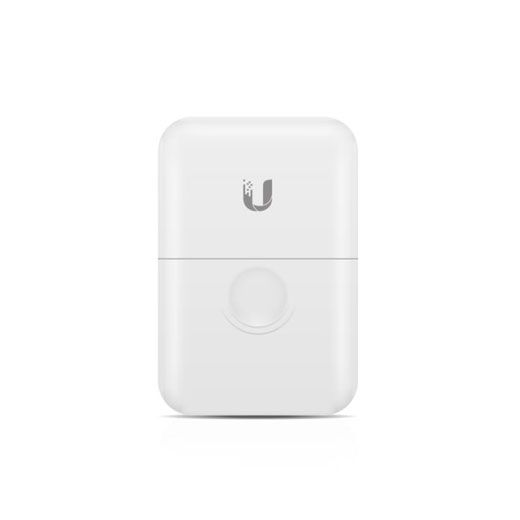

    Ubiquiti Ethernet Surge Protector Gen 2

    ETH-SP-G2 by Ubiquiti
    Ubiquiti ETH-SP-G2 Datasheet
    $12.50 - $12.50
    $12.50
    $12.50 - $12.50
    $12.50
    Extend Product Protection

    The Ethernet Surge Protector is a cost-effective solution for protecting sensitive, 3rd party Ethernet devices from damaging electrostatic discharges and surges. Since all Ubiquiti airMAX® devices already have robust ESD protection built in, adding the ETH-SP to the installation provides an additional layer of protection to the network. The ETH-SP is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.


    Product Features:

    • Compatible with Gigabit Networks
    • Additional ESD Protection
    • Plug and Play Installation
    Product Specifications:
    • Dimensions: 91 x 61 x 32.5mm (3.58 x 2.4 x 1.28")
    • Weight: 80g (2.82oz)
    • Interface Connections: (2) RJ45 Female Connectors
    • ESD/EMP Protection: Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/us
    • DC Spark-Over Voltage: 90V @ 100V/s
    • Maximum Impulse Spark-Over Voltage: 700V @ 1kV/us
    • Discharge Current: 5kA (maximum) / 0.5kA (normal)
    • Maximum Insulation Resistance: 1GΩ @ 50V
    • Maximum Capacitance: 1.0pF @ 1MHz
    • Data Line Protection: RJ45 10/100/1000 Ethernet
    • IEEE 802.3af PoE Support: Yes
    • Shock and Vibration Certification: ETSI300-019-1.4 Standard
    • Operating Temperature: -30 to 65°C (-22 to 149°F)
    • Operating Humidity: 10 to 90% non-condensing
    Product Includes:
    (1) Ubiquiti ETH-SP-G2
    (1) M5 Self-Tapping Screw
    (1) M5 Serrated Washer
    (1) Quick Start Guide
