    Ubiquiti EdgePoint R6 Intelligent WISP Control Point Layer-3 Router with FiberProtect - Ubiquiti Networks - (Dev) Baltic Networks

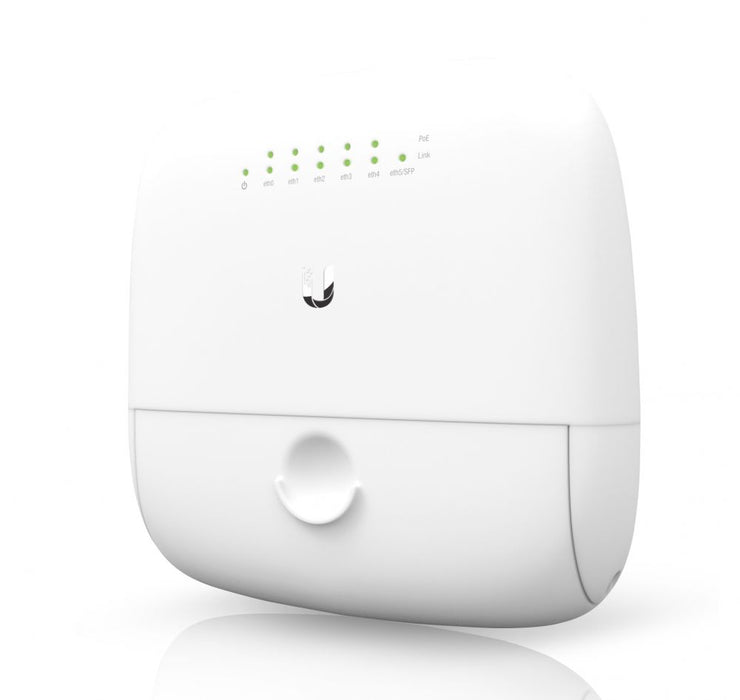

    Ubiquiti EdgePoint R6 Intelligent WISP Control Point Layer-3 Router with FiberProtect

    EP-R6 by Ubiquiti
    Sold out
    $140.00 - $140.00
    $140.00
    $140.00 - $140.00
    $140.00
    Extend Product Protection

    Ubiquiti Networks EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile power capabilities. EP-R6 includes powerful routing features, such as load balancing and failover, providing redundancy and increased performance for outdoor wireless links. EP-R6 is powered by 24VDC or by PoE, and able to support 24V passive PoE to power most Ubiquiti products. A single, compact controller efficiently eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.


    Product Features:

    • (5) RJ45 Ethernet ports
    • (1) SFP Ethernet port
    • 24VDC, 3A Terminal Block
    • PoE Input: (5) 24V, 0.7A Passive PoE
    • Output Ports: (1) SFP Port


    Product Specifications:
    • Dimensions: 188.6 x 177.1 x 49.8mm (7.43 x 6.97 x 1.96")
    • Weight: 605g (1.33lbs)
    • Enclosure Characteristics: Polycarbonate with UV Resistance
    • Max. Power Consumption: 7W (excludes PoE output)


    Power Input:


    • (1) DC Terminal Block
    • (1) RJ34 (eth0) (Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs)
    • Power Supply: Min. 24V / 0.3A (excludes PoE output power)
    • VDC Input: 24V, 3A
    • Passive PoE Input: (1) 24V / 1.4A, 4-Pair (+1,2,3,4,5; -3,6,7,8) Passive PoE, eth0 (Do NOT Configure eth0 in PoE Output Mode if You're Using a POE Input Power Source)
    • Passive PoE Output: (5) 24V / 0.7A, 2-Pair (+4,5;-7,8) Passive PoE, eth0 to eth4
    • Power Monitoring: (1) DC Terminal Block, Input Power / (1) RJ45, eth0, Input Power
    • Supported Voltage Range: 26 to 16VDC
    • Button: Reset


    LEDs:
    • System: Power, eth0 to eth4: Speed/Link/Activity, PoE, eth5/SFP: Speed/Link/Activity
    • Data Ports: (5) 10/100/1000 RJ45 Ports + (1) 1Gbps SFP Port
    • Processor: Dual-Core 880MHz, MIPS1004Kc
    • System Memory: 256MB DDR3-1600 RAM
    • Code Storage: 256MB NAND
    • Certifications: CE, FCC, IC
    • Pole Mount: Yes
    • Operating Temperature: -40 to 65°C (-40 to 149°F)
    • Operating Humidity: 10 to 90% non-condensing


    Product Includes:


    (1) EdgePoint Router

    (1) Metal Strap

    (1) Gigabit PoE (24V, 1.25A) with Mounting Bracket

    (1) Power Cord

    (1) Quick start guide
