    Ubiquiti airMAX LiteBeam 5AC Extreme-Range US [LBE-5AC-XR-US]

    LBE-5AC-XR-US by Ubiquiti
    Ubiquiti LBE-5AC-XR-US Datasheet
    $179.00 - $179.00
    $179.00
    $179.00
    $179.00 - $179.00
    $179.00
    Extend Product Protection
    The airMAX® LiteBeam® AC 5 GHz XR [LBE-5AC-XR-US] is an outdoor, wireless station designed to establish high-speed connections over extremely long distances, allowing you to serve more subscribers with just a single device. The LBE 5AC XR also features a proprietary, high-gain antenna capable of delivering 450+ Mbps throughput over the 5 GHz frequency range.

    Highlights:
    • 5 GHz, 30+ km link range
    • 450+ Mbps throughput
    • Easy to assemble
    Product Features:
    • Proprietary airMAX ac chipset
    • Ultra-lightweight aluminum alloy and UV-stabilized polycarbonate
    • High-gain antenna with InnerFeed® technology
    • Establishes high-speed, extremely-long-distance links
    • Integrated GPS
    • Dedicated management radio for quick device setup via the UISP® Mobile app

      Product Specifications:

      Mechanical

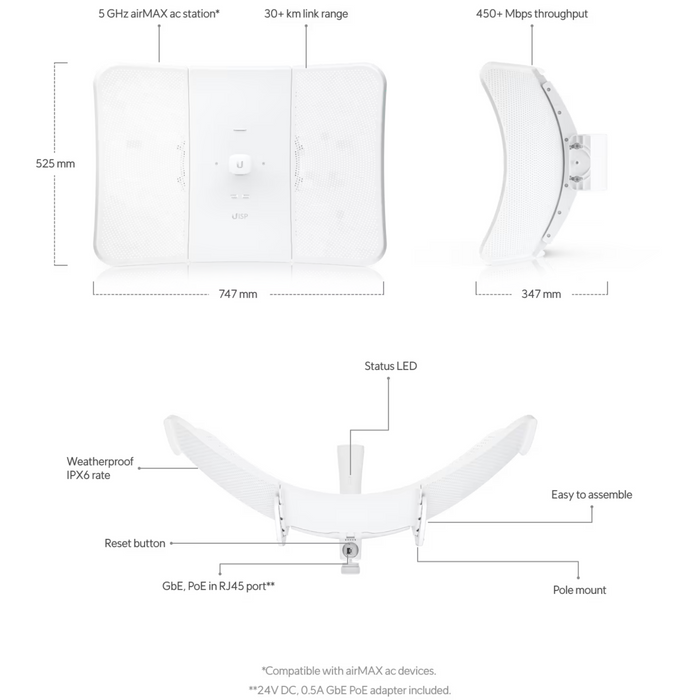

      • Dimensions: 747 x 525 x 347 mm (29.41 x 20.67 x 13.66")
      • Weight: 3.2 kg (7.06 lb)
      • Enclosure materials: Aluminum alloy, UV stabilized polycarbonate
      • Mount material: UV stabilized polycarbonate
      • Mounting:
        • Integrated pole mount (included)
        • Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36")
      • Wind loading: 1100 N at 200 km/h (247.29 lbf at 125 mph)
      • Weatherproofing: IPX6

      Hardware

      • Networking interface: (1) GbE RJ45 port
      • Power method: Passive PoE 2-pair (4, 5+; 7, 8-)
      • Power supply: 24V DC, 0.5A Gigabit PoE adapter (included)
      • Supported voltage range: 22—26V DC
      • Max. power consumption: 7W
      • RF connections: Internal
      • LEDs: Power/ethernet
      • Button: Factory reset
      • Operating temperature: -40 to 70° C (-40 to 158° F)
      • Operating humidity: 5 to 95% non-condensing
      • Certifications: FCC, IC, CE

      System

      • Maximum throughput: 450+ Mbps
      • Encryption: WPA2-PSK (AES)

      Software

      • OS: airOS®
      • Modes: PtMP, PtP
      • Services: SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
      • Utilities: airView®, speed test, alignment, discovery, ping, traceroute, constellation
      • Management interface: Dedicated management radio for quick device setup via the UISP™ Mobile app
      • WEB UI
      • Minimum software requirements: Modern Web browser or Android/iOS smartphone

      RF

      • Operating frequency*: 5.15 to 5.85 GHz (* Depends on regulatory region.)
      • Max. conducted TX power: 25 dBm
      • Management radio: 2400 - 2483.5 MHz
      • Channel bandwidth: 10/20/30/40/50/60/80 MHz
      • Antenna Gain: 29 dBi
      • Isolation: 20 dB
      • Beamwidth:
        • HPOL: 3 dB: 5.5°, 6 dB: 7.5°
        • VPOL: 3 dB: 5.5°, 6 dB: 7.5°
        • Elevation: 3 dB: 5.5°, 6 dB: 7.5°
      • Electrical downtilt: 0°
