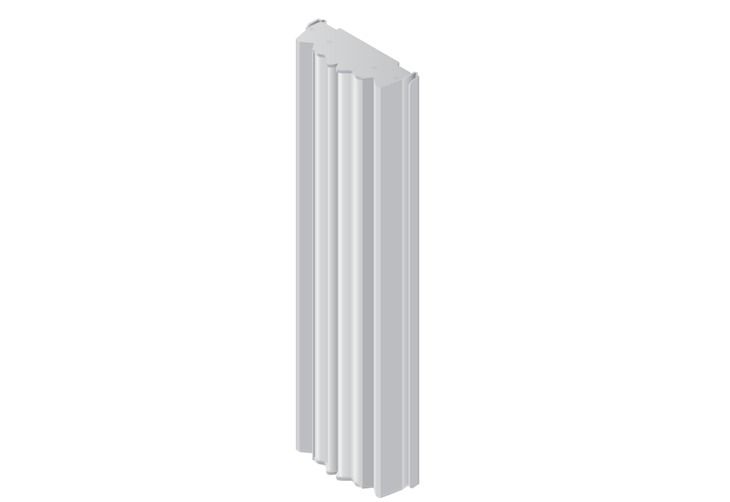

    Ubiquiti airMAX 5GHz 22dBi 45deg 802.11AC Sector Antenna (2x2 MiMO)

    AM-5AC22-45 by Ubiquiti
    Ubiquiti AM-5AC22-45 Datasheet
    $199.00 - $199.00
    $199.00
    $199.00 - $199.00
    $199.00
    Extend Product Protection

    AM-5AC22-45 is a Ubiquiti Networks airMAX sector antenna designed to be used with Rocket 5AC radios. It operates on 5GHz frequency with 22dBi and 45deg; beamwidth. The airMAX 802.11ac Sector Antenna is highly resistant to noise interference in co-location deployments and feature an innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower. With improved Signal-to-Noise Ratio (S/N or SNR), the airMAX 802.11ac Sector Antenna allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).


    Product Specifications:
    • Dimensions: 750 x 215 x 94mm (29.53 x 8.47 x 3.70")
    • Weight: 6kg (13.23lbs)
    • Frequency Range: 5.10 - 5.85GHz
    • Gain: 22dBi
    • HPOL Beamwidth: 45° (6dBi)
    • VPOL Beamwidth: 45° (6dBi)
    • Electrical Beamwidth: 4°
    • Electrical Downtilt: 2°
    • Max. VSWR: 1.5:1
    • Wind Survivability: 200km/h (125mph)
    • Wind Loading: 347N @ 200km/h (78lbf @ 125mph)
    • Polarization: Dual-Linear
    • Cross-Polarization Isolation: 30dB Min.
    • ETSI Specification: EN 302 326 DN2
    • Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included


    Product Includes:


    (1) Antenna

    (1) Protective Shroud

    (2) U-Brackets

    (2) Pole Brackets

    (2) Pole Clamps

    (4) M8x135 Carriage Bolts

    (4) M8x20 Serrated Flange Bolts

    (8) M8 Serrated Flange Nuts

    (2) Weatherproof RF Cables

    (1) Quick Start Guide
