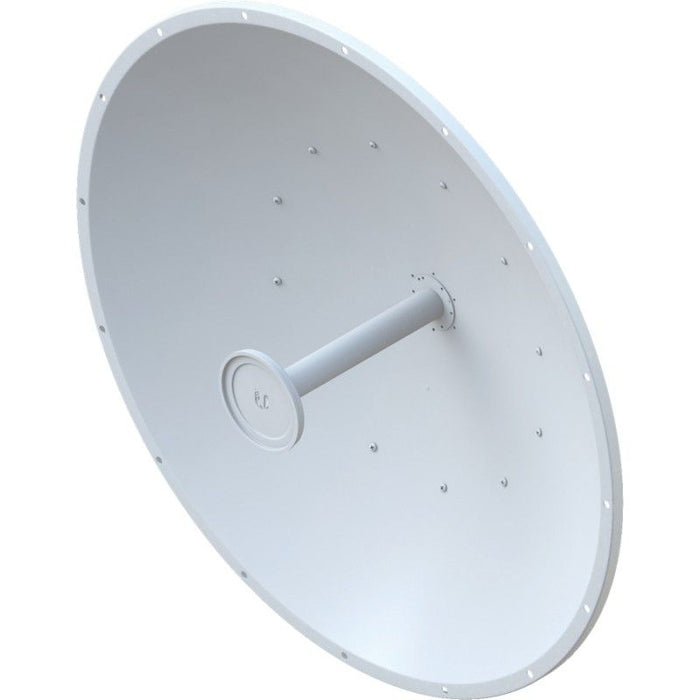

Ubiquiti airFiber Antenna 5GHz 34dBi 45deg Slant Parabolic Dish

Ubiquiti Networks AF-5G34-S45 is designed for use with airFiber 5X radios. This 1050mm parabolic antenna features a 34dBi gain and a 45° slant, operating on 5GHz frequencies.

Product Specifications:

• Dimensions: &dia;1050 x 421mm (&dia;41.34 x 16.57")
• Weight: 13.5kg (29.76lbs)
• Frequency Range: 5100 - 5800MHz
• Gain: 34dBi
• +45° Beamwidth: 3° (3dB)
• -45° Beamwidth: 3° (3dB)
• F/B Ratio: 42dB
• Max. VSWR: 1.4:1
• Wind Loading: 1779N @ 200km/h (400lbf @ 125mph)
• Wind Survivability: 200km/h (125mph)
• Polarization: Dual-Linear
• Cross-pol Isolation: 35dB Min.
• ETSI Specification: EN 302 326 DN2
• Universal Pole Mount, airFiber X Radio Bracket, and Weatherpoof RF Connectors included

Product Includes:
(1) Dish Reflector
(1) Antenna Feed
(1) Mounting Bracket
(1) Protective Shroud
(2) Pole Clamps
(2) Stabilizer Brackets
(2) RF Cables
(1) Elevation Rod
(4) M12x180 Carriage Bolts
(2) M10x100 Bolts
(3) M10x25 Carriage Bolts
(6) M4 Bolts
(1) Quick Start Guide
