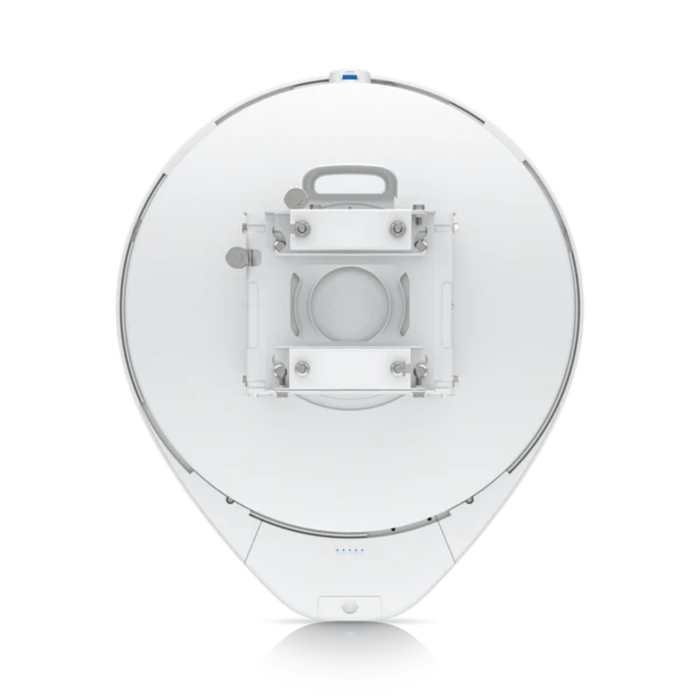

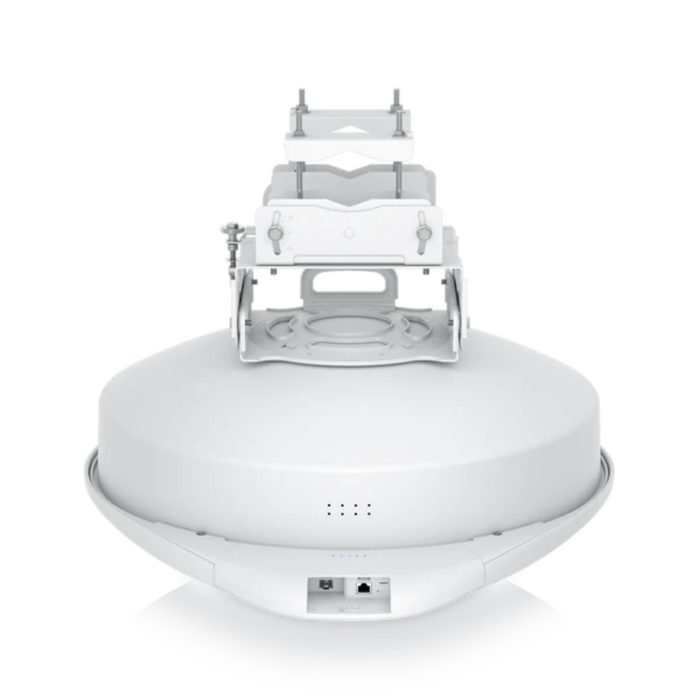

    Ubiquiti airFiber 60 XR

    AF60-XR-US by Ubiquiti
    Ubiquiti AF60-XR-US Datasheet
    $999.00 - $999.00
    $999.00
    $999.00 - $999.00
    $999.00
    Extend Product Protection
    Multi-gigabit, 60 GHz bridge designed to create long-distance links and deliver 5.4 Gbps total throughput (2.7 Gbps duplex) over them.

    It's also equipped with a 5 GHz backup radio for operational redundancy, as well as a Bluetooth radio to simplify setup via the UISP® Mobile app.

    Note: Price shown is for a single unit. This product should be purchased in pairs in order to form links.

    Features:
    • 5 GHz backup radio
    • Link range: 15+ km
    • (1) 10G SFP+ port
    • Integrated GPS
    • Link planning support via the ISP Design Center

    Product Summary
    Mechanical:
    • Dimensions: 779 x 664 x 383 mm (30.7 x 26.1 x 15.1")
    • Weight:
      • Without mount: 8.6 kg (19 lb)
      • With mount: 13 kg (28.7 lb)
    • Enclosure materials: UV stabilized polycarbonate, steel
    • Mount material: Galvanized steel
    • Mounting:
      • Precision alignment kit (included)

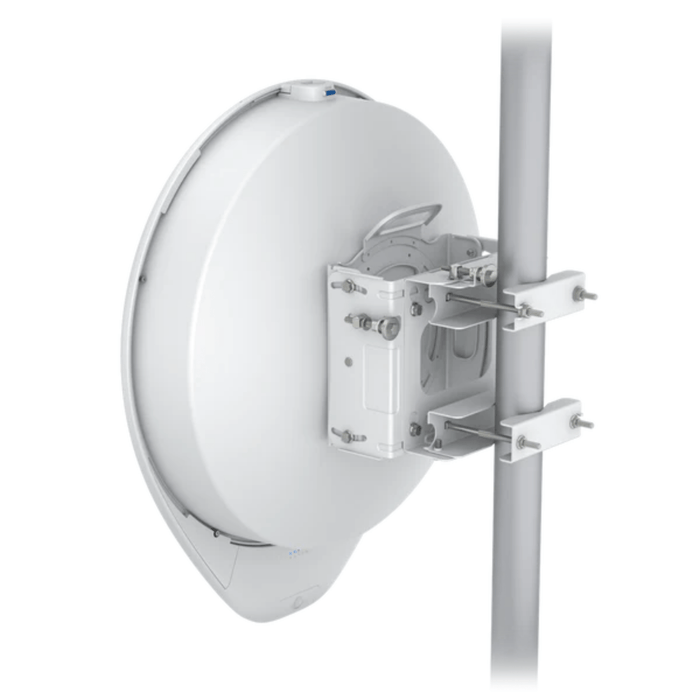

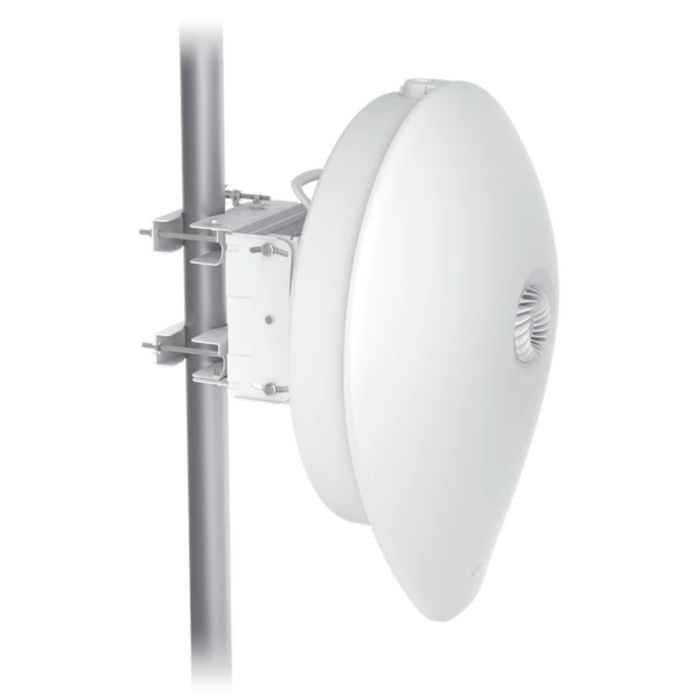

      • Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15") on pipe outer diameter
    • Wind loading: 422 N at 200 km/h (94.86 lbf at 125 mph)
    • Weatherproofing: IPX6

    Hardware:
    • Processor: Quad-core ARM® Cortex®-A53 at 1.4 GHz
    • Memory: DDR3L1 GB
    • Networking interface:
      • (1) GbE RJ45 port
      • (1) 1/10G SFP+port
    • Max. power consumption: 24W
    • Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
    • Power supply: 48VDC, 0.65A gigabit PoE adapter (included)
    • RF connections: Internal
    • Button: Factory reset
    • LEDs: Power, Ethernet, GPS, link
    • Operating temperature: -40 to 55° C (-40 to 131° F)
    • Operating humidity: 5 to 95% noncondensing
    • Certifications: FCC, IC, CE
    Software:
    • OS: airOS®
    • Operating mode: PtP only
    • Ubiquiti specific features: Integrated 60 GHz radio, discovery protocol, Wave technology
    • Services: UISP, ping watchdog, NTP client, device discovery
    • Tools: Antenna alignment, discovery utility, ping, trace route, speed test
    • Network: Bridge mode
    • Software management:
      • Bluetooth management for easy setup over UISP app
      • WEB UI
    • Minimum software requirements: Any modern web browser/iOS™ or Android™ based smartphone
    System:
    • Maximum throughput: 2.5+ Gbps
    • Maximum range: 15+ km
    • Encryption: WPA2-PSK (AES)
    RF:
    • Operating frequency:*  57 to 71 GHz (* Depends on regulatory region.)
    • Channel bandwidth: 2160, 1080 MHz
    • Operating channels:*  58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz (* Depends on regulatory region.)
    • Modulation: 16QAM, BPSK, QPSK
    • Beamwidth:
      • Azimuth: ± 1°
      • Elevation: ± 1°
    • Management radio: 2400 - 2483.5 MHz
    • Electrical downtilt: 0°

    Back-Up RF:
    • Operating frequency*
      • US/CA
        • U-NII-1 5150 - 5250 Mhz
        • U-NII-3 5725 - 5850 Mhz
      • Worldwide
        • 5150 - 5875 MHz (* Depends on regulatory region.
    • Channel bandwidth: 20, 40, 80 MHz
    • Modulation: BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6)
    • Antenna gain: 26 dBi
    • Beamwidth:
      • Azimuth: ± 7°
      • Elevation: ± 7°
    • Cross-pol isolation: 14 dB
    • Electrical downtilt: 0°
