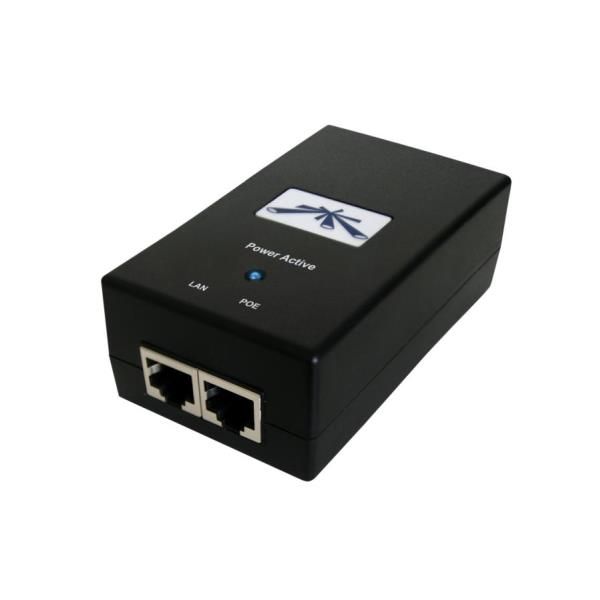

Ubiquiti 50V DC 1.2A 60W Replacement PoE Adapter

POE-50-60W is a Ubiquiti Networks 50VDC 1.2A replacement Gigabit PoE adapter. Combined with TOUGHCable, you can effectively protect against any ESD attack.

• Dimensions: 101 x 60 x 33mm (3.98 x 2.36 x 1.30")
• Weight: 192g (6.77oz)
• Output Voltage: 50VDC @ 1.2A
• Gigabit LAN Port: Yes
• Input Voltage: 90-260VAC @ 47-63Hz
• Input Current: 1.3A @ 120VAC, 0.75A @ 230VAC
• Inrush Current: 100A Peak @ 120VAC, 200A Peak @ 230VAC
• Efficiency: 85+%
• Output Ripple: 1% Max.
• Switching Frequency: 65kHz
• Line Regulation: ±1%
• Load Regulation: ±3%
• 4-Pair Powering: Pins 1,2,4,5(+) and Pins 3,6,7,8(-)
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -30 to 70°C (-22 to 158°F)
• Operating Humidity: 35 to 95% non-condensing
• AC Connector: IEC-320 C6
• Data IN/PoE: RJ45 Shielded Socket
• Surge Protection: Difference and Common Mode
• Clamping Protection: 11V Data, 60V Power
• Max. Surge Discharge: 1500A (8/20us) Power
• Peak Pulse Current: 36A (10/1000us) Data
• Shunt Capacitance: <5pF Data
• Response Time: <1ns
