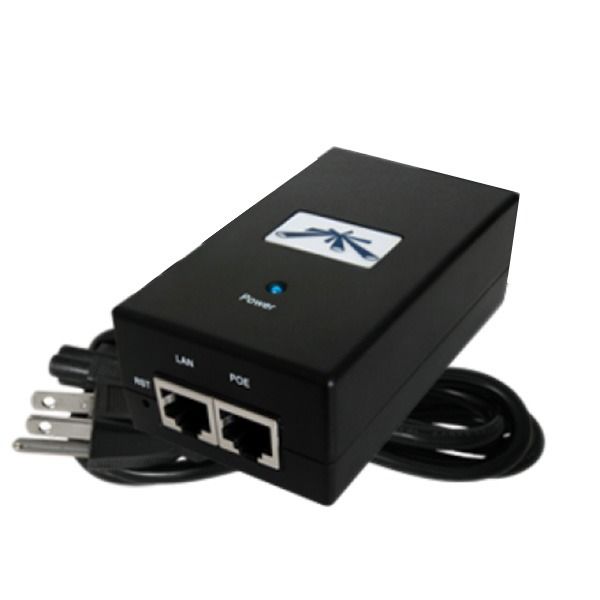

Ubiquiti 48V DC 0.5A 24W Gigabit Replacement PoE Adapter

POE-48-24W is a Ubiquiti Networks Gigabit PoE Injector with a 48VDC 0.5A output voltage. It works great with Rocket M5 and UniFi access points, with ESD protection.

• Dimensions: 92 x 60 x 33mm (3.62 x 2.36 x 1.30")
• Weight: 158.5g (5.59oz)
• Output Voltage: 48VDC @ 0.5A
• Gigabit LAN Port: Yes
• Input Voltage: 90-260VAC @ 47-63Hz
• Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
• Inrush Current: <65A Peak @ 120VAC, <130A Peak @ 230VAC
• Efficiency: 80+%
• Output Ripple: 1% Max.
• Switching Frequency: 65kHz
• Line Regulation: ±1%
• Load Regulation: ±3%
• 2-Pair Powering: Pins 4,5(+) and Pins 7,8(-)
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -30 to 70°C (-22 to 158°F)
• Operating Humidity: 35 to 95% non-condensing
• AC Connector: IEC-320 C6
• Data IN/PoE: RJ45 Shielded Socket
• Surge Protection: Difference and Common Mode
• Clamping Protection: 11V Data, 60V Power
• Max. Surge Discharge: 1500A (8/20us) Power
• Peak Pulse Current: 36A (10/1000us) Data
• Shunt Capacitance: <5pF Data
• Response Time: <1ns
