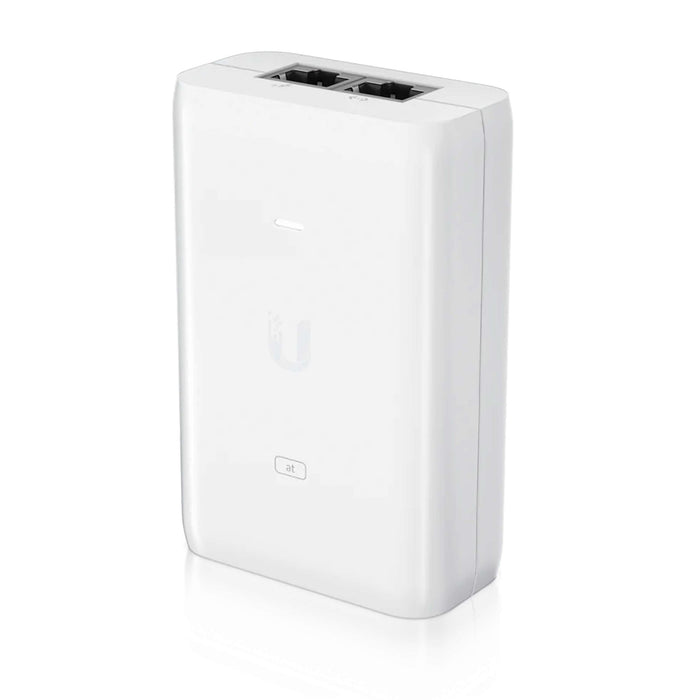

    Ubiquiti 30W PoE+ Injector

    U-POE-at by Ubiquiti
    Sold out
    $11.95 - $11.95
    $11.95
    $11.95 - $11.95
    $11.95
    Extend Product Protection

    Compact adapter capable of delivering 30W of PoE+ to the U6 LR, U6 Pro, and other PoE+ devices.


    The Ubiquiti PoE+ Injector, U PoE AT, is designed to power PoE+ devices. The U PoE AT delivers up to 30W of PoE+ that can be used to power the UniFi6 Long-Range, U6 LR, UniFi6 Pro, U6 Pro, and other devices that adhere to the PoE+ standard. It also provides enhanced protection against electrical surges.


    Product Features:
    • Delivers up to 30W of PoE+
    • Compatible with the U6 LR, U6 Pro, and other PoE+ devicesSurge and clamping protection
    • AC cable with earth ground
    Product Specifications:
    • Model: U-POE-at
    • Dimensions: 93 x 62 x 35 mm (3.66 x 2.44 x 1.38")
    • Weight: 156 g (5.5 oz)
    • Output Voltage: 48VDC @ 0.65A
    • LAN Activity Indicator: No
    • Gigabit LAN Port: Yes
    • Remote Reset Capability: Yes
    • Reset Button: No
    • Rated Voltage: 100-240VAC @ 50/60Hz
    • Input Current: 0.75A@90VAC
    • Inrush Current: <100A Peak @230VAC, 26℃
    • Efficiency: 87%
    • Output Ripple: 1% Max.
    • Switching Frequency: 70 kHz Max.
    • Line Regulation: ≤ 3%
    • Load Regulation: ≤ 5%
    • 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
    • 4-Pair Powering: –
    • Operating Temperature: 0 to 40° C (32 to 104° F)
    • Storage Temperature:
    • Operating Humidity: 35 to 90% Noncondensing
    • AC Connector: IEC-320 C6
    • Data IN / PoE: RJ45 Shielded Socket
    • Surge Protection: Difference and Common Mode
    • Clamping Protection: 11V Data, 60V Power
    • Max. Surge Discharge: 1500A (8/20 μs) Power
    • Peak Pulse Current: 36A (10/1000 μs) Data
    • Shunt Capacitance: <5 pF data
    • Response Time: <1 ns
    • Certifications: CE, FCC, IC, UL
