    Tycon Wireless Kit EZ-Bridge-Ultra2-LR 100Mbps Long Range Point to Point Bridge System - Plug and Play 2.4GHz

    EZBR-Ultra2-LR by TYCON Systems
    Sold out
    Original price $551.95 - Original price $551.95
    Original price
    $551.95
    $551.95 - $551.95
    Current price $551.95
    Extend Product Protection

    The EZ-Bridge-Ultra2-LR is a long range high capacity 100Mbps+ and high power 250mW outdoor wireless bridge system operating in the 2.4GHz unlicensed spectrum. The complete system allows for ultra high bandwidth connections between two buildings up to 8 miles or more apart with good line of sight. It creates a transparent bridge between two sides and passes all network traffic including VPN and DHCP.


    Product Features

    • High Power Electronics and Powerful Advanced MiMO Antenna
    • True Plug and Play
    • 64 and 128bit WEP, WPA and WPA2 Encryption
    • Web-Based Configuration
    • PoE (Power over Ethernet)
    • Transparent Bridge


    Product Specifications

    • Data Rates: 6 to 150 Mbps
    • Operating Distance: Up to 15 miles line of sight
    • Standards: IEEE802.11n, 802.11g, 802.3, 802.3u
    • Power Requirements:    -Power Supply: 100-240VAC 50/60Hz    -EZ-Bridge Ultra2-LR: 12VDC to 24VDC    -Av. Power Consumption: 5.5W
    • Regulation Certifications: FCC Part 15 / UL
    • RF Frequency Band: 2412 - 2462 MHz
    • Available Transmit Power: 802.11g/n: 4 to 23dBm
    • Modulation Technology:  -802.11g: OFDM, -802.11n: TDMA
    • Operating Channels: 2.4GHz 12 channels supports at 40MHz width
    • Receive Sensitivity (Typical): -802.11g/n: -94 ± 2dB @ 14Mbps, -802.11n: -75 ± 2dB @ 300 Mbps

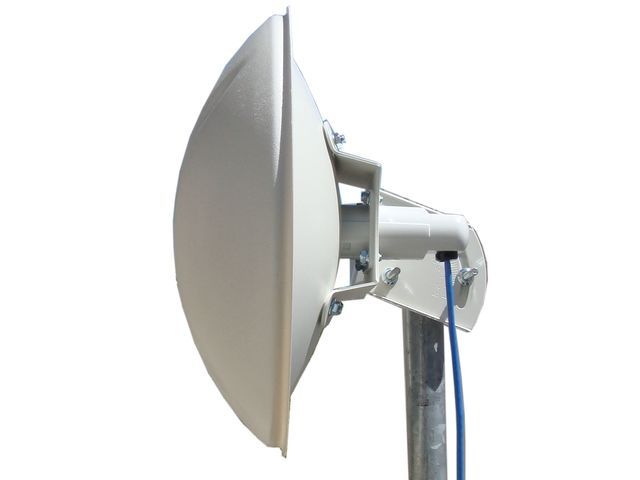

    • Antenna: 2.4GHz 18dBi Dish Antenna, 8° AZ and 8° EL Beamwidth, >23dB front to back
    • Network Topology: Ad-Hoc, Infrastructure
    • Operation Modes: Point to Point Bridge, Access Point, Client Bridge or Router
    • Processor: Atheros MIPS 24KC 400MHz
    • Interface: 10/100Mbps RJ45 LAN Port
    • Memory: 32MB SDRAM, 8MB Flash
    • IP Auto Configuration: DHCP Client
    • Security: MAC Address Filtering, WEP/WPA encryption, Hide SSID in beacons, Layer 2 isolation
    • Management Configuration: Web-based Configuration (HTTP), Console Configuration, SNMP Protocol
    • Firmware Upgrade: Upgrade firmware via web browser
    • Antenna Physical Dimensions (diameter x depth): 400 x 254mm (15.7 x 10")
    • Complete System Weight: 9.07kg (20lbs)
    • Temperature Range: Operating: -30 to 75°C (-22 to 167°F),  Storage: -40 to 80°C (-40 to 176°F)
