    Tycon Solar POE/Solar Dual Input 12V Battery Charge Control

    TP-SCPOE-1224 by TYCON Systems
    Sold out
    $95.95 - $95.95
    $95.95
    $95.95 - $95.95
    $95.95
    Extend Product Protection

    Tycon Solar TP-SCPOE-1224 has dual inputs to charge batteries from a POE source and also a secondary source like solar panels in order to provide redundancy and insure 100% uptime for critical applications. The solar input can handle up to 8A. The POE input up to 2.5A. They have a built in POE inserter that delivers 24V 1.25A at the POE out port. They also have a secondary wire terminal 12V 1.5A output. They have full electronic protections for short circuit, reverse current, overvoltage, overcharge and over discharge.


    The built-in over discharge protection and low self consumption ensures the battery is not over discharged, which greatly increases the life of the batteries.

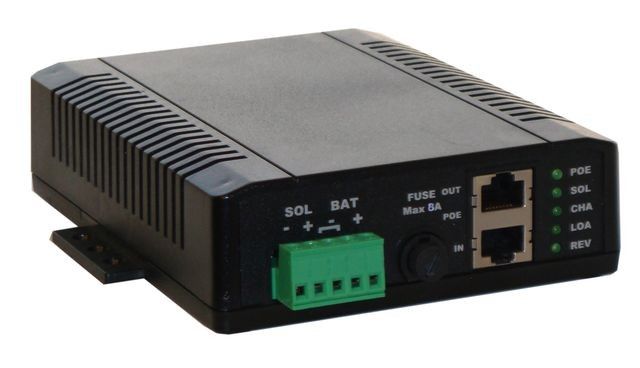

    They have five LED indicators to give a quick visual status if current is being supplied by a POE source or solar panel, if battery is charging, If load output is turned on and a warning if battery is connected with reverse polarity.


    Solar and Battery Connections are via 4 wire terminals for wire size up to 10AWG. POE Input and Output is via 2 RJ45 shielded connectors.

    The controllers are externally fused with a standard replaceable fuse.


    Size: 159 x 118 x 40mm (6.3 x 4.6 x 1.6”)

    Weight: 312 g (11 oz )


    Product Features

    • Dual input: Charges 24V batteries from solar panel and/or passive PoE
    • Built in DC to DC converter
    • Compact and high temperature operation
    • Low self consumption: < 0.5W
    Product Applications
    • Remote power systems; surveillance, sensors
    • Wireless stations; AP / client / repeaters
    • UPS systems; lighting, fences, gates
    Product Specifications
    • Solar input voltage: 15V - 36V @ 8A max
    • PoE input voltage: 18V - 57V @ 2.6A
    • Battery voltage: 12V
    • PoE output: 24V @ 1.25A
    • Secondary output: 11V to 15V @ 1.5A max
    • Charge voltage: 14.6 ±0.3V
    • Maintenance voltage: 13.5 ±0.3V
    • Over discharge voltage: 11.0 ±0.3V ; 12.0 ±0.3V
    • Load-on consumption: <0.5W
    • Load-off consumption: 1.7mA Type 0.02W
    • Max wire size: 12 AWG
    • Operating temperature: -30°C to 60°C (-22°F to 140°F)
    • Dimensions: 159 x 118 x 40mm (6.3 x 4.6 x 1.6")
    • Weight: 312 g (11 oz)
