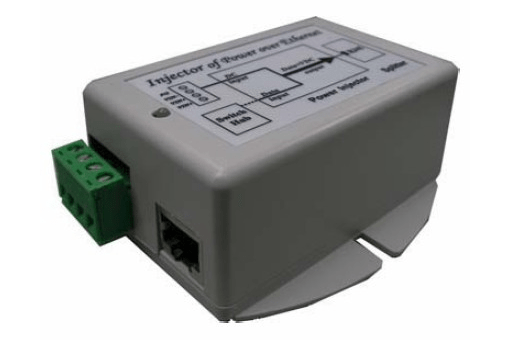

    Tycon Power GIGABIT 9-36VDC In, 48VDC Out 24W DC to DC Converter and POE Inserter

    TP-DCDC-1248G by TYCON Systems
    Sold out
    $47.95 - $47.95
    $47.95
    $47.95 - $47.95
    $47.95
    Extend Product Protection

    TP-DCDC-1248G is a low cost and high efficiency solution for those requiring IEEE802.3af Power Over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle.


    The output voltage is regulated at 48VDC, and it has two isolated inputs for connecting 2 power sources (like a primary and backup power source).


    Product Features
    • Input Voltage 9-36VDC; Output 48VDC
    • Integrated Gigabit POE Inserter
    • Output Power 24W
    • Short Circuit, Over Current and Over Voltage Protection
    • High Temperature Operation
    • Removable Wire Terminal Input for up to 12AWG wires
    Product Specifications
    • DC Output Voltage: 48V (Passive)
    • Data in & Data/POE Output Connector: RJ45 (Shielded)
    • Output Current (max): 0.4A
    • Output Power (max) 19W
    • Self Consumption Power: 1W
    • Efficiency (min): 75%
    • Line Regulation: 1%
    • Load Regulation: 5%
    • Ripple: 1%
    • Noise: 1%
    • Operating Temps: -30 to +60deg C (-40 to +176deg F)
    • Operating Humidity: 5% - 90%
    • Dimensions: 85 x 76 x 36 mm (3.4 x 3 x 1.4 in)
    • Weight 134g (4.7oz)
