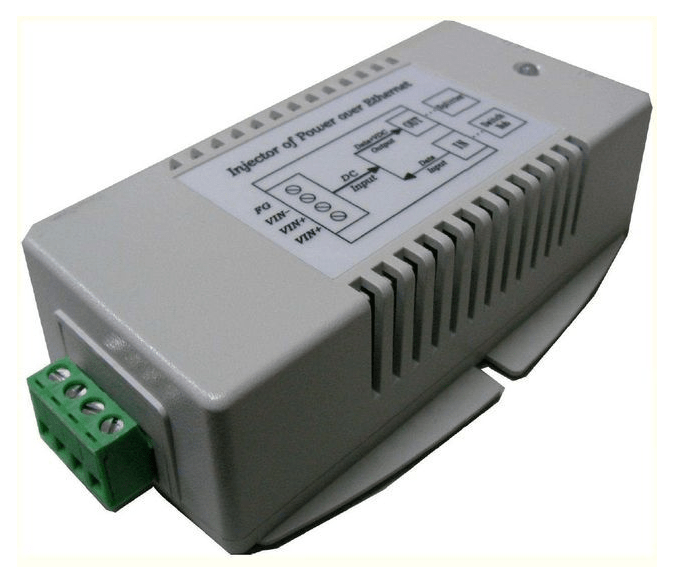

    Tycon Power GIGABIT 10-15VDC In, 56VDC Out Passive 50W High Power DC to DC Converter/PoE Inserter

    TP-DCDC-1248G-HP by TYCON Systems
    Sold out
    $62.95 - $62.95
    $62.95
    $62.95 - $62.95
    $62.95
    Extend Product Protection

    The TP-DCDC-1248G-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 56VDC Power Over Ethernet voltage from a +/-12V battery system.


    Product Features

    • Input Voltage 12VDC or 24VDC or 48VDC

    • IEEE 802.3af/at Compliant or Passive PoE Output

    • Dual Inputs for Connecting 2 Power Sources

    • Integrated 10/100/1000MB PoE Inserter

    • High power up to 50W

    • Low Self Consumption Power

    • Short Circuit, Over Current and Reverse/Over Voltage Protect

    • High Temperature Operation• Compact Size - Maximize Available Space


    Applications

    • 12V / 24V / 48C Battery Systems, Vehicle Applications

    • Wireless Access Points, and Client Devices

    • IP Phone and Security Camera Systems


    Product Specifications

    • DC Input Voltage: 10VDC - 15VDC

    • DC Output Voltage: 56V (Passive)

    • Data in & Data/POE Output Connector: RJ45 (shielded)

    • Output Current (max): 0.9A

    • Output Power (max): 50W

    • Self Consumption Power: 1W

    • Efficiency (min): 75%

    • Operating Temp: -30 to +60deg C (-22 to +140deg F)

    • Operating Humidity: 5% - 90%

    • Dimensions: 125 x 75 x 38 mm (4.9 x 3 x 1.5 in)

    • Weight: 300g (10.6oz)
