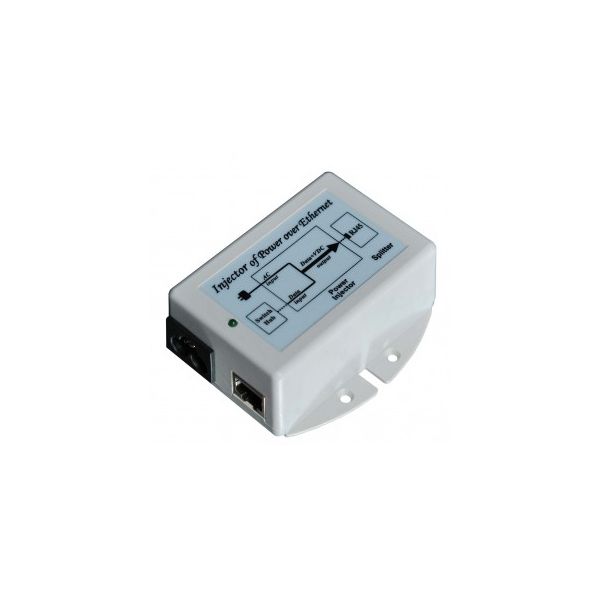

    Tycon Power 48V 24W POE Power Source/Inserter With Surge Protection

    TP-POE-48 by TYCON Systems
    Sold out
    $33.95 - $33.95
    $33.95
    $33.95 - $33.95
    $33.95
    Extend Product Protection

    The TP-POE Passive Power Over Ethernet Power Sources offered by Tycon Power Systems are quality power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). For the "R" model the voltage is reversed. 4,5(V-) and 7,8(V+). The Ethernet spec supports distances up to 100m (328 feet).


    The TP-POE are auto ranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated DC Voltage at the output. They have various protections for surge, short circuit, overload and overvoltage. The medium power models (TP-POE) have power output up to 24W and the high power models (TP-POE-HP) up to 100W. They are available in 18V, 24V and 48V DC Output with load regulation within 5%. The CI model has an special current sense LED which changes color when a POE device is plugged into the CAT5 cable.


    If the remote device does not support power over Ethernet, splitters (POE-SPLT-S) are available to split the data and DC voltage at the remote device. If the remote device requires reverse voltage the POE-XOVER cable can be used.


    Product Features

    • Remotely Power Equipment thru CAT5 Cable up to 100m
    • Auto ranging Switching Power Supply
    • Short Circuit, Over Current and Over Voltage Protection
    • High Temperature Operation
    • Compact size
    • Floor / Desktop / Wall Mount
    • CE/FCC/UL/CB Approved
    Product Specifications
    • AC Input: 90-264VAC 47-63Hz
    • Max Inrush Current (120VAC): 30A
    • Efficiency (min): 85%
    • Line / Load Regulation: 1% / 5%
    • Ripple / Noise: 1% / 2%
    • Protections: Over-Voltage, Short Circuit, Over-Current
    • Surge Protection:
          Ethernet: 4 Pin (1/2, 3/6) Common Mode Protection, 7.5V Clamping Voltage 5.4A (8/20us) Peak Pulse Current, <2pF Shunt Capacitance
          AC Input: Operating Voltage = 385VDC, Clamping Voltage = 775VDC, Maximum discharge current is 1200A(8/20us)
    • EMC Standards: FCC Class B EN55022 Class B
    • Safety Standards: UL1950, CSA 22.2 & TUV EN60950
    • Environmental Standards: RoHS
    • Operating Temperature: -30 to 60°C (-22 to 140°F)
    • Operating Humidity: 5% - 90%
    • Storage Temperature: -40 to 80°C (-40 to 176°F)
    • PoE Output Voltage: 48V
    • Output Current: 0.5A
    • Output Power 24W
    • PoE Type: Passive
    • Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4")
    • Weight: 150g (5.3oz)
