    Tycon Power 18-36VDC Input, 24VDC 2.9A 70W Output Voltage Converter

    TP-VRHP-2424 by TYCON Systems
    Sold out
    $66.95 - $66.95
    $66.95
    $66.95 - $66.95
    $66.95
    Extend Product Protection

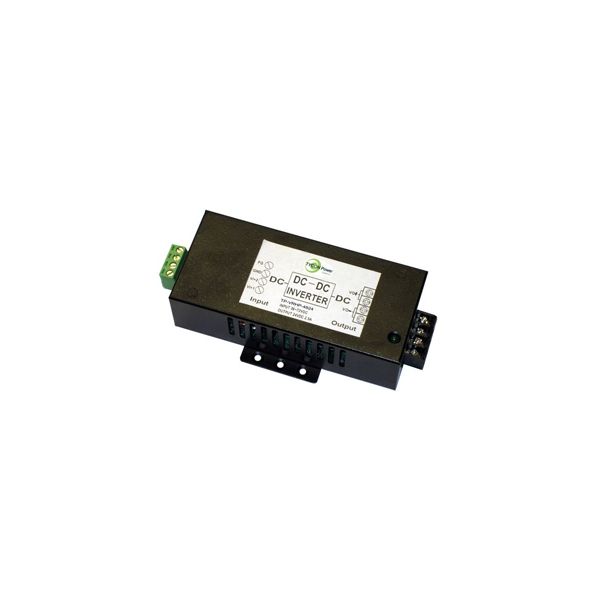

    The TP-VRHP-2424 is a 70W voltage converter/regulator which accepts an input of plus or minus 18VDC to 36VDC and provides a regulated output of 24VDC @ 2.9A 70W. These units are perfect for providing stable regulated 24VDC voltage from 24VDC battery banks.


    Product Features
    • High Output, Short Circuit Protected
    • Metal Enclosure, DIN Rail Mounting
    • Industrial Temperature Operation
    Product Applications
    • Security Systems
    • Remote Power Systems
    • Telecom Applications
    • Wireless Base Stations
    Product Specifications
    • DC Input Voltage Range: 18 to 36VDC
    • DC Voltage Output: 24VDC @ 2.5A
    • Maximum Power: 60W
    • Efficiency: >85%
    • Load / Line Regulation: 5% / 1%
    • Ripple / Noise: 2% / 5%
    • Isolation Voltage / Ohms: 1500VDC Min. / 100M Ohms Min
    • Wire Gauge: 12AWG Max
    • Protections: Short Circuit, Overvoltage, Overload
    • Operating Humidity: 0 to 90% RH
    • Size: 5.9 x 7.4 x 1.7" (150 x 187 x 43.6mm)
    • Weight: 2.6lbs (1.2kg)
