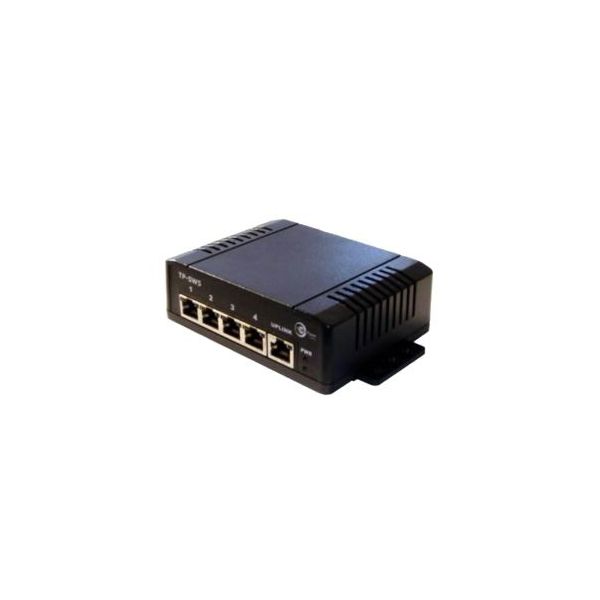

    Tycon Power 12-56V 5 Port High Power POE 10/100BASET Switch. Non 802.3af Compliant

    TP-SSW5-NC by TYCON Systems
    Sold out
    $133.95 - $133.95
    $133.95
    $133.95 - $133.95
    $133.95
    Extend Product Protection

    Universal Voltage 10/100 POE Switch. The switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the switch. This model is very compact at only 4 x 5 x 1.5". 2A per port.


    Product Features
    • High Power 10/100 POE Switch
    • Remotely Power Equipment through CAT5 Cable up to 100m
    • Up to 2A per Port
    • Built-in Surge Protection
    • Automatic MDI/MDI-X Crossover
    • Automatic Speed and Duplex Sensing
    • 1K Self Learning MAC Address Table
    • Compact Size
    • High Temperature Operation
    • CE and FCC Certification
    Product Applications
    • Wireless Access Points and Client Devices
    • IP Phone and Security Camera Systems
    • Power multiple devices from 1 data cable
    Product Specifications
    • Ethernet Standard: IEEE802.3 / IEEE802.3u
    • Ports: 1 data/POE input and 4 data/POE, automatic crossover and polarity
    • Transmission Speed: 100 Mbps / 10 Mbps Auto-negotiation
    • Switch Technology: Store and Forward
    • Protocol: CSMA/CD
    • Flow Control: IEEE802.3x(full-duplex), Back Pressure(half-duplex)
    • Data Transmission Rate: 148800pps, 14880pps
    • Address Table: 1K MAC, self-learning
    • Connections: Shielded RJ45
    • POE Output Ports: Port 1-4, auto power management Pin assignment: TX(1,2), RX(3,6), V+(4,5), V-(7,8)
    • Maximum POE Power: 2A per port
    • POE Auto Detection: Passive POE
    • POE Protection: Over Temperature, Over Current, Over/Under Voltage
    • DC Power Input: 12V to 57VDC, Dual DC Inputs, Reverse Polarity Protected
    • Self Consumption: <1W
    • Operating Temperature: -40 to +85°C (-40 to 185°F)
    • Operating Humidity (RH): 5% - 90% (non-condensing)
    • Storage Temperature: -55 to +105°C (-67 to +221°F)
    • Dimensions: 90 x 118 x 40mm (3.5 x 5.6 x 1.6")
    • Weight: 182g (6.7oz)
