    Tycon Power 10-32VDC In, 5VDC@3A Out

    TP-VR-2405 by TYCON Systems
    Sold out
    Original price $24.95 - Original price $24.95
    Original price
    $24.95
    $24.95 - $24.95
    Current price $24.95
    Extend Product Protection

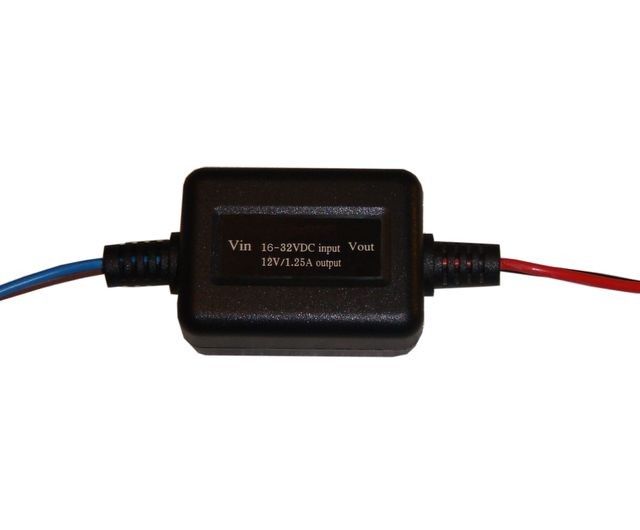

    The TP-VR-2405 is a sealed DC to DC regulator offering a high output regulation in a compact sealed enclosure. They have long 12" 18AWG leads on input and output for universal connectivity.


    Product Features
    • Compact Size, Sealed Design
    • High Output, Short Circuit Protected
    • 12" 18AWG Lead Wires
    Product Applications
    • Security Systems
    • Remote Power Systems
    • Marine Applications
    • Wireless Base Stations
    Product Specifications
    • DC Input Voltage Range: 10V to 32VDC
    • DC Voltage Output: 5VDC @ 3A
    • Maximum Power Dissipation: 15W
    • Efficiency: 80%
    • Load / Line Regulation: 5% / 1%
    • Ripple / Noise: 2% / 5%
    • Wire Gauge: 18AWG
    • Lead Wire Length: 12"
    • Operating Temperature: -40 to 149°F (-40 to 65°C)
    • Operating Humidity: 0 to 99% RH
    • Size: 2.75 x 1.25 x 1" (70 x 32 x 25mm)
    • Weight: 1.5oz (43g)
