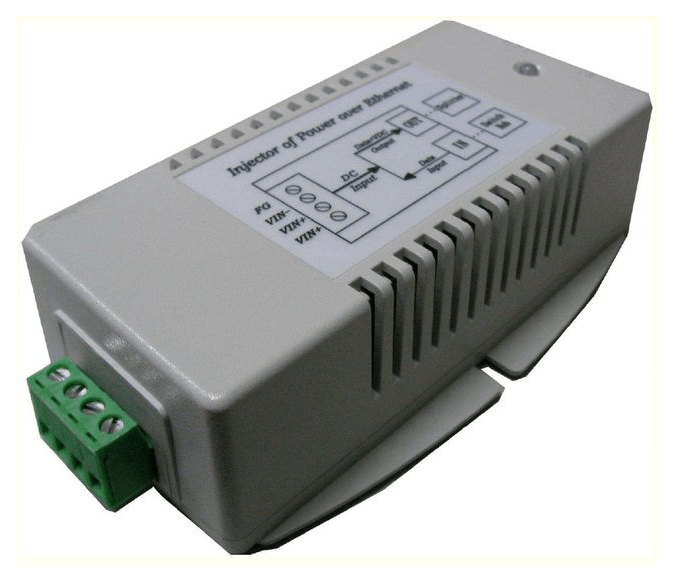

    Tycon Power 10-15VDC In, Dual 56VDC 802.3af/at Out 42W

    TP-DCDC-1248Dx2-HP by TYCON Systems
    Sold out
    $122.95 - $122.95
    $122.95
    $122.95 - $122.95
    $122.95
    Extend Product Protection

    The TP-DCDC-1248DX2-HP is a unique high power PoE injector with Dual 802.3af/at compatible outputs. What this means is that two devices are able to be powered from a single PoE injector, and that the date path between the units is handled by the injector so no PoE switch is required.


    Product Features

    • Input Voltage 12VDC (Also available in 24VDC and 120VAC inputs)

    • Dual 802.3af/at outputs

    • High Power Output 42W Total

    • Surge Protected to 15kV

    • Dual DC Input for Connecting 2 Power Sources

    • 10/100 Data Compatibility, Shielded Connectors

    • Short Circuit, Over Current, and Reverse/Over Voltage Protection

    • Industrial Temperature Range, DIN Rail Mountable


    Product Specifications

    • Input Voltage: +/- 10VDC to 16VDC

    • Input Connector: Screw Type Compression Wire Terminal (12 AWG Max)

    • POE Specification: Active PoE 802.3af/at (Mode B, 2 Pair)

    • Data in & Data/POE Output Connector: RJ45 (Shielded

    • Output Current (max): 0.38A X 2

    • Output Power (total): 42 W

    • Self-Consumption Power: 2W

    • Efficiency (min): 80%

    • Line Regulation, Ripple, Noise: 1%

    • Load Regulation: 5%

    • EMC Standards: FCC Class A, EN55022 Class A

    • Safety Standards: UL1950, CSA 22.2 &TUV EN60950

    • Operating Temperature: -40 to +70C (-40 to 158F)

    • Operating Humidity (RH): 5% - 90%

    • Storage Temperature: -40 to +80C (-40 to 176F)

    • Dimensions: 125 x 75 x 38mm (4.9 x 3 x 1.5")

    • Weight: 255g (9oz)
