    Tycon Power 10-15VDC In, 56VDC 802.3af/at Out 35W DC to

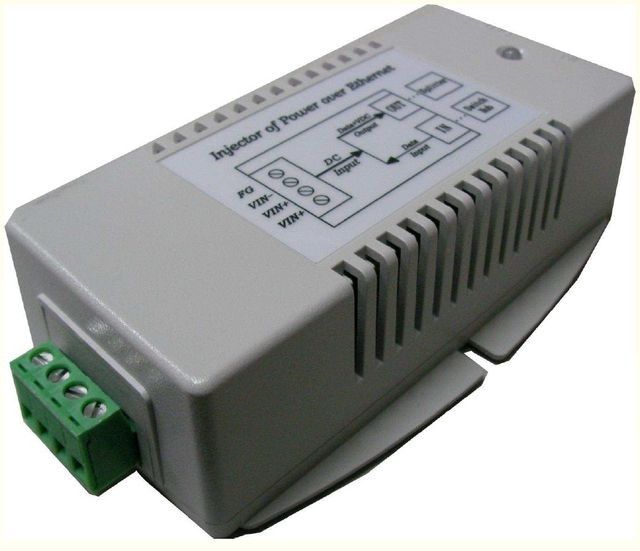

    TP-DCDC-1248GD-HP by TYCON Systems
    Sold out
    $76.95 - $76.95
    $76.95
    $76.95 - $76.95
    $76.95
    Extend Product Protection

    The TP-DCDC-1248GD-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 35W 802.3af/at Power Over Ethernet voltage from a 10-15VDC battery system.


    They have an integrated Gigabit Compatible 802.3af/at POE injector to apply the regulated 56VDC to the CAT5 Ethernet cable.


    They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).


    They have various protections for surge, short circuit and overload. The units have power output of 35W.


    Features
    - Input Voltage 10-15VDC; Output 56VDC 802.3af/at
    - Integrated POE Inserter
    - High Power 35W
    - Short Circuit, Over Current and Over Voltage Protection
    - High Temperature Operation
    - Removable Wire Terminal Input for up to 12AWG wires

    Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4in)
    Weight: 134g (4.7oz)
