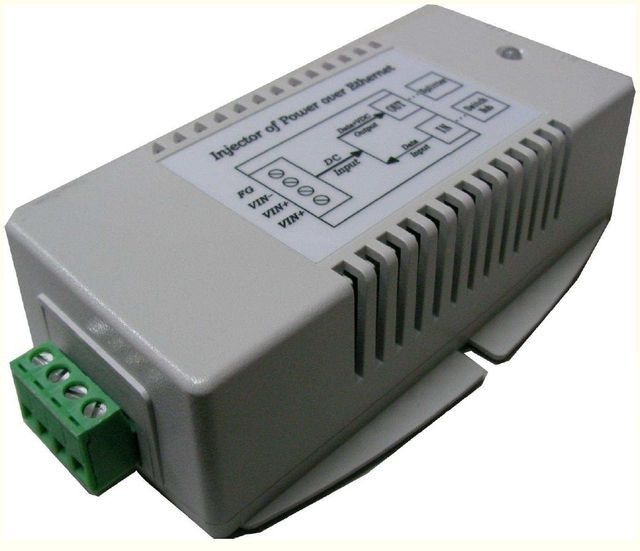

    Tycon Power 10-15VDC In, 24VDC Out 35W Hi Power DC to DC Converter and POE inserter

    TP-DCDC-1224-HP by TYCON Systems
    Sold out
    Original price $57.95 - Original price $57.95
    Original price
    $57.95
    $57.95 - $57.95
    Current price $57.95
    Extend Product Protection
    Product Features
    • Input Voltage 12VDC
    • Passive PoE Output Voltage 24VDC
    • High Power up to 35W
    • Integrated PoE Inserter
    • Low Self Consumption
    • Short Circuit, Over Current and Reverse/Over Voltage Protection
    • High Temperature Operation
    Product Applications
    • 12V, 24V and 48V Battery Systems
    • Wireless Access Points and Client Devices
    • IP Phone and Security Camera Systems
    Product Specifications
    • Input Voltage: ± 10VDC to 15VDC
    • DC Input Connector: Removeable Screw Type Compression Wire Terminal (12 AWG Max)
    • PoE Specification: Passive
    • Output Voltage (±2/5%): 24VDC
    • Data In & Data/PoE Output Connector: RJ45 (Shielded)
    • Output Current (max): 1.46A
    • Output Power (max): 35W
    • Self Consumption Power: 2W
    • Efficiency (min): 75%
    • Line Regulation: 1%
    • Load Regulation: 5%
    • Ripple: 1%
    • Noise: 1%
    • EMC Standards: FCC Class B NE55022 Class B
    • Safety Standards: UL1950, CSA 22.2 &TUV EN60950
    • Operating Temperature: -30 to 60°C (-22 to 140°F)
    • Operating Humidity: 5% to 90%
    • Storage Temperature: -40 to 80°C (-40 to 176°F)
    • Dimensions: 125 x 75 x 38 mm (4.9 x 3 x 1.5 ")
    • Weight: 300g (10.6oz)
