    Tycon MobileSolarPro 160W, 720Ah Batt, 720W Sol, 24V MPPT

    RPMS24-720-720 by Tycon Systems
    Tycon Systems RPMS24-720-720 Datasheet
    Sold out
    $16,449.95 - $16,449.95
    $16,449.95
    $16,449.95 - $16,449.95
    $16,449.95
    Extend Product Protection

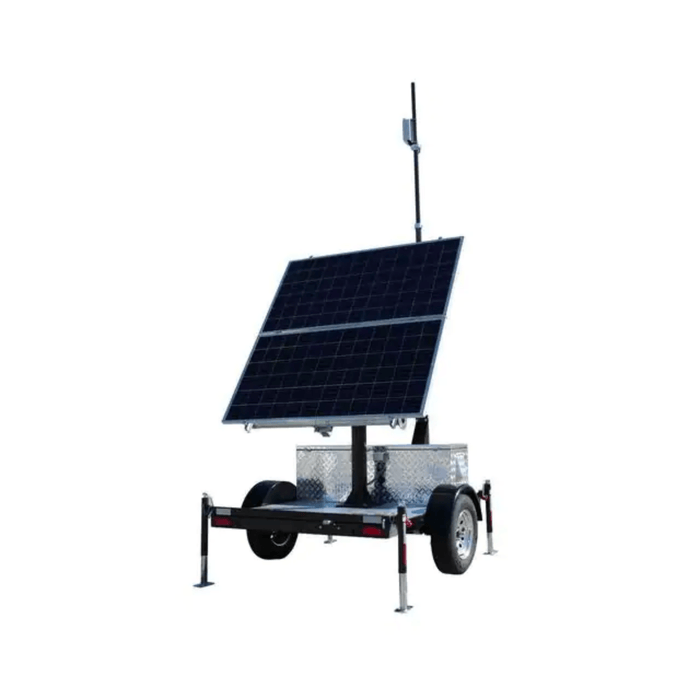

    Tycon Solar MobileSolarPro Mobile Control Power Trailer System 150W Aluminum Enclosure 48v 1440 Ah Battery 720W Solar Panel 48V 30A Output


    Features

    • Low Cost Complete Mobile Solar Remote Power Solution for Off-Grid operation. Fully Assembled. Sets up in minutes.
    • Weatherproof Outdoor Locking Enclosure with 720Ah High Performance Sealed Lead Acid Battery provides 2 days autonomy with <100W continuous load. Thermostatically Controlled Ventilation.
    • 720W of Solar Capacity – Supports up to 160W continuous power with 6 Hrs. Peak Sun. Heavy Duty galvanized 360° adjustable solar mount.
    • MPPT Temperature Compensated Solar Charge Controller: 60A Solar, 30A Load, 99% Efficiency.
    • Complete Remote Monitoring and Control – Email Alerts and Manual/Automatic Reboot. Monitor Solar Voltage & Current, Battery Voltage & Current, Load Current, Temperature. Disconnect Load Power.
    • Pneumatic Four Position (9ft, 12ft, 15ft, 18ft) Locking Aluminum Extension Mast for up to 110lb load. Raises fully in about 1 Minute using the integrated air pump.
    • Regulated 56VDC and Un-regulated 24VDC Output at Top of Mast. Includes surge protected Gigabit 5 port PoE Layer 2 Switch with one 60W High PoE Port, three 802.3at PoE+ Ports and one 24V Passive PoE Port, all at top of pole. CAT5 connection between top of mast and battery enclosure.
    • Protected and Secured Wiring.
    • Dual Charging. Convenient Backup Generator or Grid Power Port. Charges batteries using solar or AC power.
    • Locking 2" Ball Hitch Tongue Lock. Four spring actuated extending (30" Max) support jacks.
    • Room for Second Enclosure for tool storage or additional battery capacity.
    • Chrome Wheels, Leaf Spring Suspension, Aluminum Diamond Plate Decking, Powder Coated Welded Steel Tube Construction.
    • Solar Panel Cover and Ratchet Straps for secure travel protection, Included.
    • Options for adding a Tycon BreezePro® Wind Turbine Kit, a second frame mounted aluminum enclosure, a light kit, a guy line kit, a second battery bank and larger solar array.

    Applications

    • Construction Sites
    • Surveillance Cameras
    • Temporary Security
    • Off Grid Power
    • Temporary Remote Lighting
    • Emergency Power
