    Siklu SFP MM 850

    EH-SFP-MM by Siklu
    Sold out
    $84.95 - $84.95
    $84.95
    $84.95 - $84.95
    $84.95
    Extend Product Protection

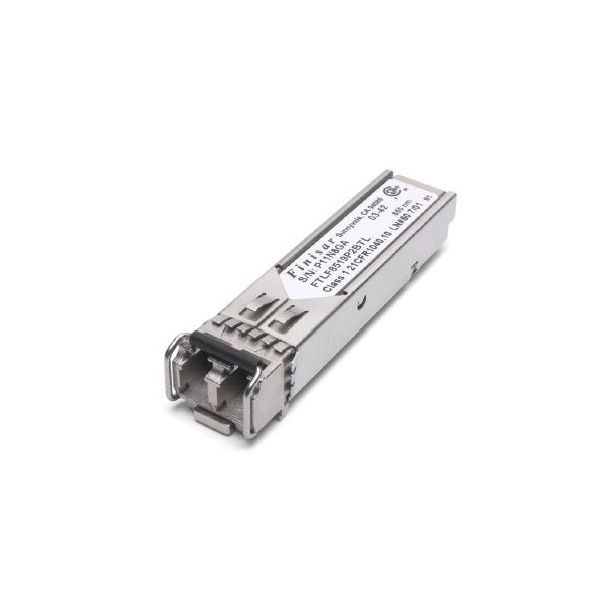

    These Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.32 and Fibre Channel FC- PI-2 Rev. 5.03. They are RoHS compliant and lead-free per Directive 2002/95/EC4 and Finisar Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.


    Product Features:
    • Up to 2.125 Gb/s bi-directional data links
    • Hot-pluggable SFP footprint
    • Built-in digital diagnostic functions
    • 850nm Oxide VCSEL laser transmitter
    • Duplex LC connector
    • RoHS Compliant and Lead-Free
    • Up to 500m on 50/125µm MMF, 300m on 62.5/125µm MMF
    • Metal enclosure, for lower EMI
    • Single 3.3V power supply
    • Low power dissipation
    • Industrial operating temperature range: -40°C to 85°C
    • Product Documentation:
