    Siklu EtherHaul V-band 1 ft. antenna (FCC/ETSI) and mounting kit, with X- and RF adaptors - Siklu - (Dev) Baltic Networks

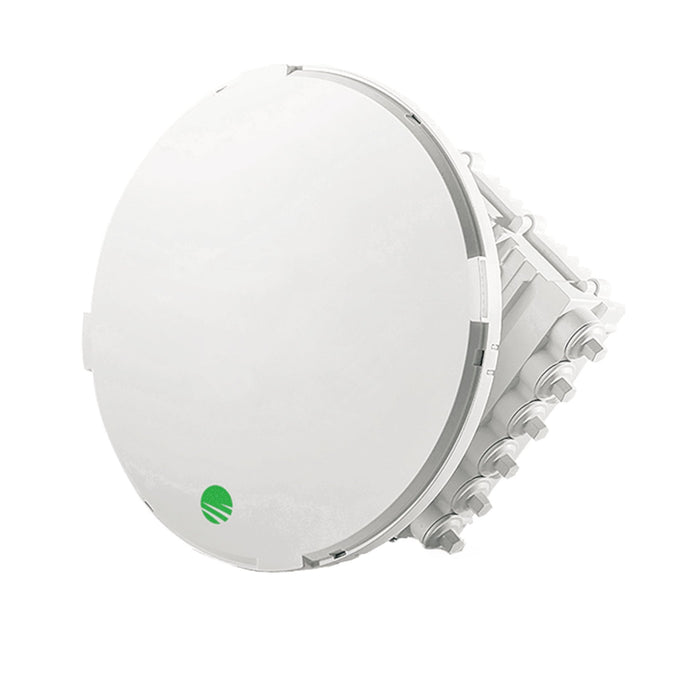

    Siklu EtherHaul V-band 1 ft. antenna (FCC/ETSI) and mounting kit, with X- and RF adaptors

    EH-ANT-1FT-60GHZ by Siklu
    Sold out
    $805.95 - $805.95
    $805.95
    $805.95 - $805.95
    $805.95
    Extend Product Protection
    Product Specifications:
    • Compatibility: EH-500/600TX
    • Frequency Range: 57GHz –66GHz
    • ETSI Regulatory Compliance: EN 302 217 Class 3A
    • Gain: 43dBi +/-2dB
    • 3dB Beam: 0.9 degrees
    • Front-to-Back Ratio: 62dB
    • XPD (Cross Polar Discrimination): 30dB
    • Polarization: Linear Vertical / Horizontal
    • Input power: 10W (max)
    • Interface: Circular waveguideV-band
    • Radome: ABS
    • Operating Temperature: -55°C (-67°F) to +71°C (159°F)
    • Axial Force: (FA)430 N
    • Side Force: (FS)235 N
    • Twisting Moment: (MT)180N • m
    • Zcg without Ice: -3mm
    • Zcg with 1”(25.4mm) Ice: 19mm
    Product Includes:
    (1) Siklu EtherHaul EH-ANT-1FT-60GHZ
    (1) Mounting Kit
    (1) Set of Adaptors
    (1) Installation Guide
