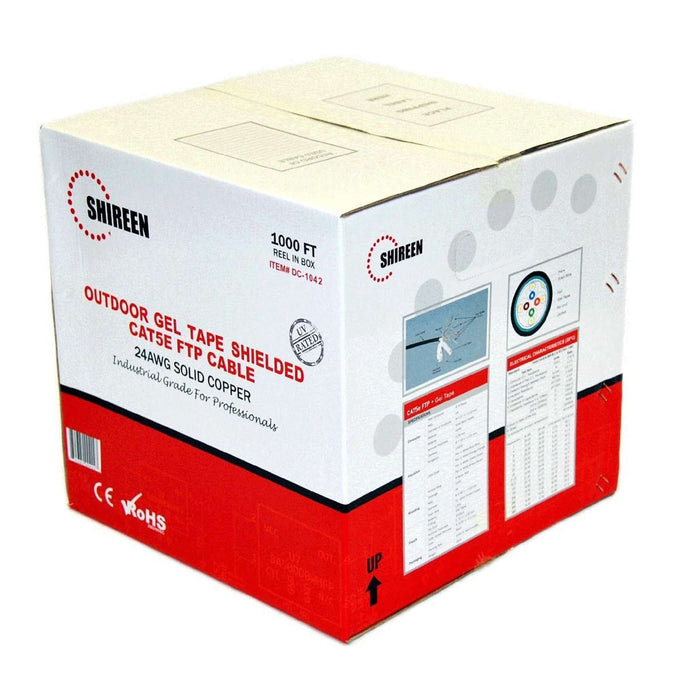

Shireen Shielded CAT5e FTP Outdoor Cable (1000ft Spool) w/ Dry Gel Tape

DC-1042 CAT5e cable features both interference shielding from nearby electrical objects, and Dry Gel Tape for improved water resistance. This cable is designed specifically for outdoor usage, and works well in direct burial applications. It has an outer jacket, 4 twister pairs of 24AWG wire, with LDPE and Dry Gel Tape.

• Water Blocking Tape: 0.35mm x 18
• Packing: 1000ft Reel-in-a-Box

• Pairs: 4
• Total Conductor: 8
• AWG: 24
• Diameter of Conductor: ∅0.51±0.02mm
• Material: Solid Bare Copper

• Material: HDPE
• Nominal Thickness: 0.26mm
• Diameter: ∅1.00±0.05mm
• Elongation: ≥300%

• Vertical Wrap: AL-Mylar Tape
• Coverage %: 100%
• AWG: 24
• Drain Wire: TC - Solid Tinned Copper

• Material: LDPE
• Rip Cord: 200Dx3
• Nominal Thickness: 0.72±0.05mm
• O.D: ∅6.50±0.3mm
• Color: Black

• Conductor DC Resistance: ≤93.8Ω/100m
• Unbalance of Pair DC Resistance: ≤2.5%
• Dielectric Strength between Pairs: ≤1.0kV/min
• Insulation Resistance: ≥5000MΩ-km
• Capacitance: ≤5.6nF/100m
• Unbalance of Capacitance: ≤330pF/100m
• Characteristic Impedance:
       1 to 100MHz: 100±15Ω
       100 to 200MHz; 100±25Ω
       200 to 350MHz; 100±35ohm;
