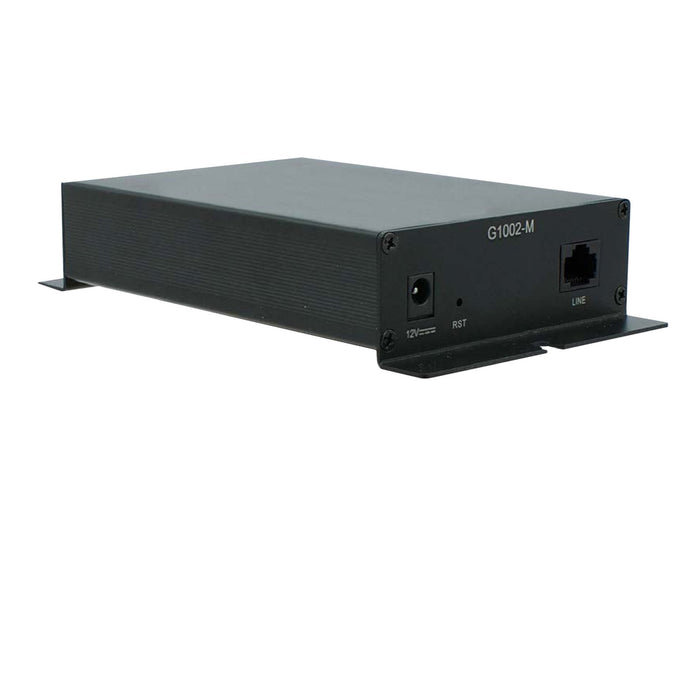

Positron Access G1002-M G.hn (MIMO) To Gigabit Ethernet Bridge

The Positron G1002-M is a locally powered G.hn to Gigabit Ethernet Bridge that offers two Gigabit Ethernet ports (RJ-45). The first Ethernet Port can be configured as a VLAN Trunk port when there is a need to support a large number of VLANs. The second Ethernet Port can be configured as a VLAN Access port when there is a need to support no more than twelve (12) VLANs

Product Specifications:

• Dimensions: 3.7” Width x 1.35” Height x 6.7” Depth / 95mm W x 34.3mm Hx 169.5mm D
• Power: 12 VDC / 1A power adapter(110-220VAC), 6.1Wmaximum
• Certification: CE Mark, FCC Part 15 Class B
• Operating Temperature: 0 ̊C to +40 ̊C/ Storage: -25 ̊C to +80 ̊C
• Operating Humidity: 5% to 95% relative, non-condensing
• G.hn Standards: G.hn Wave-2 Client, based on GigaWireAlliance specification: G.9960 Amendment 2 -System Architecture and PHY Layer, G.9961 Data Link Layer, G.9962 Management, G.9964 PSD
• Ease of Deployment: Support G.hn overa single copper pair (SISO mode) or over two copper pairs (MIMO mode)
• Ease of Operation: Automatic firmware and configuration management via the Positron GAM
• Encryption: AES-128 encryption with individual keys for each end-node under the control of the Positron GAM acting as the Master Node
• Modulation and Frequency Band: Band Notching function allows cohabitation with legacy VDSL2 over the same copper pair
• Bandwidth Management: Up to 1.7 Gbps with Dynamic Bandwidth Allocation to optimize throughput based on nature of traffic flows with TDD Multiplexing for programmable upstream / downstream ratio
• Reliability and Resiliency: State of the art LDPC Forward Error Correction (FEC)

Product includes:

(1) Positron G1002-M

(1) 12V Wall Adapter
