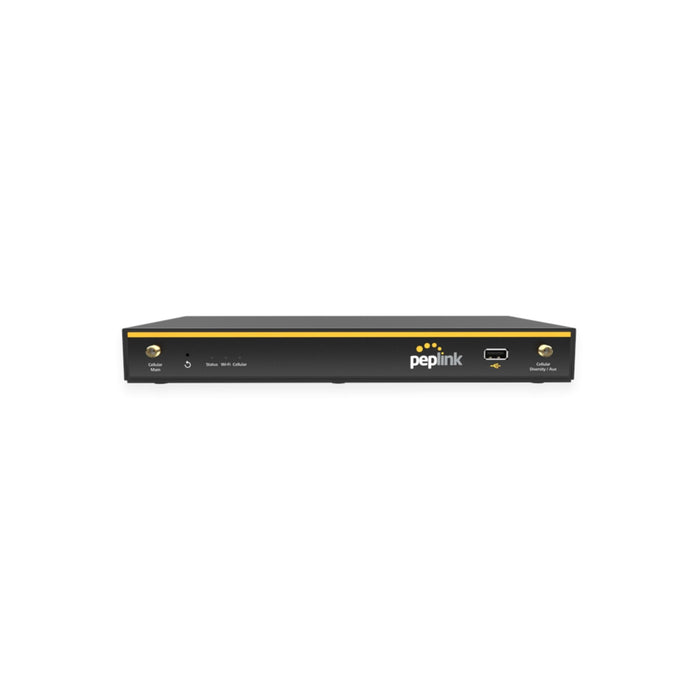

    Peplink Balance 20X 1x GE WAN ports 4x GE LAN ports and 1x LTE modem CAT 4

    BPL-021X-LTE-US-T-PRM by Peplink
    $399.00 - $399.00
    $399.00
    $399.00 - $399.00
    $399.00
    Extend Product Protection

    B20X is a future proof SD-WAN router for small businesses, branches and retail locations. With an embedded CAT 4 LTE radio, and additional expansion slot, it can be used for any location where fixed or cellular connectivity is available. Back up your xDSL with a cellular link (up to two with the FlexModule Mini) and redundant SIM cards. When a line goes down, your office won’t even notice. The Balance 20X has a FlexModule Mini slot which will support all kinds of WAN technology. So when it’s time to add a second LTE connection, the Balance 20X will be ready.


    Product Features:

    • 1x ETH WAN + 1x internal CAT 4 cellular WAN for typical fixed connection with LTE backup
    • Support 1x FlexModule Mini expansion slot for additional functionality, CAT 6, CAT12, CAT18 LTE, FusionSIM support
    • 4 LAN ports + 802.11ac Wave2 WiFi for all LAN use cases
    • PrimeCare Device
    • All-in-one, fully SpeedFusion capable for building secure corporate access under PrimeCare.
    • Built-in LTE modem. Additional optional upgrade to a higher end LTEA Pro radio with FlexModule Mini.
    Deployments:
    • Small businesses/ offices/ branches/ retail locations
    • 1-60 users
    Product Specifications:
    • WAN Interface: 1x GE, 1x Embedded LTE Modem, 1x USB Interface, 1x Expansion Modules (Option)
    • Number of PepVPN SpeedFusion Peers: 5
    • LAN Interface: 4x GE
    • Wi-Fi Interface: Simultaneous 802.11ac wave 2/ac/a/n and 802.11b/g/n
    • Stateful Firewall Throughput: 900Mbps
    • PepVPN/ SpeedFusion Throughput: No Encryption: 100Mbps, 256-bit AES: 60 Mbps
    • Recommended Users: 1-60
    • Downlink/ Uplink data rate: 150Mbps / 50Mbps (LTE Modem)
    • Power Input: DC Jack: 10V-30V
    • Power Consumption 28W (max)
    • Operating Temperature: 14° - 113° F/ -10° - 45° C
    • Humidity: 15% - 95% (non-condensing)
    • Certifications: FCC, CE, RoHS
    • Warranty: 1-Year Limited Warranty
    • WAN: Support for PPPoE, Static IP, DHCP, WAN Link Health Check: PING, IPv6 Support, DNS Lookup, HTTP
    • Bandwidth Allowance Monitor
    • USB 4G/3G Modem Support
    • Intelligent Failover
    • Support for Dynamic DNS services: changeip.com, dyndns.org, no-ip.org, tzo.com, DNS-O-Matic
    • LAN: DHCP Server for LAN Clients, Extended DHCP Option, DHCP Reservation, DNS Proxy for LAN Clients, VLAN on LAN Support, Per-Port VLAN Support
    Product Includes:
    (1) Balance 20X
    (2) SMA Antenna Connectors (ACW-813)
    (2) RP-SMA Wi-Fi Antenna Connectors (ACW-341)
    (1) GPS SMA Antenna Connectors (ACW-232)
    (1) 12V 3A PSU (ACW-602)
