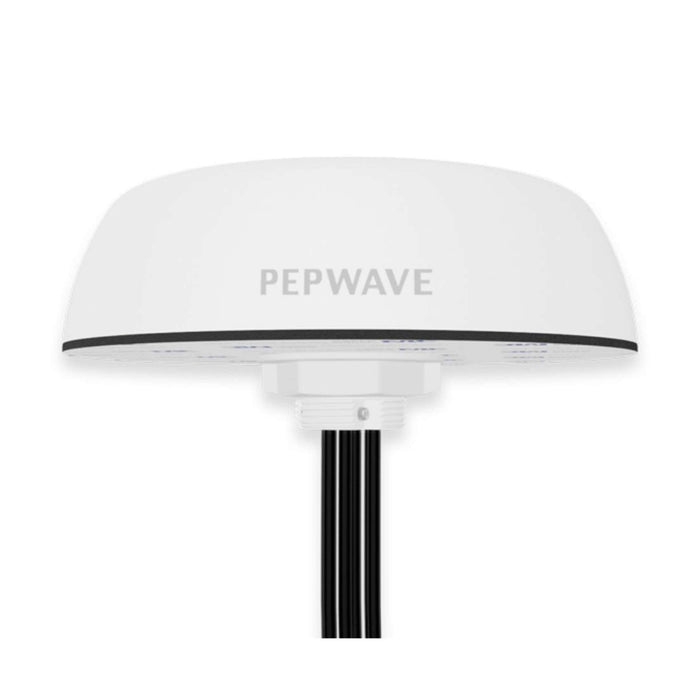

    Peplink 7-in-1 Cellular & Wi-Fi Antenna System with GPS Receiver

    ANT-MB-42G-S-W-6 by Peplink
    $284.95 - $284.95
    $284.95
    $284.95 - $284.95
    $284.95
    Extend Product Protection

    Built for 5G
    Omni-directional 4x4 MIMO mobile antenna for the best performance.

    Easy installation
    Simple panel, wall or pole installation for various applications.

    Ultra wide bandwidth
    Wide frequency range (600-6000MHz) supporting LTE and 5Gconnectivity.

    Wi-Fi
    4x4 MIMO dual band (2.4GHz & 5GHz) high gain omnidirectional antennas for local coverage.

    Robust design
    IP68 rated, low profile and durable housing in Black or White color options


    Product Specifications:

    • Frequency range: 1561-1602 MHz
    • Peak Gain & Frequencies: 0.5dBi@1575MHz, 1.6dBi@1602MHz
    • VSWR < 2 dB
    • Output return loss 10dB max
    • LNA Gain 28 ±3dB
    • Noise figure 1.5dB max at 3.3V
    • Operating Voltage 3.3V
    • Power consumption 8.5 ±2.5mA at 3.3V
    • Supported types: Panel, wall, pole
    • Mounting hole: 1 11/16" / 43mm
    • Max panel thickness: 19/32" / 15mm
    • IP rating: IP68
    • Operating temperature: -40°F - 176°F (-40°C - 80°C)
    • Storage temperature: -40°F - 176°F (-40°C - 80°C)
    • Compliance: RoHS, REACH, WHEE


    Product Includes:


    (1) Mobility 42G

    (1) Wall/pole mount

    (1) Double sided 3M adhesive pad

    (spigot not included)
