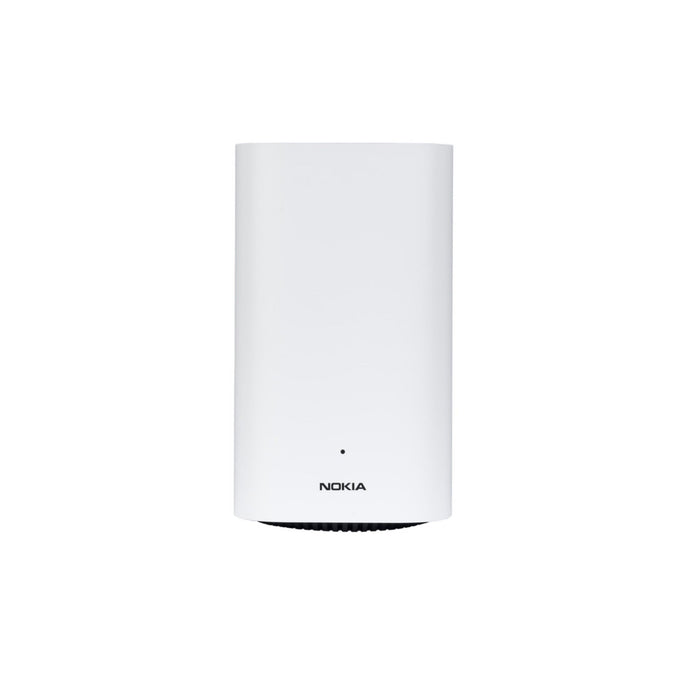

Nokia Beacon 2 US Plug 1 pack 2xGE UNI Wifi6 2+2

Physical

• Height: 168mm (6.6 in)

• Width: 96mm (3.8 in)
• Depth: 96mm (3.8 in)
• Weight: 0.45 kg (1.0 lb)

Operating Environment

• Temperature: -5C to 45C (23F to 113F)

• Relative humidity: 5% to 95%, non-condensing

Power Requirements

• Local powering: 12 V DC input (external AC/DC adapter)

• Power consumption - nominal: 4.9 W

• Power consumption - maximum: 12.8 W

Router Mode

• IPv4 and IPv6 connectivity: Dual stack and DS Lite, stateless and stateful auto-configuration, DHCPv6 prefix delegation

• Point-to-Point Protocol: Ethernet (PPPoE) and IP over Ethernet (IPoE)

• Network Address Translation (NAT): Port forwarding, demilitarized zone (DMZ) and firewall

• Dynamic Host Configuration Protocol (DHCP): Domain name system (DNS) proxy and dynamic domain name system (DDNS)

• Internet Group Management Protocol (IGMP): v2/v3 proxy Multicast Listener Discovery (MLD) proxy

• Virtual private network (VPN): Pass through for Point-to-Point Tunneling Protocol (PPTP), Layer 2 Tunneling Protocol (L2TP) and IPSec

Wireless LAN interfaces

• 802.11b/g/n/ax 2.4 GHz: 2x2 MIMO

• 802.11a/n/ac/ax 5 GHz: 2x2 MIMO

• Maximum effective: Isotropic radiated power (EIRP) on 2.4 GHz up to 3 W and 5 GHz up to 1.5 W

• Wired Equivalent Privacy (WEP) support: 64-bit and 128-bit

• WiFi Protected Access (WPA) support: Including Pre-Shared Key (WPA-PSK), WPA2 and WPA3

• Filters: Media access control (MAC)

Ethernet interfaces

• WAN side: One 10/100/1000Base-T interface with RJ-45 connector

• LAN side: One 10/100/1000Base-T interface with RJ-45 connector

Backhaul

• Hybrid backhaul: Backhaul over Ethernet cable or Wi-Fi (5GHz and 2.4GHz) are supported

• Fast rerouting: Fast rerouting from one backhaul link to another in as little as 500ms
