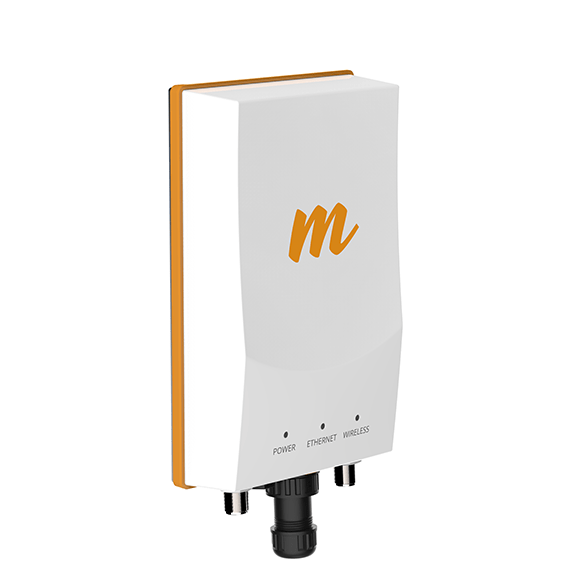

    Mimosa Connectorized Backhaul Radio 4900-6000MHz 1Gbps GPS-synch 802.11ac MiMO 4x4:4 N-Female

    B5c by Mimosa
    Sold out
    $558.00 - $558.00
    $558.00
    $558.00 - $558.00
    $558.00
    Extend Product Protection

    Half-link, need to purchase 2 units of this product to make a complete link


    Pair up this radio with Jirous Parabolic Dishes, some of the best of antennas on the market today or for even a less expensive solution pair it up with the IgniteNet 2ft parabolic dish.


    Additional discount available. Please call 1-888-929-3610 or contact us at sales@balticnetworks.com for details.


    Choose your own antenna. Mimosa provides flexibility! The B5c connectorized radio is changing the way we do wireless. The B5c connectorized radio leverages 802.11ac, 4x4:4 MIMO and excellent engineering for service providers that demand the same capacity, speed and reliability as fiber. It comes with 1.7Gbps PHY and a unique spin on reliability, the B5c is redefining gigabit wireless technology. The B5c is capable of 1Gbps throughput and a low 2ms latency. The B5c can be paired with most dual-polarized antenna and is operational from a frequency of 4900-6000MHz. The B5c brings with it an entirely new set of features never seen before in the outdoor wireless market.


    Product Features:
    • Massive bandwidth
    • Customization
    • Outdoor UV stabilized plastic
    • Weatherproof IP67 rating
    • Gigabit Ethernet: 10/100/1000-BASE-T
    • Wind durability up to 200 km/h (125 mph)
    • Hands-free dedicated 2.4 GHz Wi-Fi management radio
    • Smart spectrum management
    • Active scan monitors/logs ongoing RF interference across channels (no service impact)
    • Dynamic auto-optimization of channel and bandwidth use


    Product Specifications:
    • Max throughput: Up to 1.5Gbps IP aggregate UL/DL (1.7Gbps PHY)
    • Low latency: 2+ms
    • Wireless protocols: TDMA, TDMA-FD
    • MiMO & Modulation: 4x4:4 MiMO OFDM up to 256QAM
    • Bandwidth: Single or dual 20/40/80 MHz channels
    • Frequency range: 4900-6000MHz (country restrictions may apply) (*new* US/FCC 5600-5650 support)
    • Max output power: 30dBm (2-stream), 27dBm (4-stream)
    • Max power consumption: 20W
    • Power method: 48VDC, 802.3 PoE
    • ESD Protection: 6kV
    • Connector type: 2 x female type N
    • Operating Temperature: -40deg C to +55deg C (-40deg F to 131deg F)
    • Security: 128-bit AES PSK with hardware
    • QoS: Supports 4 pre-configured QoS levels
    • Approvals: FCC part 15.407, IC RS10, CE, ETSI 301 893/302 502
    • RoHS compliance: Yes
    • Safety: UL/EC/EN/ 60950-1 + CSA-22.2
    Product Includes:
    • B5c
    • Pole mounting kit
    • PoE Injector
    Mimosa products are not eligible for exchange or credit. Returns accepted only with warranty.
