    MikroTik QRT-5 5GHz AP (1000mW, Gigabit) 23dBi Dual-Pol Integrated Antenna US Version

    RB911G-5HPnD-QRT-US by MikroTik
    MikroTik RB911G-5HPnD-QRT-US Datasheet
    Sold out
    $169.00 - $169.00
    $169.00
    $169.00 - $169.00
    $169.00
    Extend Product Protection

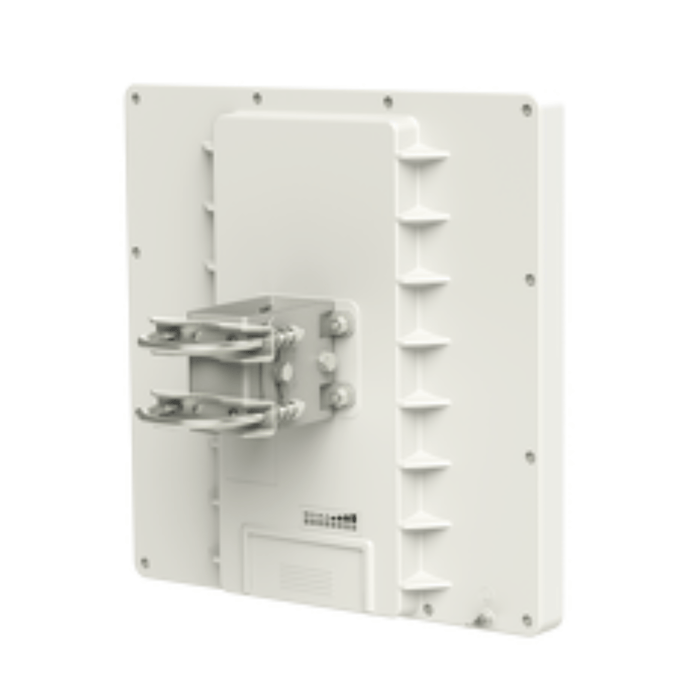

    The QRT 5 is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 23dBi antenna and a high power 5GHz wireless transmitter. Inside is the high power RB911 dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilize the benefit of 802.11n high speed wireless. Easy to use and quick to deploy, QRT is ideal for point to point links.


    RB911G-5HPnD-QRT-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.


    Product Features:

    • CPU: Atheros AR9342 600MHz network processor
    • Memory: 64MB DDR onboard memory
    • Data storage: 128MB NAND memory chip
    • Ethernet: One Gigabit port with Auto-MDI/X
    • Extras: Beeper, signal and status LEDs, voltage and temperature sensors

    Product Specifications:

    • Frequencies: 4.9-5.875 GHz
    • Gain: 23 ± 1 dBi
    • VSWR: 1.37 : 1
    • 3 dB Beam-Width, H-Plane:10.5°
    • 3 dB Beam-Width, E-Plane, typ.: 10.5°
    • Polarization: Dual, Vertical and horizontal
    • Port to Port Isolation: -50 dB
    • Cross Polarization, min.: -25 dB
    • Front to Back Ratio, min.: 35 dB
    Product Includes:

    • (1) RB911G-5HPnD-QRT-US
    • (1) QRT Antenna Mount
    • (2) U Bolts
    • (1) U Mast Clamp
    • (1) K-QRT Screw Kit
    • (1) 24V 0.8A Power Adapter
    • (1) Gigabit PoE Injector
