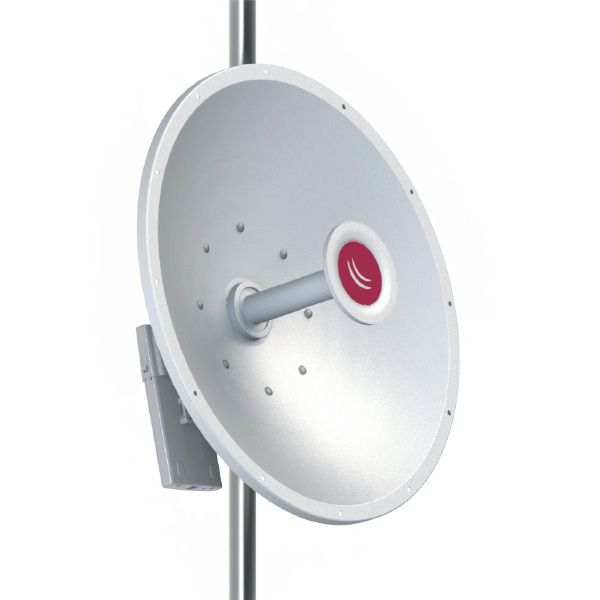

MikroTik mANT30 Antenna 4.7-5Ghz 30dBi Dual-Pol 45deg Slant Dish with Precision Alignment Mount (RP-SMA patch cables included) 4-PACK
The MikroTik MTAD-5G-30-series is a carrier-class 30dBi antenna, designed to seamlessly with MikroTik Basebox for a backhaul Point to Point link. Installing the BaseBox onto the antenna requires no special tools, you simply snap it into place with the mounts provided and voila! a powerful long-range Point to Point link is at your fingertips.
Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.
This dish can be adjusted to a slanted polarization at 45deg.
Slant Features:
- Reduce RF interference in signal congested areas
- Reduce the impact on local microwave devices
- Unify the channel output if link deployed over a body of water
Product Specifications
- Frequency Range: 4.7-5.875 GHz
- Gain: 30 dBi typically
- Dual Polarization: Vertical and Horizontal
- 3dB Beamwidth: +/-2.5 deg
- Standards: Complies with EN 302 326 DN1, DN2, DN3, DN5
- VSWR: ≤ 1.4 typ, ≤ 1.8 max
- Port to Port Isolation: >40dB min
- Front-to-Back Ratio: >30 dB
- Cross Polarization: >40 dB
- Power Rating: 100 watts
- Impedance: 50 ohms
- Elevation adjustment range: +/- 15 deg
- Reflector: Aluminum
- Outdoor Rating: ETSI EN 300 019-2-4
- Wind Survivability: 125mph (201kph)
- Wind Load (125 mph): 400 lbs, 174 lbs with radome
- Connector (2): Type RPSMA
Product Includes:
(1) Dish Antenna
(2) RP-SMA Male to RP-SMA Male Cables
(1) Mounting Bracket for BaseBox Radio
(1) Self-Bonding Tape for Insulating RF Cables
Precise Alignment Mechanisms
