MikroTik CRS504 4x QSFP28 100Gbps Outdoor IP66 Cloud Router Switch [CRS504-4XQ-OUT]

Affordable, compact, energy-efficient 100 Gbps networking anytime, ANYWHERE! IP66 weatherproof enclosure, 4x 100 Gigabit ports, multiple powering options.

Should high-quality 100 Gigabit connectivity be limited to indoors only? Definitely not! That’s why we created the CRS504-4XQ-OUT: a versatile, cost-effective, ultra-fast weatherproof switch for all your outdoor needs.

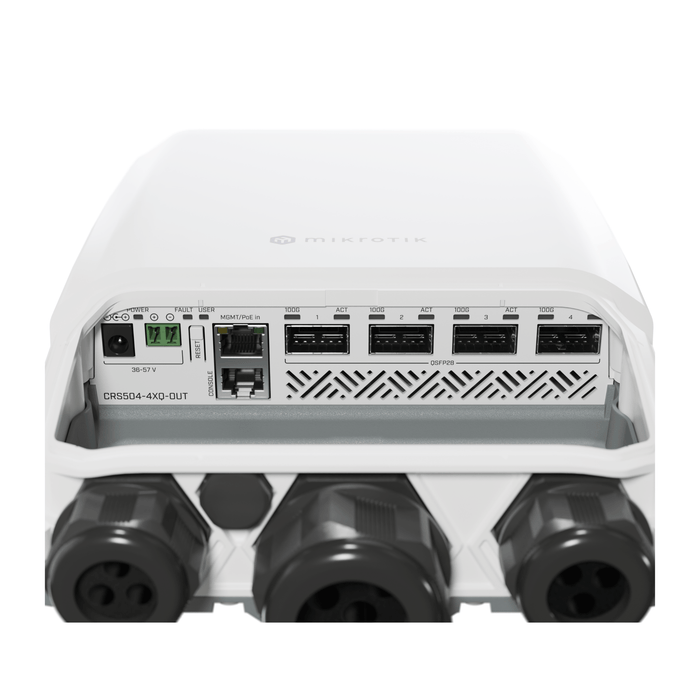

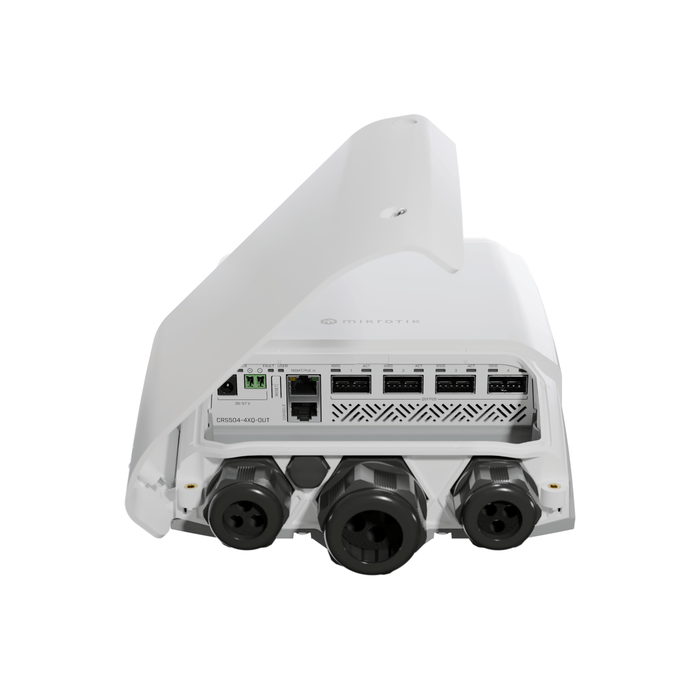

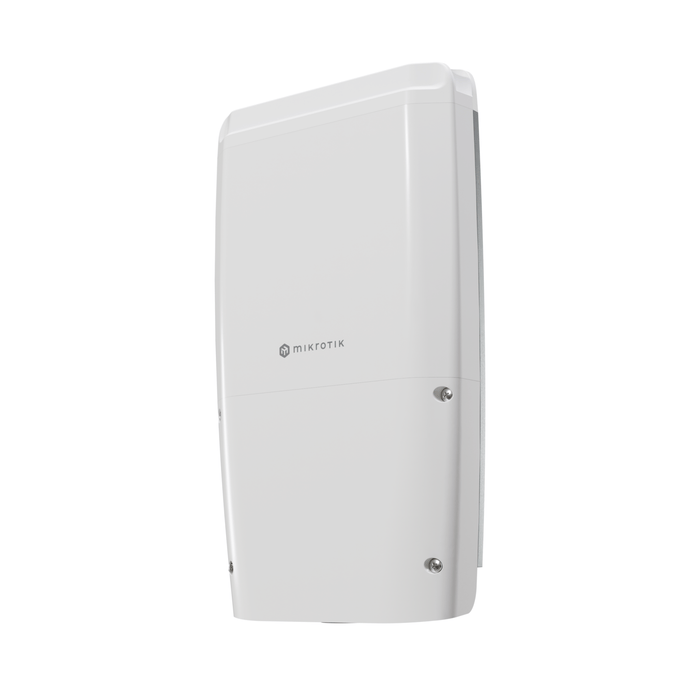

At the core of this masterpiece, we have an incredible Marvell Prestera switch chip. And there are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices. Here’s where the speedy switch chip really shines: each port is connected to four 25 Gigabit lines. That means you’re getting up to 16 high-speed fiber interfaces from a single outdoor switch! You can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. And all this versatility comes in a sturdy, weatherproof IP66-rated enclosure. This rating proves it’s strong enough to handle powerful water jets from any direction!

When it comes to outdoor event planning, you can never be too prepared. So having multiple powering options is a must! And CRS504-4XQ-OUT has got you covered: there’s a standard DC jack, a 2-pin terminal, and 802.3bt PoE-in. We’ve also kept the good old management and console ports – to help you deal with any unexpected situations.

Performance-wise, CRS504-4XQ-OUT is a real workhorse that can handle VLANs, ACL, MLAG, Jumbo frames, and so much more – even some L3 hardware offloading! The mighty Marvell Prestera switch chip dominates most tasks without blowing the power consumption up – only up to 25W (without attachments).

Stop waiting for the perfect weather – invest in the perfect tools!

Product Specifications:

• Product code: CRS504-4XQ-OUT
• Architecture: MIPSBE
• CPU: QCA9531
• CPU core count: 1
• CPU nominal frequency: 650 MHz
• Switch chip model: 98DX4310
• RouterOS license: 5
• Operating System: RouterOS v7, License level 5
• Size of RAM: 128 MB
• Storage size: 32 MB
• Storage type: FLASH
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• 10/100 Ethernet ports: 1
• Number of 100G QSFP28 ports: 4

Powering:

• Number of DC inputs: 3 (DC jack, PoE-IN, 2-pin terminal)
• DC jack input Voltage: 36-57 V
• 2-pin terminal input Voltage: 36-57 V
• Max power consumption: 38 W
• Max power consumption without attachments: 25 W

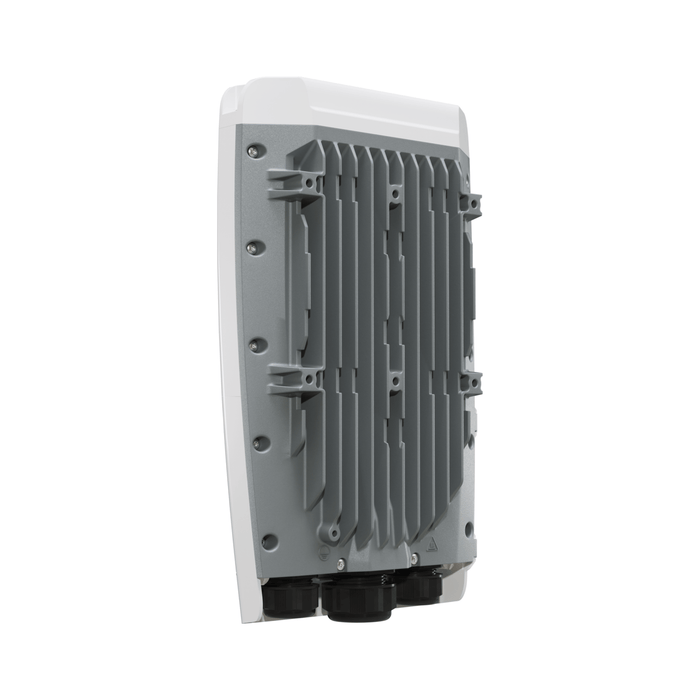

• Cooling type: Passive
• PoE in: 802.3 bt
• PoE in input Voltage: 43-57 V

Product Includes:

(1) MikrTik CRS504-4XQ-OUT

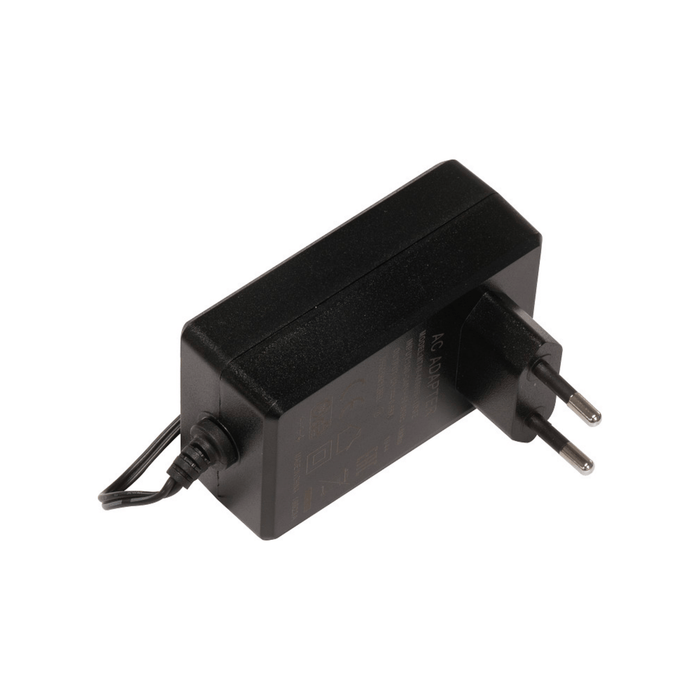

(1) 48 V 0.95 A power adapter

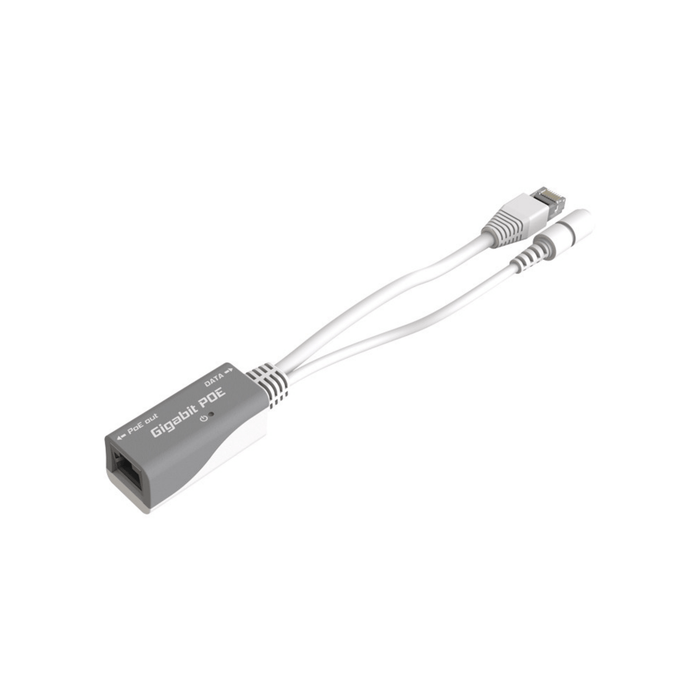

(1) Gigabit PoE injector

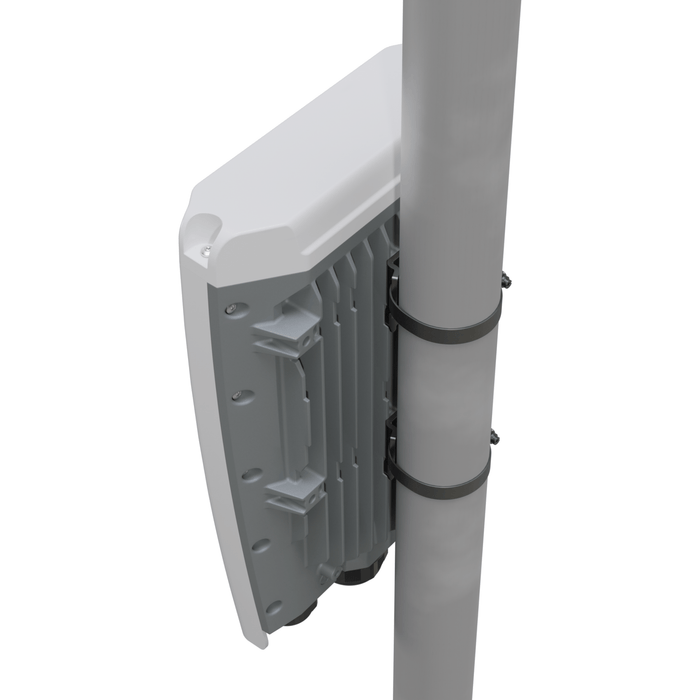

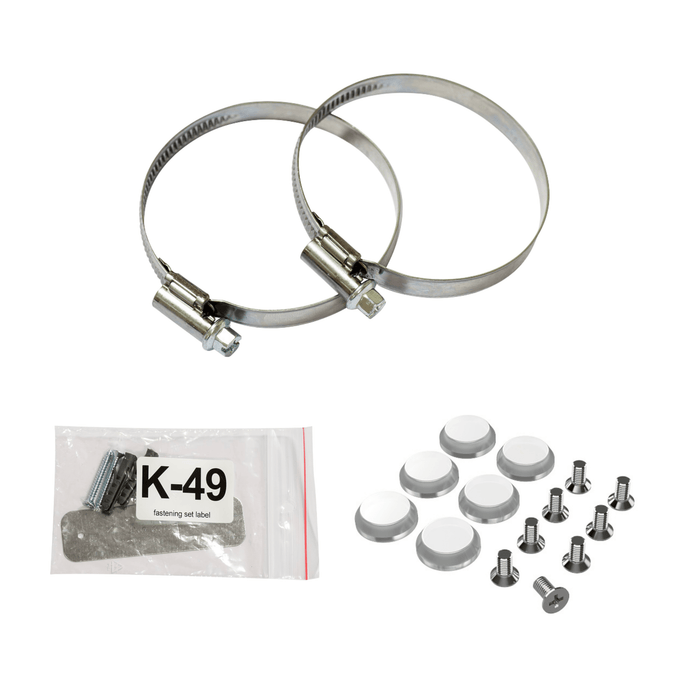

(2) Hose clamp

(1) Screw set

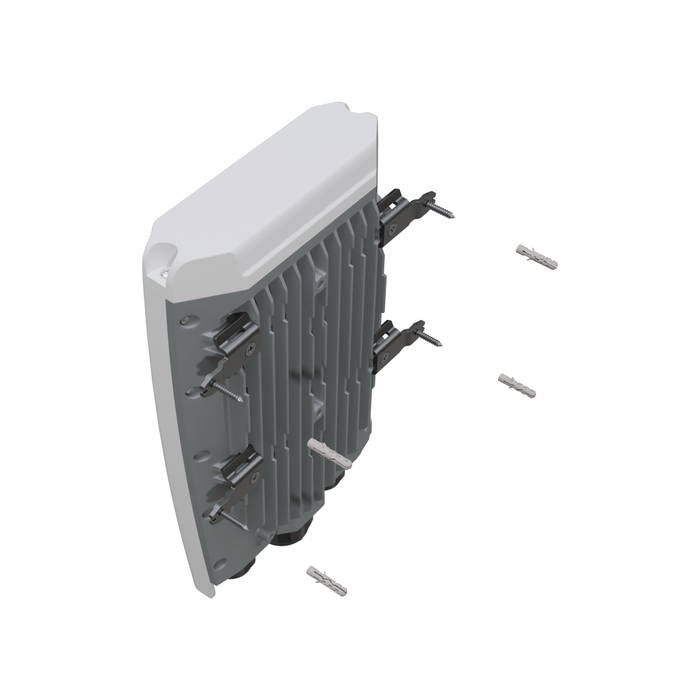

(1) Fastening set
