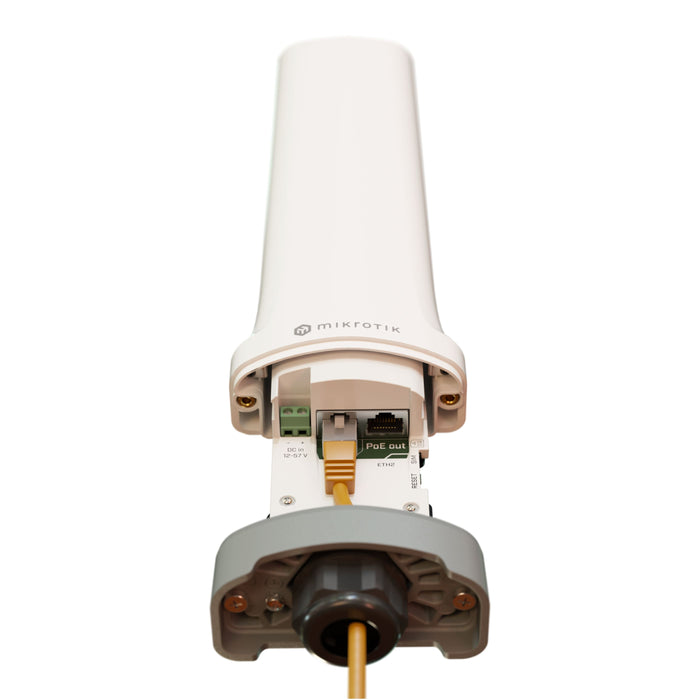

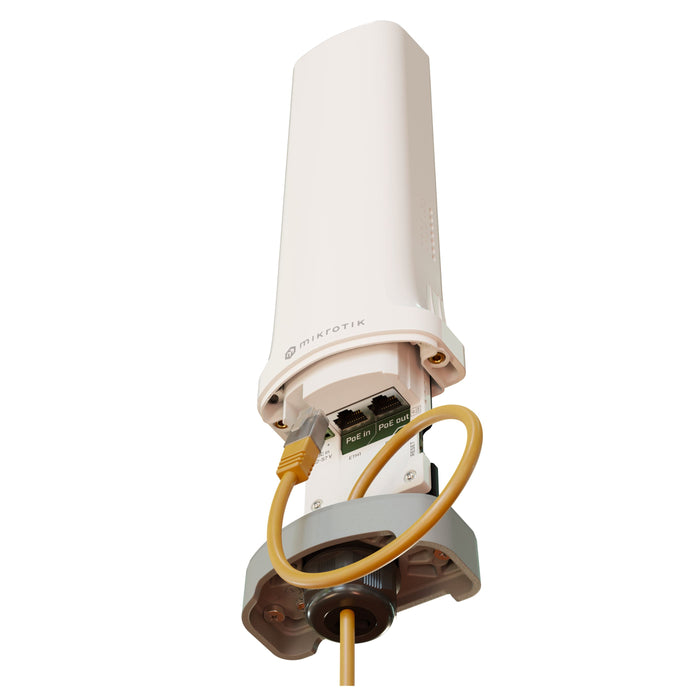

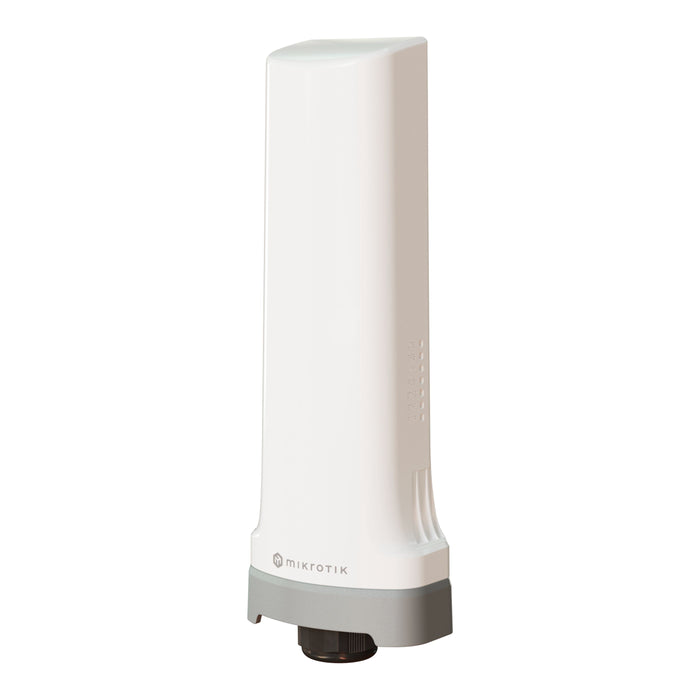

MikroTik CME Gateway with RouterOS L4 [CME22-2n-BG77]

The MikroTik CME Gateway with RouterOS L4 [CME22-2n-BG77] is a rugged low-cost, low-bandwidth modem to connect Ethernet devices to mobile network... on the tightest budget ever!

Are you tired of wired sensor limitations? Wouldn’t it be nice if legacy devices - like electricity meters - could send their data over the mobile network, like our phones do? With the MikroTik CME Gateway you can achieve just that – and more!

It has two Ethernet ports, an on-board CPU, some RAM, and the crown jewel: a powerful built-in CAT-M narrow-band LTE modem. For extremely efficient, low-cost, low-bandwidth mobile internet connectivity. Sure, the narrowband won’t be able to stream YouTube videos, but it serves a different purpose: it offers better network coverage and transmits data via the most affordable data plans in the world.

With the IP65 water resistance rating, the sturdy unit can survive a variety of harsh environments and setups: damp attics, rainy forests, farming equipment and so on. It has PoE-in, PoE-out, and a 2-pin DC terminal for handy powering. And to make management even easier - MikroTik added a simple single-chain 2.4 GHz wireless - so you can use the MikroTik smartphone app to configure everything.

Also, a fun bonus: the board supports GPS, so if you know your way around RouterOS scripting, you can try collecting weekly, daily or even hourly location data as well!

Product Specifications:

• Product code: CME22-2n-BG77
• Architecture: MIPSBE
• CPU: QCA9531
• CPU core count: 1
• CPU nominal frequency: 650 MHz
• Switch chip model: QCA9531
• RouterOS license: 4
• Operating System: RouterOS v7
• Size of RAM: 64 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 100'000 hours at 25C
• Tested ambient temperature: -40°C to 70°

Product Includes:

• (1) CME Gateway
• (1) 48 V 0.95 A power adapter
• (1) Gigabit PoE injector
• (1) Metal ring (one)
