Mikrotik 802.11ac MiniPCIe 500mW 4.9-6.1GHz (2 MMCX connectors)

The new AC standard is here, with up to 866Mbit datarate and 256-QAM modulation and 80MHz channels. 802.11ac opens up new possibilities and speeds never possible before.

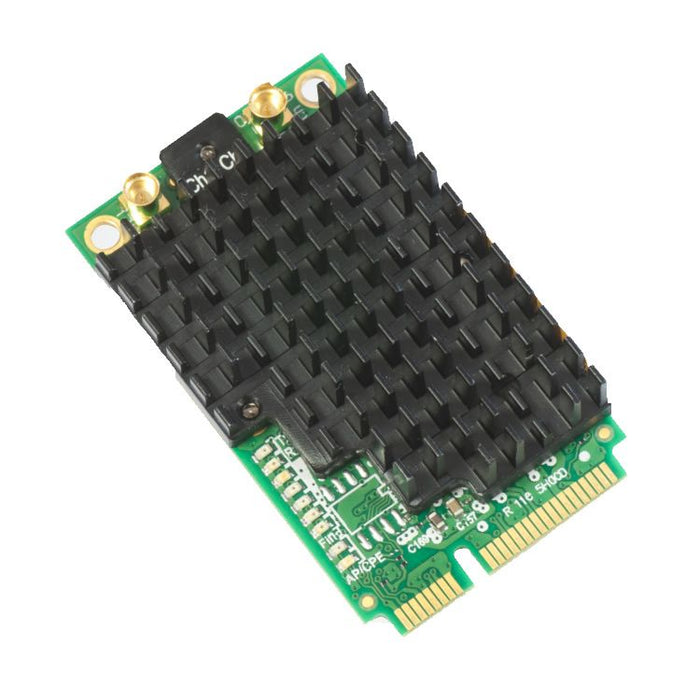

R11e-5HacD is MikroTik's new 802.11ac card in miniPCIe format, perfect for any RouterBOARD with miniPCIe slot, such as RB953, RB912, RB800 or x86 devices with RouterOS.

The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.

• Chipset: QCA9882
• Frequency range: 4920-6100 MHz, Operating range limited by Country Regulations
• Standards: 802.11ac
• Max output power: 500 mW
• Format: miniPCIe
• Dimensions: 50x30x13mm
• Connectors: 2x MMCX
• Features: 9 LED indicators, ESD protection
• Temperature: Starting -5C to +65C; Operating -30C to +65C
• MAX power consumption: 4.5W
