    MikroTik 802.11a/n 5GHz 500mW MiniPCI-Express Wireless Card (with 2 MMCX connectors)

    R11e-5HnD by MikroTik
    MikroTik R11e-5HnD Datasheet
    $39.00 - $39.00
    $39.00
    $39.00 - $39.00
    $39.00
    Extend Product Protection

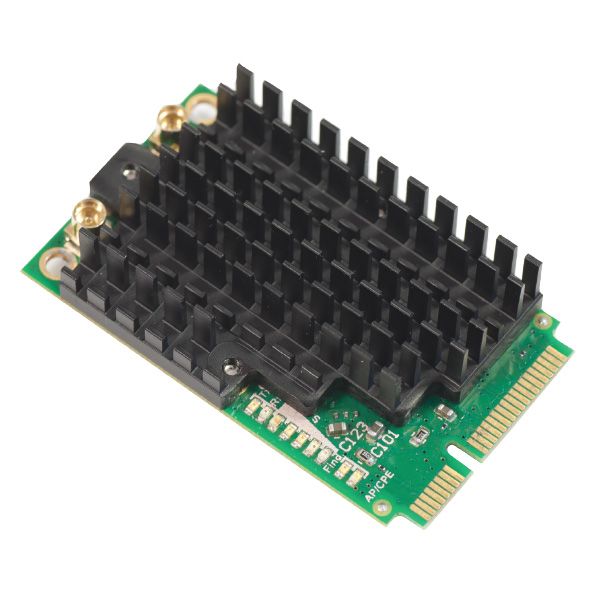

    R11e-5HnD is a high power wireless card in miniPCI-e format. Ideally suited for the new RB912 series, RB800 or our new miniPCIe adapter card - RB14e. This card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength.


    Product Features:

    • 9 LED Indicators
    • ESD Protection


    Product Specifications:

    • Chipset: AR9580
    • Frequency Range: 4920-5920MHz
    • Standards: 802.11a/nā€¢ Max Output Power: 500mW
    • Format: miniPCIe
    • Dimensions: 51x30x13mm
    • Connectors: 2x MMCX
    • MAX Power Consumption: 5W
    • TX/RX at MCS0: 26dBm / -96dBm
    • TX/RX at MCS7: 23dBm / -76dBm
    • TX/RX at 6Mbit: 27dBm / -96dBm
    • TX/RX at 54Mbit: 24dBm / -76dBm
