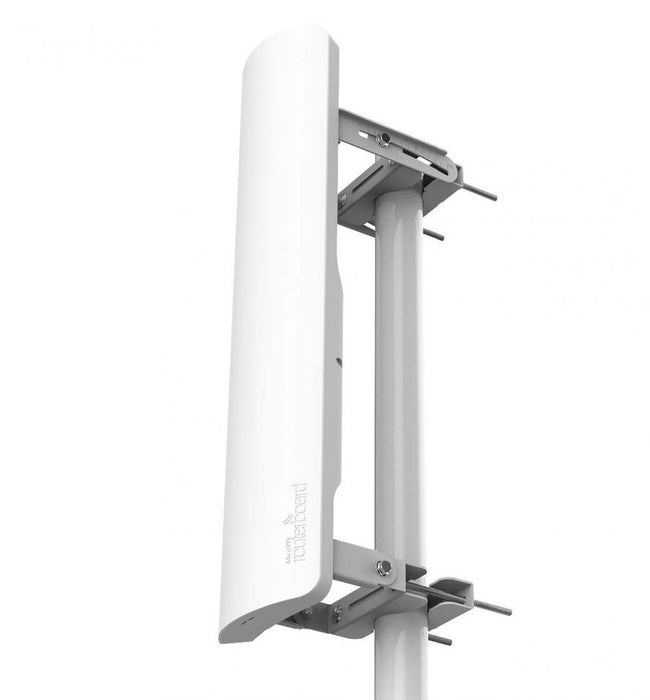

    MikroTik 5GHz 19dBi mANT19s Dual-Pol Sector Antenna (2 x RP-SMA connectors)

    MTAS-5G-19D120 by MikroTik
    MikroTik MTAS-5G-19D120 Datasheet
    $99.00 - $99.00
    $99.00
    $99.00 - $99.00
    $99.00
    Extend Product Protection

    The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device. The mANT is a dual-polarization antenna with two RP-SMA connectors, it comes in two sizes, the 15dBi model and the 19dBi model. Both antennas have 120 degree beamwidth. The mANT19s comes with metallic U bolt type mounts.


    Product Specifications:
    • Antenna Gain: 19dBi
    • Frequency Range: 5.17-5.825GHz
    • Polarization: Vertical and horizontal
    • 3DB Beamwidth - azimuth: 120deg
    • 3DB Beamwidth - elevation: 5deg
    • VSWR: 1,43typ, 1.8max
    • Port to port isolation: >40dB min
    • Front-to-back ratio: >30dB
    • Cross Polarization: >30dB
    • Connector: 2 x RP-SMA
