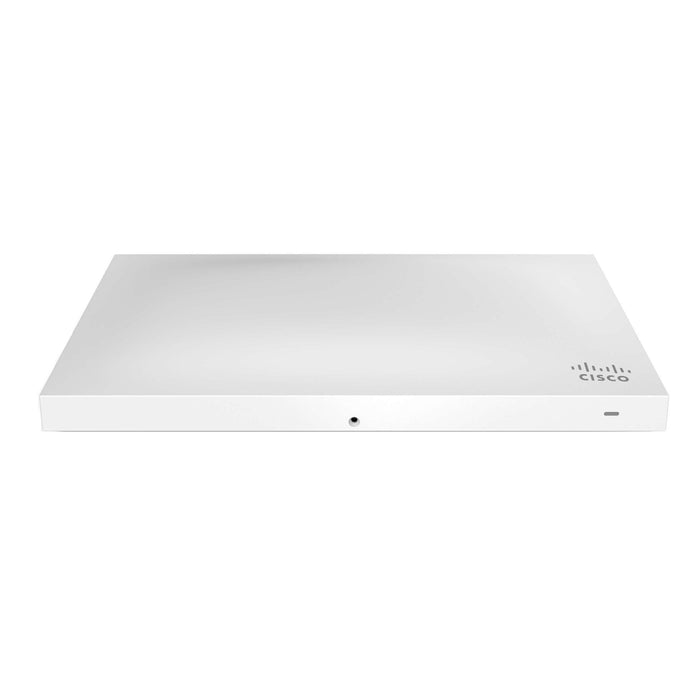

Meraki Dual-Band 1.90Gbps 2.4/5GHz Wave 2 Wireless Ceiling Mountable Access Point

Meraki Dual-Band 1.90Gbps 2.4/5GHz wave 2 wireless ceiling mountable access point is a four radio, cloud-managed 3x3 MU-MIMO access point. Designed for next-generation deployments in offices, schools, hospitals, shops, and hotels, the MR42 offers performance, security, and simple management. The MR42 provides a maximum 1.9 Gbps frame rate with concurrent 802.11ac Wave 2 and 802.11n 3x3:3 MIMO radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization. In addition, an integrated fourth radio delivers Bluetooth Low Energy (BLE) scanning and Beaconing functionality.

Features
» 3x3:3 MU-MIMO 802.11ac Wave 2» 1.9 Gbps aggregate dual-band frame rate» 24x7 real-time WIDS/WIPS and spectrum analytics via dedicated third radio» Integrated Bluetooth Low Energy Beacon and scanning radio» Enhanced transmit power and receive sensitivity» Full-time WiFi location tracking via dedicated 3rd radio» Integrated enterprise security and guest access» Application-aware traffic shaping» Optimized for voice and video» Self-configuring, plug-and-play deployment» Sleek, low-profile design blends into office environments

Radios

• 2.4 GHz 802.11b/g/n client access radio
• 5 GHz 802.11a/n/ac client access radio
• 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio
• 2.4 GHz Bluetooth radio with Bluetooth Low Energy (BLE) and Beacon support
• Concurrent operation of all four radios
• Max aggregate frame rate 1.9 Gbit/s
• Supported frequency bands (country-specific restrictions apply):
      2.412-2.484 GHz
      5.150-5.250 GHz (UNII-1)
      5.250-5.350 GHZ (UNII-2)
      5.470-5.600, 5.660-5.725 GHz (UNII-2e)
      5.725 -5.825 GHz (UNII-3)

• Integrated omni-directional antennas (5 dBi gain at 2.4 GHz, 5.5 dBi gain at 5 GHz)
• Individual antenna elements for each radio

• 3 x 3 multiple input, multiple output (MIMO) with three spatial streams
• SU-MIMO and MU-MIMO support
• Maximal ratio combining (MRC) & beamforming
• 20 and 40 MHz channels (802.11n), 20, 40, and 80
• MHz channels (802.11ac)
• Up to 256-QAM on both 2.4 GHz & 5 GHz
• Packet aggregation

• Power over Ethernet: 37 - 57 V (802.3at required with functionality-restricted 802.3af mode supported)
• Alternative 12 V DC input
• Power consumption: 20W max (802.3at)
• Power over Ethernet injector and DC adapter sold separately

• 1x 10/100/1000Base-T Ethernet (RJ45)
• 1x DC power connector (5.5 mm x 2.5 mm, center positive)

• All standard mounting hardware included
• Desktop, ceiling, and wall mount capable
• Ceiling tile rail (9/16, 15/16 or 1 ½” flush or recessed rails), assorted cable junction boxes
• Bubble level on mounting cradle for accurate horizontal wall mounting

• Two security screw options (included)
• Kensington lock hard point
• Concealed mount plate with anti-tamper cable bay

• Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Humidity: 5 to 95% non-condensing

• 10.0” x 6.1” x 1.5” (253.4 mm x 155.8 mm x 37.1 mm), not including desk mount feet or mount plate
• Weight: 25 oz (0.7kg)

• Integrated Layer 7 firewall with mobile device policy management
• Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
• Flexible guest access with device isolation
• VLAN tagging (802.1q) and tunneling with IPsec VPN
• PCI compliance reporting
• WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
• EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
• TKIP and AES encryption
• Enterprise Mobility Management (EMM) & Mobile
• Device Management (MDM) integration

• Advanced Power Save (U-APSD)
• WMM Access Categories with DSCP and
• 802.1p support
• Layer 7 application traffic identification and shaping

(1) User Guide

(2) Security Screws
