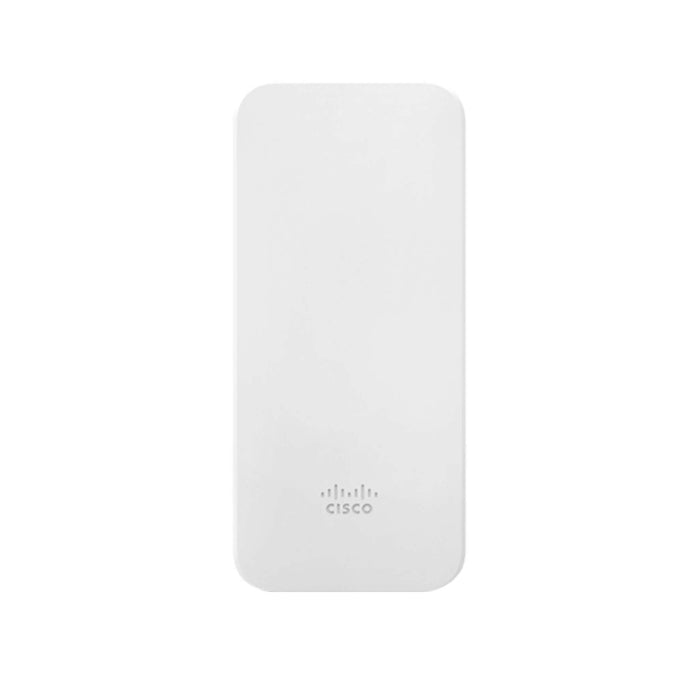

Meraki Dual-Band 1.30Gbps 2x2 802.11ac Wave 2 Ruggedized Outdoor Access Point

Meraki Dual-Band 1.30Gbps 2x2 802.11ac Wave 2 ruggedized outdoor access point is a dual-radio, cloud-managed 2x2:2 802.11ac Wave 2 access point with MU-MIMO support. Designed for basic, best-effort deployments that require rapid installation, the MR70 provides enterprise-grade security and simple management in a ruggedized, IP67-rated form factor that sports integrated omni directional antennas. The MR70 is ideal for municipal athletic fields, garages, public gardens, space-constrained outdoor deployments, and even rapid response emergency kits designed to quickly deliver wireless in disaster-struck areas. The MR70 provides a maximum 1.3 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios.

• 2x2 MU-MIMO 802.11ac Wave 2
• 1.3 Gbps* aggregate dual-band frame rate
• Integrated enterprise security and guest access
• Built-in WIPS for threat detection and remediation
• Application-aware traffic shaping
• Self-configuring, plug-and-play deployment
• Rapid, plug-and-play deployment
• Integrated location analytics and heat

• 2.4 GHz 802.11b/g/n/ac client access radio
• 5 GHz 802.11a/n/ac Wave 2 client access radio
• Supported frequency bands (country-specific restrictions apply):
      2.412-2.484 GHz
      5.150-5.250 GHz (UNII-1)
      5.250-5.350 GHZ (UNII-2)
      5.470-5.600, 5.660-5.725 GHz (UNII-2e)
      5.725-5.825 GHz (UNII-3)

• 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
• SU-MIMO and MU-MIMO support
• Maximal ratio combining (MRC) & Beamforming
• 20 and 40 MHz channels (2.4 GHz), 20, 40, and 80 MHz channels (5 GHz)
• Up to 256-QAM on both 2.4 GHz and 5 GHz bands
• Packet aggregation

• Power over Ethernet: 37-57 V (802.3af compatible)
• Power consumption: 11 W max (802.3af)
• Power over Ethernet injector sold separately

• Mounts to walls and vertical poles
• Mounting hardware included

• Security screw included

• Operating temperature: -4 °F to 131 °F (-20 °C to 55 °C)
• IP67 environmental rating
• Operating humidity: 5% to 95%

• 9.65” x 4.53” x 1.18” (245 mm x 115 mm x 30 mm)
• Weight: 15.87 oz (0.45 kg)

• Integrated omni-directional antennas (4.5 dBi gain at 2.4 GHz, 4.7 dBi gain at 5 GHz)

• 1x 100/1000 BASE-T Ethernet (RJ45)

• Integrated Layer 7 firewall with mobile device policy management
• Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
• Flexible guest access with device isolation
• VLAN tagging (802.1Q) and tunneling with IPSec VPN
• PCI compliance reporting
• WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
• EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
• TKIP and AES encryption
• Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

• Advanced Power Save (U-APSD)
• WMM Access Categories with DSCP and 802.1p support
• Layer 7 application traffic identification and shaping

(1) Mounting Kit

(1) User Guide
