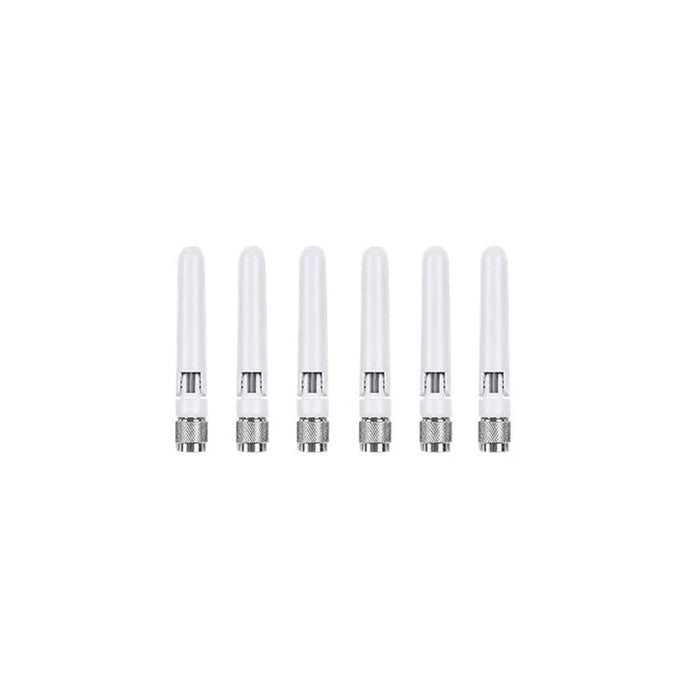

    Meraki Dipole Antenna Dual-Band 2.4GHz (3dBi) 5GHz (5.7dBi) 6-Pack

    MA-ANT-3-B6 by Meraki
    $235.39 - $235.39
    $235.39
    $235.39 - $235.39
    $235.39
    Extend Product Protection

    This product usually ships within 3-5 business days.


    Meraki Dipole Antenna Dual-Band 2.4GHz (3dBi) 5GHz (5.7dBi) 6-Pack is ideal for low ceiling installations where wall penetration or extended reach are important. Some example uses are low-density deployments like schools and hotels to provide basic low-performance connectivity. These types of best effort deployments usually have APs installed in the hallway to cover adjacent rooms. 6-Pack


    Compatible with Meraki MR53E


    Electrical
    • Antenna type: Dipole
    • Frequency range: 2.400-2.500, 5.150-5.875 GHz
    • Gain: 3.8 dBi (2.4) / 5.7 dBi (5)
    • Polarization: Linear, vertical/horizontal
    • Half power beam-width / horizontal: Omni
    • Half power beam-width / vertical: 40°
    Physical and Environmental
    • Dimensions: 3.05” x 0.57” (77.7 mm x 14.5 mm)
    • Weight: 0.076 oz (21.59 g)
    • Material: PC-ABS
    • Temperature: 32 °F to 104 °F (0 °C to 40 °C)
    • Humidity: 5% to 95%
    • Connector: RP-TNC
    • 1 year hardware warranty included
