    Meraki Dipole Antenna Dual-Band 2.4GHz (3dBi) 5GHz (5.5dBi) 5-Pack - Meraki - (Dev) Baltic Networks

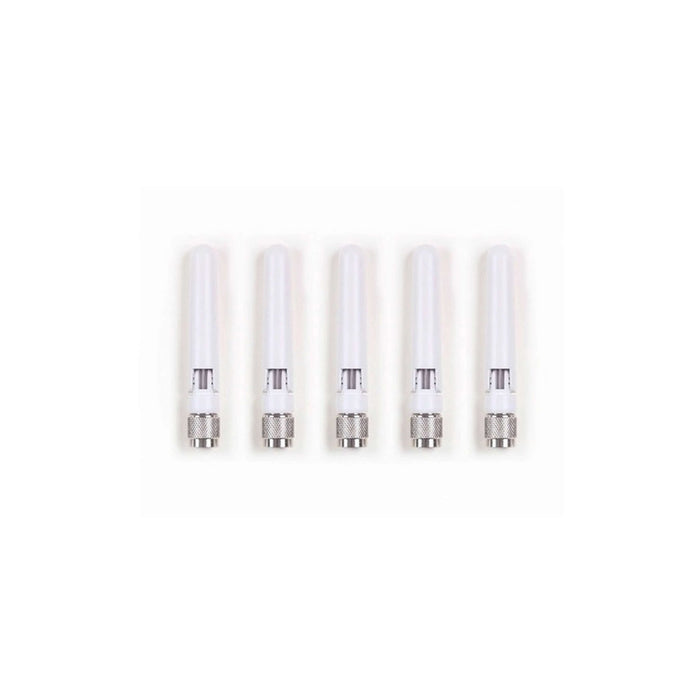

    Meraki Dipole Antenna Dual-Band 2.4GHz (3dBi) 5GHz (5.5dBi) 5-Pack

    MA-ANT-3-A5 by Meraki
    $199.90 - $199.90
    $199.90
    $199.90 - $199.90
    $199.90
    Extend Product Protection

    This product usually ships within 3-5 business days.


    Meraki Dipole Antenna Dual-Band 2.4GHz (3dBi) 5GHz (5.5dBi) 5-Pack is ideal for low ceiling installations where wall penetration or extended reach are important. is ideal for low ceiling installations where wall penetration or extended reach are important. Some example uses are low-density deployments like schools and hotels to provide basic low-performance connectivity. These types of best effort deployments usually have APs installed in the hallway to cover adjacent rooms. 5-Pack


    Compatible with Meraki MR42E


    Electrical
    • Antenna type: Dipole
    • Frequency range: 2.400-2.500, 5.150-5.875 GHz
    • Gain: 3.8 dBi (2.4) / 5.5 dBi (5)
    • Polarization: Linear, vertical/horizontal
    • Half power beam-width / horizontal: Omni
    • Half power beam-width / vertical: 40°
    Physical and Environmental
    • Dimensions: 3.05” x 0.57” (77.7 mm x 14.5 mm)
    • Weight: 0.076 oz (21.59 g)
    • Material: PC-ABS
    • Temperature: 32 °F to 104 °F (0 °C to 40 °C)
    • Humidity: 5% to 95%
    • Connector: RP-TNC
    • 1 year hardware warranty included
