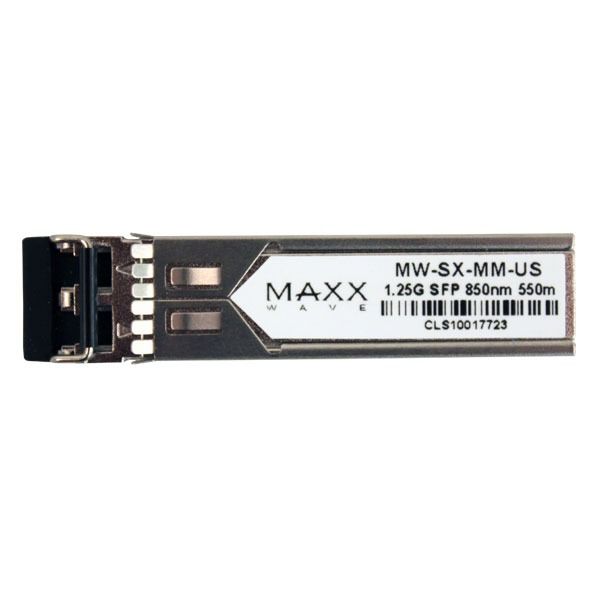

    Maxxwave Multi-Mode DDM SFP Fiber Module

    MW-SX-MM-US by Maxxwave
    Sold out
    $56.95
    $56.95 - $56.95
    $56.95
    $29.95
    $29.95 - $29.95
    $29.95
    Extend Product Protection

    The new Maxxwave multi-mode fiber module enable uncompromised high-speed routing with our new fiber solutions. The modules are small-form-factor pluggable for bi-directional serial optical data communications.


    Compatible with Maxxwave, MikroTik, Cisco, Ubiquiti and most other SFP fiber module devices!


    General Product Features
    • Operating data rate up to 1.25Gbps
    • Maximum Receive Power: >+5dB
    • Singer 3.3V Power supply and TTL Logic interface
    • Duplex LC Connector Interface
    • Hot Pluggable
    • Compliant with MSA SFP Specification
    • DDM Capabilities
    • Cisco / MikroTik compatible
    Multi-Mode Module Features
    • 850nm FP LD Laser Transmitter
    • Distance up to 550m with 50/125μm MMF *
        * Will work up to 100m with 62.5/125μm MMF


    Mechanical/ Environmental

    • Form Factor: SFP type port
    • Operating Temp: 0ºC ~70ºC
    • Dimensions: 56.6mm (2.23") (L) x 12.8mm (0.5") (H) x 13.7mm (0.54") (W)
    • Weight: 0.02KG (0.05lbs)
    • Certification: RoHS6
