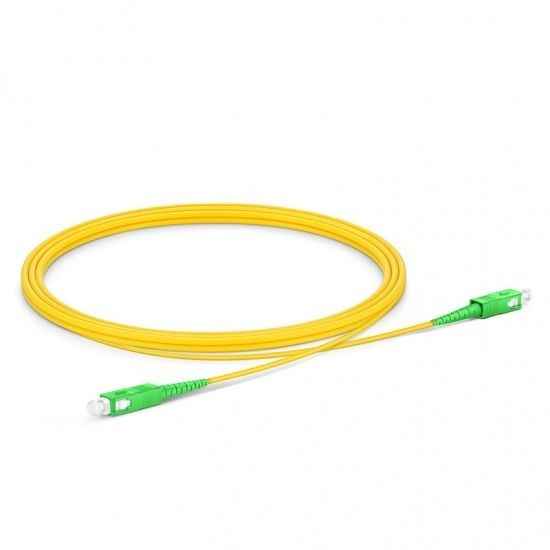

    Maxxwave Fiber Optic Patch Cable 9/125 Single Mode Fiber Patch Cable SC/APC - SC/APC 2M

    MW-SMFPC-APC-APC-2 by Maxxwave
    Sold out
    $21.95 - $21.95
    $21.95
    $21.95 - $21.95
    $21.95
    Extend Product Protection

    Maxxwave Fiber Optic Patch Cable 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.


    Product Features
    · A cost effective solution that provides higher bandwidth and support for longer distances
    · Perfect for use in Gigabit Ethernet applications
    · Headroom for tomorrow's higher bandwidth needs


    Product Specifications
    · Cable Type: Fiber Optic Single Mode
    · Cable Length: 1m (3.28')
    · Cable Connector A: SC/APC
    · Cable Connector B: SC/APC
    · Fiber Size: 9/125 micron
    · Cable Jacket Material: PVC
    · Cable Color: Yellow
    • Insertion Loss: ≤0.3dB
    • Return Loss: ≥60dB
    • Attenuation at 1310 nm: 0.36 dB/km
    • Attenuation at 1550 nm: 0.22 dB/km
    • Fiber Count: Simplex
    • Cable Diameter: 2.0mm
    • Polarity: A(Tx) to B(Rx)
    • Operating Temperature: -4°F - 158°F (-20°C - 70°C)
    • Storage Temperature: -40°F - 176°F (-40°C - 80°C)
