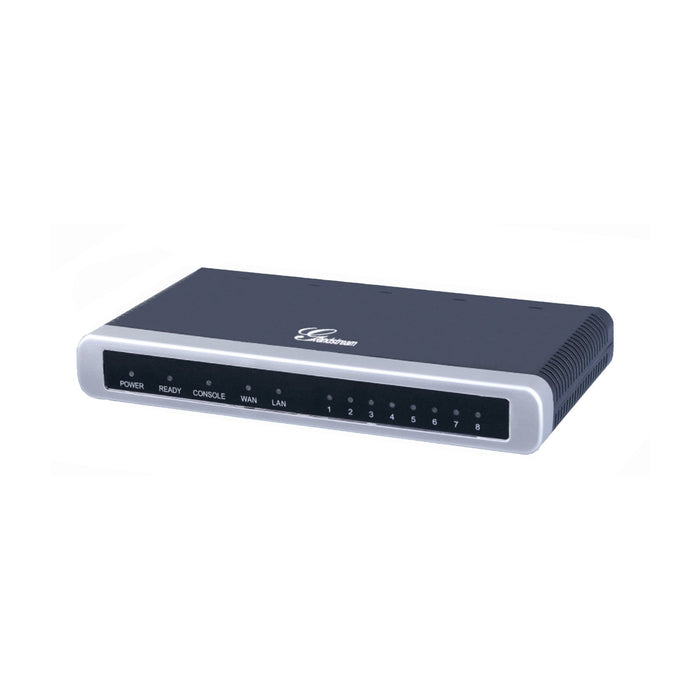

Grandstream GXW4104 4-FXO Port VoIP Gateway with Dual 10/100

The GXW FXO IP Analog Gateway series offers the small enterprise, SOHO, remote offices and multi-location enterprises a cost-effective, easy to deploy VoIP FXO solution. The GXW4104 allows any business to seamlessly connect multiple locations with 4 PSTN lines, to an IP PBX system, or with an existing traditional phone system.

Product Features:

• 4 FXO port media gateways
• External power supply
• Two RJ-45 ports 10/100 Mbps (switched or routed)
• TFTP and HTTP firmware upgrade support
• Multiple SIP accounts (choice of 3 profiles per account)
• Programmable PSTN line settings for different countries/regions
• 1 or 2 stage dialing
• Caller ID
• G.168 - echo cancellation
• Flexible DTMF transmission: In Audio, RFC2833, SIP Info or any combination of the 3
• Selectable, multiple LBR coders per channel
• T.38 Fax compliant

• FXO Ports: 4
• Ethernet Ports: 2 RJ45 10/100Mbps (LAN/WAN)
• Video Input: Yes - supports H.264 video codec (up to 30fps and CIF resolution, Hardware Version below 2.0 only)
• Audio Codecs: G711u/a, G723, G729 and GSM, and T.38 compliant
• Configuration: Web based, and remote TFTP/HTTP
• Power Input: 12 Vdc, 1.25Amp
• Compliance: FCC, CE

(1) GXW4104 Unit

(1) Ethernet Cable

(1) 12V Universal Power Adapter

(1) Quick Start Guide
