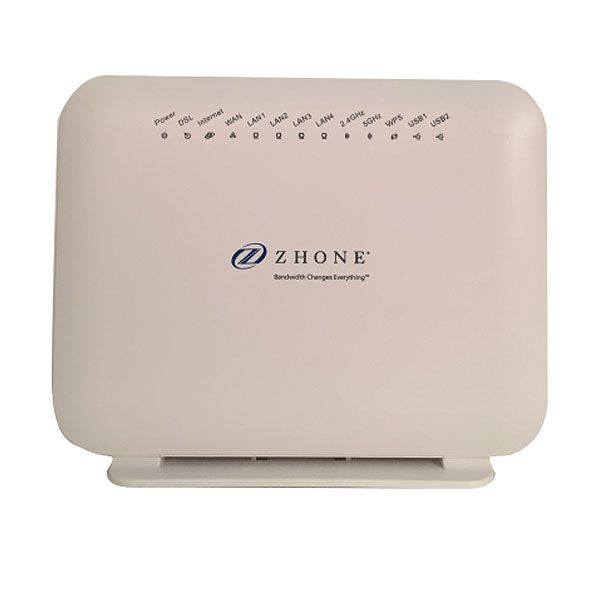

    DZS VDSL2/ADSL2+ 4-Port 2.4/5GHz 802.11ac Gateway

    6768-W1-NA by DZS
    Sold out
    $340.00 - $340.00
    $340.00
    $340.00 - $340.00
    $340.00
    Extend Product Protection

    This product has a lead time of 4-7 business days


    DZS 6768-W1 VDSL2/ADSL2+ 4-Port 2.4/5GHz 802.11ac gateway is a versatile Broadband gateway for service providers that are seeking a single hardware that can support ultra-high bandwidth applications using VDSL2 technology Gigabit Ethernet for FTTx. Using VDSL2 mode, the 6768-W1 series can support downstream connection rate at 100Mbps and 50Mpbs upstream for triple play applications, or just double the bandwidth for existing ADSL2+ customers. 6768-W1 is the newer model of the 6700-W1 series of gateways designed for high-end triple-play-ready residential gateway with advanced router and bridge functions that supports multiple LAN interfaces.


    Product Features:
    • VDSL2 with Profiles 8a/b/c/d, 12 a/b, 17a or ADSL2+, ADSL
    • Supports falls back to ADSL2+ if VDSL2 training fails
    • G.Vector Friendly, G.INP
    • Integrated Gig-E Ethernet port for WAN uplink
    • Dual band IEEE 802.11b/g/n/ac WiFi with 2.4 GHz (2x2) and 5GHz (3x3) antennas
    • USB 2.0 Host For DLNA (File and Printer Sharing)
    • TR-069 and TR-104 ready
    Power
    • Input: 120- 240 VAC 50/60 Hz
    • Output: 12VDC 2.5A
    Interfaces
    • 1x RJ11 VDSL2/ADSL2+ (2 Pair)
    • 5 x RJ45 10/100/1000-Base-TX Ethernet LAN
    • 2 x USB Host 2.0
    • 1 x Reset Button
    • 2 x 2.4GHz built-in antennas
    • 3 x 5GHz Built-in antennas
    • 1 x ON/OFF Power Button
    • 2 x WiFi On/Off Button
    • 1 x WPS Button
    Wireless Support
    • IEEE 802.11b/g/n/ac
    • Frequency: 2.4GHz and 5 GHz
    • Antenna configuration: 2.4GHz 2x2, 5GHz 3x3
    • WiFi Power: 2.4GHz: 22.5dBm (~200mW) @ 40MHz; 24.5dBm (~300mW) @ 20MHz, 5GHz : 23dBm (~200mW) @ 80MHz; 26dBM (~400mW) @ 20MHz)
    • 4 SSIDs For each 2.4GHz and 5GHz Band
    • 128 Clients/2.4G; 80 Clients for 5G
    • External On/Off Button
    • WPS (Wireless Protected Setup) with button or pin
    • Supports 802.1x, WEP, WEP2, WPA; WPA2;
    • TKIP; AES; 802.11i
    • Hidden SSID
    • WDS Bridge
    • WMM for advance Quality of Service
    Management
    • Local Management via Web/HTTP
    • TR-069, TR-098 Remote Management
    • SNMP GETs, SETs and TRAPs for four groups in MIB-II
    • Embedded Syslog
    • Firmware upgrade using HTTP, FTP, TFTP, TR-069
    • Command line Interpreter (CLI)
    • Multiple admin/user access
    Operating Requirements
    • Operating Temperature: 0°C - 45°C
    • Storage Temperature: -20°C - 70°C
    • Relative Humidity: 5% - 95% (non-condensing)
    Product Includes:


    (1) 6768-W1 Wireless Gateway

    (1) Power Supply

    (1) User Guide
